Digitus Cooling Unit for 19" Installation, Geventileerd blind paneel, Zwart, 4 ventilator(en), 552 m³/uur, 1,8 m, Open

Ruim op voorraad

Fabrikant Digitus
MPN DN-19 FAN-4-HO-SW
EAN 4016032189909

Digitus Cooling Unit for 19" Installation Geventileerd blind paneel

- For installation into 483 mm (19") unit

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.
  • For installation into 483 mm (19") unit
  • 4 fans

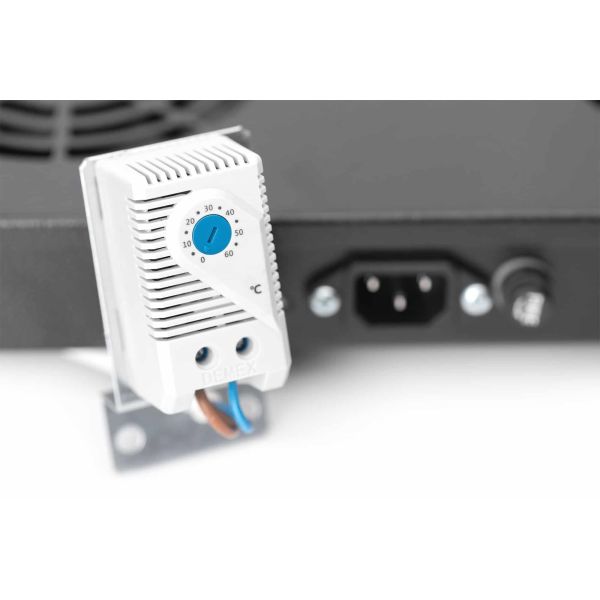

  • incl. thermostat, adjustable from 0 °C up to +70 °C

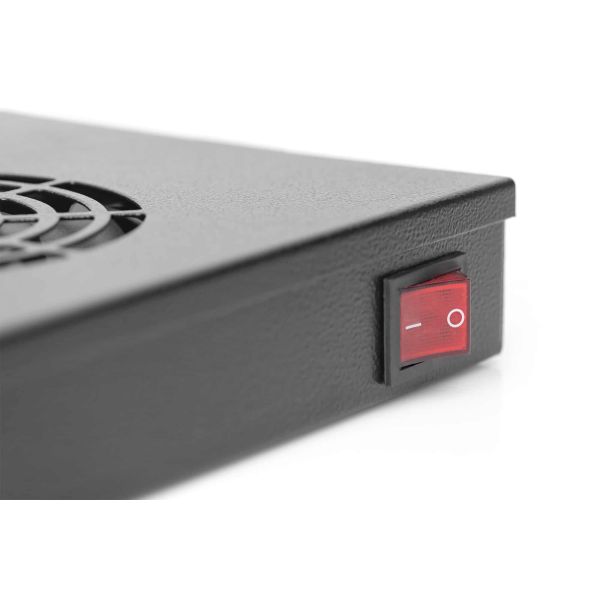

  • On/off switch
  • Air flow: 9.2 m³/min.
  • 1.8 m cable with CEE 7/7 (Type-F) plug

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
Geventileerd blind paneel
Kleur van het product*
Zwart
Ingebouwde ventilator
Ja
Aantal ventilatoren
4 ventilator(en)
Luchtstroom
552 m³/uur
Aan/uitschakelaar
Ja
Snoerlengte
1,8 m
Frame type
Open
Land van herkomst
Turkije

Energie

Stroombron
AC
Maximaal ingangsvermogen
13,8 W
AC-ingangsfrequentie
50 - 60 Hz
Spanning
220 - 240 V

Gewicht en omvang

Breedte
483 mm
Diepte
354 mm
Hoogte
45 mm

Verpakking

Breedte verpakking
510 mm
Diepte verpakking
385 mm
Verpakkingsvolume
11781 cm³
Gewicht verpakking
5,98 kg

Logistieke gegevens

Code UK-handelstarief
84145915
Code geharmoniseerd systeem (HS)
85389099
