Digitus DN-19 SRV-26U-B-G-1, Vrijstaande rek, 26U, 1000 kg, Zwart

Nog slechts 6 beschikbaar

Fabrikant Digitus
MPN DN-19 SRV-26U-B-G-1
EAN 4016032332497

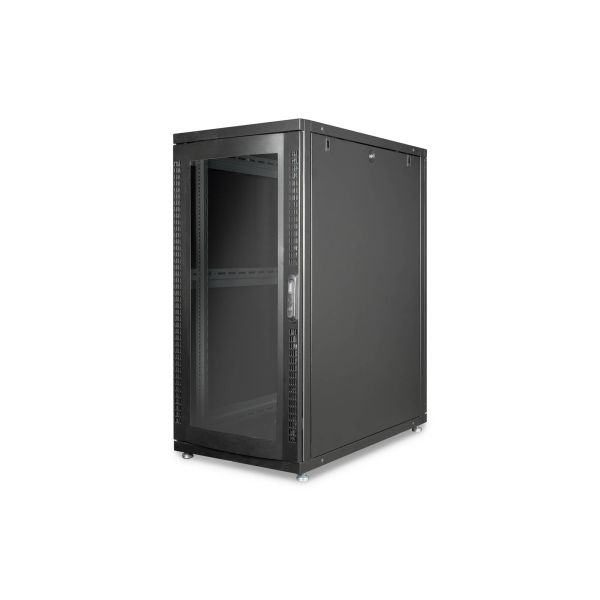

Digitus DN-19 SRV-26U-B-G-1 rack Vrijstaande rek Zwart

The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Special roof construction for fan unit, incl. perforated cover
- Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)
- Sliding cable entry with rubber sealing on the top and base

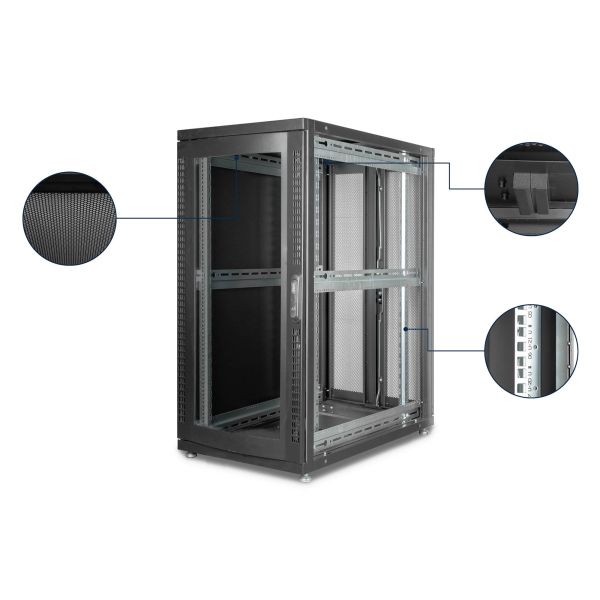

The server cabinets from the Unique series were developed for especially convenient and flexible network cabling. Inlets to the side in the roof and floor equipped with brushes (starting with a cabinet width of 800 mm), a sliding inlet with foam rubber seal as well as an additional rear brush inlet in the floor structure, enable versatile use in a wide range of application scenarios. Single perforated front doors and double perforated back doors, including swing handle with profile half-cylinder, ensure improved air circulation. The roof is equipped with a perforated cover for improved air circulation. This features a special design for easy mounting of a fan module. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth is adjustable and they are connected to additional depth bars in the cabinet. Each cabinet is made of up to 2.0 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Side walls and doors that can be locked or removed in a modular design (horizontally separated starting from 42 rack units) improve accessibility. The door hinges can be switched. Furthermore, the cabinets can be completely dismantled if necessary due to their collapsible design.
  • Safety class rating IP20

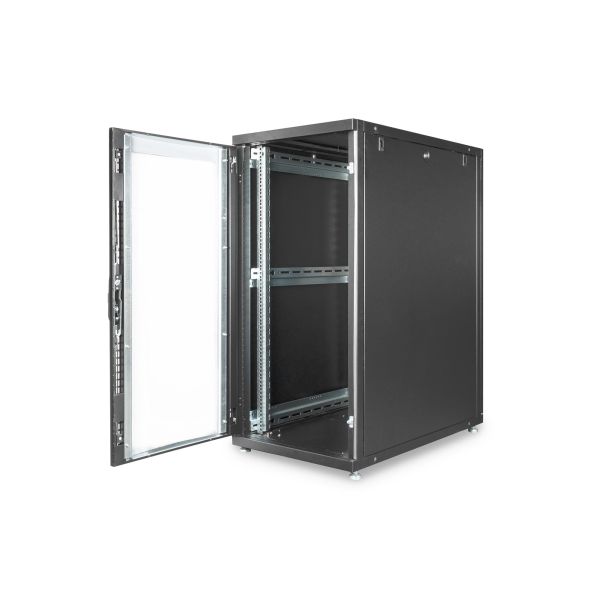

  • Single wing opening front door with perforated steel frame with plexi glass

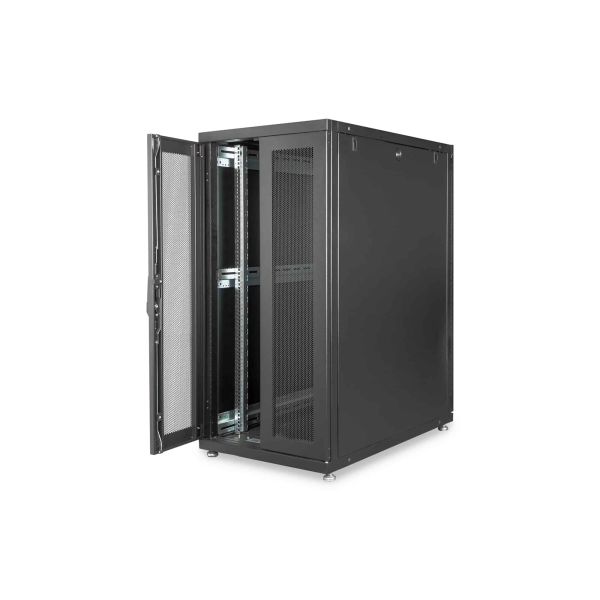

  • Double wing opening steel rear door with 70% perforation
  • Front door is curved to the outside in perforated resp. plexi glass area
  • Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)
  • 230° door opening angle on front- and rear doors
  • Front door with 4-point locking and rear door with 3-point locking
  • Side panels are lockable and removable
  • incl. 4 pieces of leveling feet and 4 pieces of castor, already pre-configured under the cabinet (front castor are lockable)
  • 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
  • 483 mm (19“) profile rails are adjustable in depth and with height unit marking
  • Built-in depth support bars for more stability
  • Sliding cable entry with rubber sealing on the top and base
  • Top and base with brushed cable entries left and right

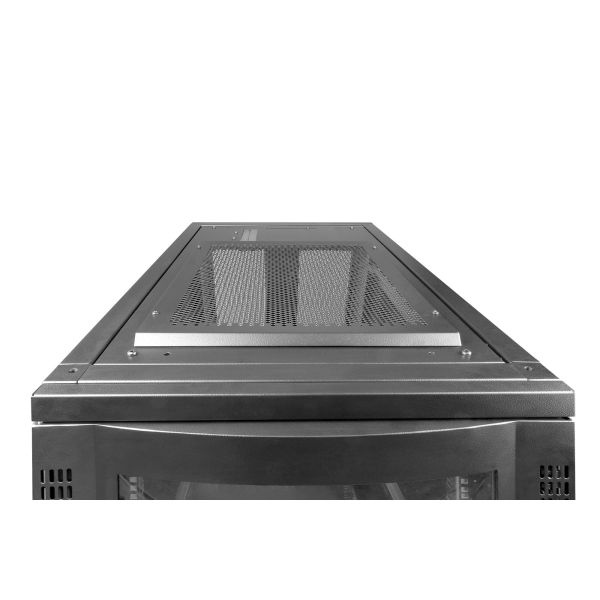

  • Special roof construction for fan unit, incl. perforated cover
  • Several earthing points for rack components
  • Incl. installation set (screws, cage nuts, washers)
  • Rack is completely mounted
  • Equipment mounting depth min.-max.: 675-875 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
26U
Soort*
Vrijstaande rek
Maximale gewichtscapaciteit*
1000 kg
Kleur van het product
Zwart
Materiaal
Glas, Staal
Achterdeurconstructie
Steel/Perforated
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Internationale veiligheidscode (IP)
IP20
Certificering
IP20

Gewicht en omvang

Maat
48,3 cm (19")
Breedte
600 mm
Diepte
1000 mm
Hoogte
1342 mm

Verpakking

Breedte verpakking
650 mm
Diepte verpakking
1050 mm
Hoogte verpakking
1400 mm
Verpakkingsvolume
914550 cm³
Gewicht verpakking
71 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
Turkije
Code geharmoniseerd systeem (HS)
85381000

Overige specificaties

Afmetingen (B x D x H)
600 x 1000 x 1342 mm
Afmetingen verpakking (BxDxH)
680 x 1080 x 1400 mm
Lengte van de verpakking
108 cm
