Digitus DN-19 WM-FLSH-127 rack 2U Wandrek Grijs

Digitus DN-19 WM-FLSH-127, Wandrek, 2U, 100 kg, Sleutelsleuf, Grijs

Niet op voorraad

Fabrikant Digitus
MPN DN-19 WM-FLSH-127
EAN 4016032383208
€ 235,00 excl. BTW

Digitus DN-19 WM-FLSH-127 rack 2U Wandrek Grijs

Slim design with swing-out front door

- Slim design which is perfect for small home automations
- 2U usable space inside
- Front door with swing-out function

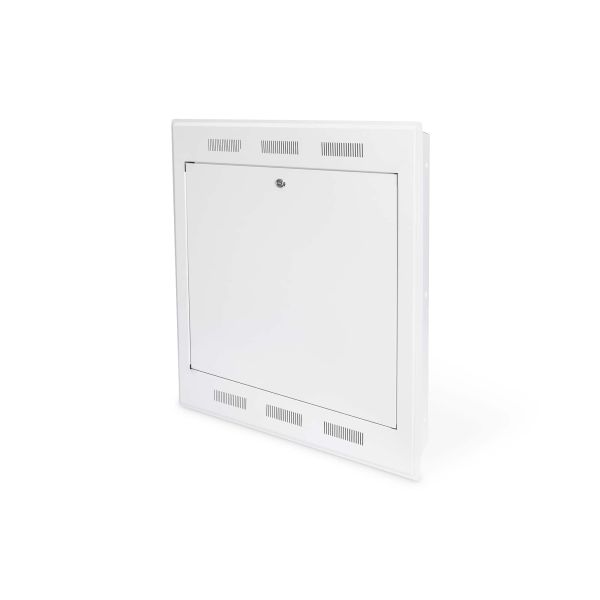

The flush- & surface mount Wall Mounting Cabinets allow a vertical, secure mounting for example for small sound equipments, networks, DVR, paging- and patching applications. The front door is able to swing-out. The Wall Mounting Cabinets are available in two different versions: With 2U or 4U possibilities for rack mounting.
  • 1.0 - 1.5 mm strong steel sheet
  • 2U usable space inside
  • Pre-punched cable entry in the middle of the rear side (216x216 mm)
  • Punched out cable entries with plastic cover on the rear side, as well as top and bottom (145x70 mm)
  • Lockable front door with air ventilation units

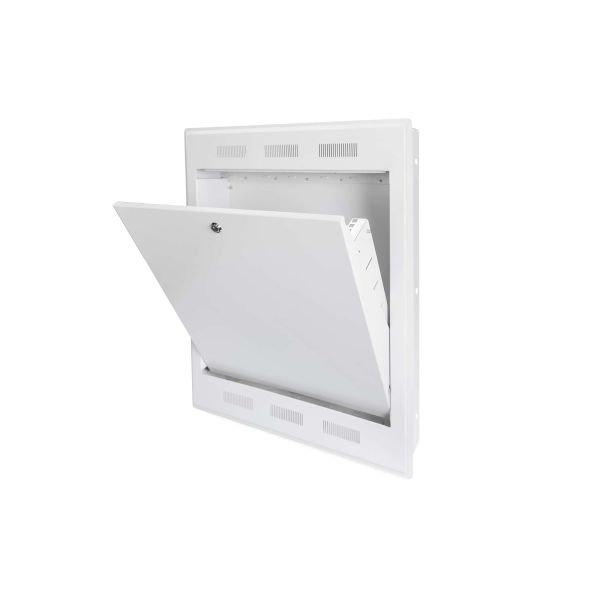

  • Front door is able to swing-out and is equipped with two stop functions (first stop at 25°, second stop at 115°)
  • Several cable fixing points for a neat cable management
  • Dimensions inner area (HxWxD): 750x600x116 mm
  • Max. equipment mounting height inside: 402 mm
  • Cabinet depth for flush wall mounting: 117 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
2U
Soort*
Wandrek
Maximale gewichtscapaciteit*
100 kg
Kleur van het product
Grijs
Materiaal
Staal
Voordeurconstructie
Staal
Inbegrepen zijpanelen
Ja
Sleutelsleuf
Ja
Voordeur met sleutelvergrendeling
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Maat
48,3 cm (19")
Breedte
628 mm

Gewicht en omvang

Diepte
127 mm
Hoogte
778 mm

Verpakking

Breedte verpakking
638 mm
Diepte verpakking
137 mm
Hoogte verpakking
778 mm
Verpakkingsvolume
68875,9 cm³
Gewicht verpakking
17 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
Turkije
Code geharmoniseerd systeem (HS)
85381000
