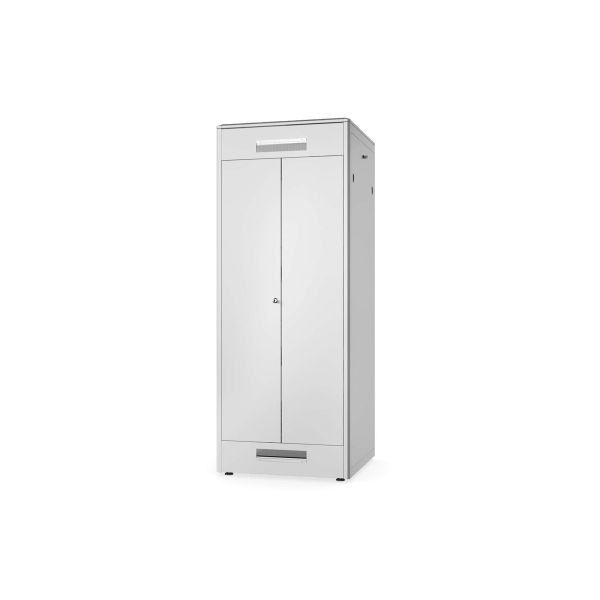

Digitus DN-31114, Vrijstaande rek, 42U, 800 kg, Sleutelsleuf, Rekrails, Verstelbare voeten

Niet op voorraad

Fabrikant Digitus
MPN DN-31114
EAN 4016032476344

Digitus DN-31114 rack 42U Vrijstaande rek Grijs

The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Special roof construction for fan unit with added lid which can be unmounted
- Sliding cable entry with rubber sealing on the base
- Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)

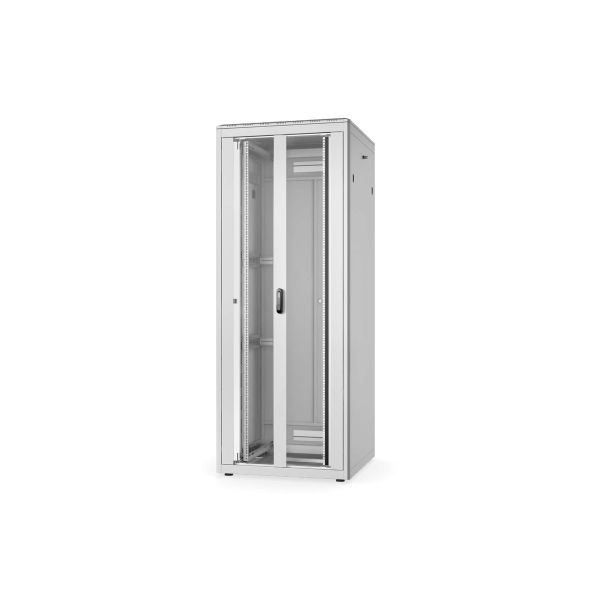

- Double folding glass front door for streamlined access
- Rack is completely mounted

The Network Racks of the Unique Series were designed for the user friendly installation of active- and passive network components accompanied by a neat cable management. Each rack consists of up to 1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction due to special plate curving technique. The color is created by powder coating in grey (RAL 7035) and black (RAL 9005). For certain conditions, where the set-up location is difficult to reach, the rack can be disassembled. Doors can be easily detached and the door stop can be changed from right to left. The roof is present with an added lid which contains air ventilation slots for a better air circulation. Furthermore the roof is ready for the mounting of an air ventilation unit. Each network rack contains 2 pairs (4 pieces) of 483 mm (19”) profile rails inside which are galvanized and with height unit marking (countable from both directions). They are variable in depth and connected with additional depth support bars to realize extensive 483 mm (19”) equipment installations. An important aspect for each installation is the cable management. The base of each rack is equipped with a sliding cable entry panel with rubber sealing. Racks from 26U are equipped with two cable entries with brush strips on the rear side above- and underneath the door. For cabinets with 800 mm width, the possibilities of cable management get enhanced with additional cable entries with brushes left and right in the top and base chassis. Furthermore there are mounted vertical cable ducts with shutter left and right to the 483 mm (19”) profile rails in the front (on cabinets from 800 mm width). An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.
  • - Çift kanatlı cam ön kapak
  • - Ön kapakta döner kollu sap bulunan kilitleme sistemi (yarı profilli silindirler için yuva olarak hazırlanmıştır)
  • - Yuvarlak kilitli çelik arka kapak, çift kanatlı
  • - Ön tarafta yatay kablo kılavuz kanalları
  • - Tüm kapılarda 1 noktalı kilitleme mekanizması
  • - Ön ve arka kapaklar 120° açılma açısına sahiptir
  • - Yan paneller kilitlenebilir ve çıkarılabilir
  • - Kabinin altına daha önce takılmış 4 adet ayar ayağı da dahildir

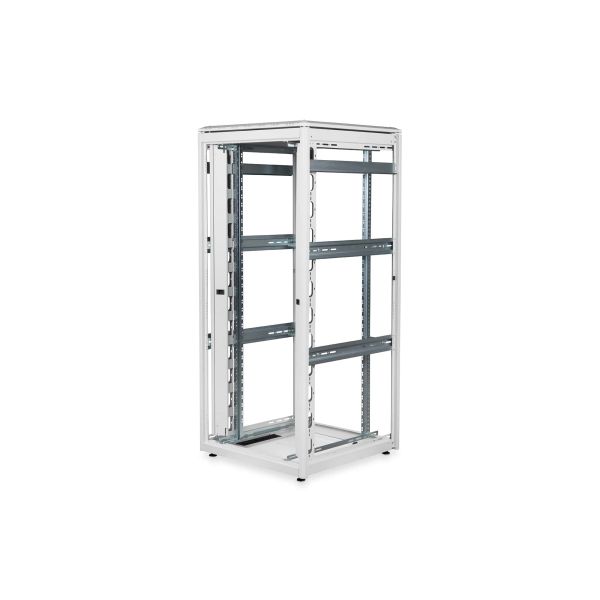

  • - Kabinin ön ve arka iç tarafında monte edilmiş 483 mm (19“) profil rayları, galvanize
  • - 483 mm (19“) profil rayları ünite derinlik ve yükseklik işaretleriyle ayarlanabilir
  • - Monte edilmiş olan derinlik kirişleri sağlamlığı arttırır
  • - Tabanda kauçuk contayla kayar kablo girişi
  • - Tavan, fan birimi takmak için hazırlanmıştır
  • - Monte edilecek komponentler için kabin içerisinde çeşitli topraklama noktaları
  • - Bileşenler için min.-maks. montaj derinliği: 563-743 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
42U
Soort*
Vrijstaande rek
Maximale gewichtscapaciteit*
800 kg
Kleur van het product
Grijs
Materiaal
Glas, Staal
Achterdeurconstructie
Staal
Voordeurconstructie
Glas
Zijpaneelconstructie
Staal
Verwijderbare zijpanelen
Ja
Inbegrepen zijpanelen
Ja
Sleutelsleuf
Ja
Sleutelvergrendeling achterdeur
Ja
Voordeur met sleutelvergrendeling
Ja
Zijpaneel met sleutelvergrendeling
Ja
Rekrails
Ja
Verstelbare montagerails
Ja
Verstelbare diepte
Ja
Verstelbare voeten
Ja
Verbeterd kabelbeheer
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Breedte
800 mm
Diepte
800 mm
Hoogte
2053 mm
Gewicht
159,3 kg
Inbouwdiepte (min)
56,3 cm
Inbouwdiepte (max)
74,3 cm

Verpakking

Moeren inbegrepen
Ja
Moeren aantal
36
Inclusief schroeven
Ja
Aantal schroeven
36
Breedte verpakking
850 mm
Diepte verpakking
850 mm
Hoogte verpakking
2103 mm
Verpakkingsvolume
1519420 cm³
Gewicht verpakking
162,3 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
Turkije
Code geharmoniseerd systeem (HS)
85381000
