Digitus DN-31131, Vrijstaande rek, 42U, 800 kg, Sleutelsleuf, Rekrails, Verstelbare voeten

Niet op voorraad

Fabrikant Digitus
MPN DN-31131
EAN 4016032476818

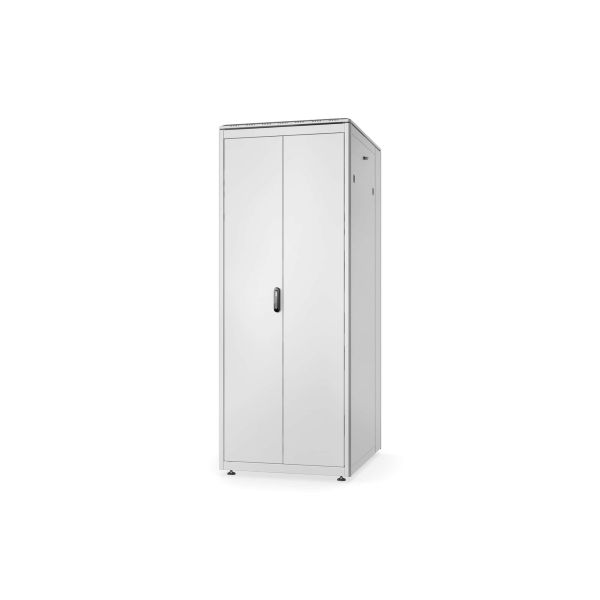

Digitus DN-31131 rack 42U Vrijstaande rek Grijs

The DIGITUS® Professional Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Special roof construction for fan unit with added lid which can be unmounted
- Sliding cable entry with rubber sealing on the base
- Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
- Closed steel front door offers viewing protection from components to be installed
- Rack is completely mounted

The Network Racks of the Unique Series were designed for the user friendly installation of active- and passive network components accompanied by a neat cable management. Each rack consists of up to 1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction due to special plate curving technique. The color is created by powder coating in grey (RAL 7035) and black (RAL 9005). For certain conditions, where the set-up location is difficult to reach, the rack can be disassembled. Doors can be easily detached and the door stop can be changed from right to left. The roof is present with an added lid which contains air ventilation slots for a better air circulation. Furthermore the roof is ready for the mounting of an air ventilation unit. Each network rack contains 2 pairs (4 pieces) of 483 mm (19”) profile rails inside which are galvanized and with height unit marking (countable from both directions). They are variable in depth and connected with additional depth support bars to realize extensive 483 mm (19”) equipment installations. An important aspect for each installation is the cable management. The base of each rack is equipped with a sliding cable entry panel with rubber sealing. Racks from 26U are equipped with two cable entries with brush strips on the rear side above- and underneath the door. For cabinets with 800 mm width, the possibilities of cable management get enhanced with additional cable entries with brushes left and right in the top and base chassis. Furthermore there are mounted vertical cable ducts with shutter left and right to the 483 mm (19”) profile rails in the front (on cabinets from 800 mm width). An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.
  • Steel front door, double folding
  • Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
  • Steer rear door with a round lock, double folding
  • Cable entry with brush strip at the top and bottom of the cabinet rear side
  • 1-point-locking-mechanism on all doors
  • 120° door opening angle on front- and rear doors
  • Side panels are lockable and removable
  • incl. 4 pieces of leveling feet already pre-configured under the rack

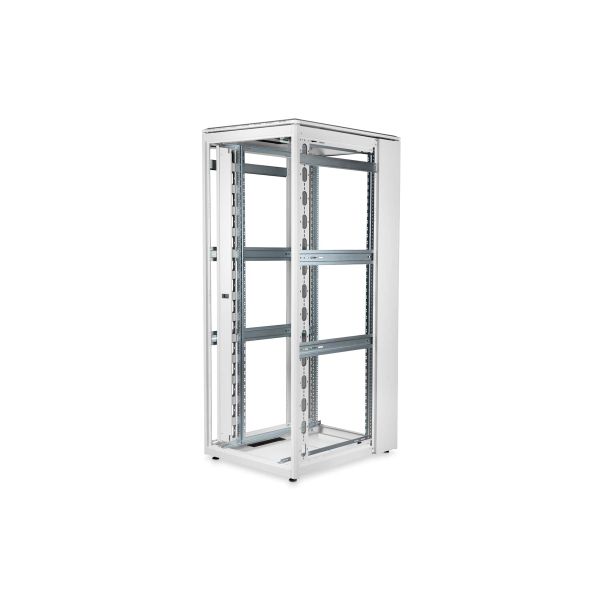

  • 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
  • 483 mm (19“) profile rails are adjustable in depth and with height unit marking
  • Built-in depth support bars for more stability
  • Sliding cable entry with rubber sealing on the base
  • Special roof construction for fan unit with added lid which can be unmounted
  • Several earthing points for rack components
  • Equipment mounting depth min.-max.: 688-943 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
42U
Soort*
Vrijstaande rek
Maximale gewichtscapaciteit*
800 kg
Kleur van het product
Grijs
Materiaal
Staal
Achterdeurconstructie
Staal
Voordeurconstructie
Staal
Zijpaneelconstructie
Staal
Verwijderbare zijpanelen
Ja
Inbegrepen zijpanelen
Ja
Sleutelsleuf
Ja
Sleutelvergrendeling achterdeur
Ja
Voordeur met sleutelvergrendeling
Ja
Zijpaneel met sleutelvergrendeling
Ja
Rekrails
Ja
Verstelbare montagerails
Ja
Verstelbare diepte
Nee
Verstelbare voeten
Ja
Verbeterd kabelbeheer
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Breedte
800 mm
Diepte
1000 mm
Hoogte
2053 mm
Gewicht
148,8 kg
Inbouwdiepte (min)
68,8 cm
Inbouwdiepte (max)
94,3 cm

Verpakking

Moeren inbegrepen
Ja
Moeren aantal
36
Inclusief schroeven
Ja
Aantal schroeven
36
Breedte verpakking
1050 mm
Diepte verpakking
850 mm
Hoogte verpakking
2103 mm
Verpakkingsvolume
1876930 cm³
Gewicht verpakking
152 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
Turkije
Code geharmoniseerd systeem (HS)
85381000
