Digitus DN-651108 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart

Digitus DN-651108, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Digitus
MPN DN-651108
EAN 4016032454489
€ 120,00 excl. BTW

Digitus DN-651108 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart

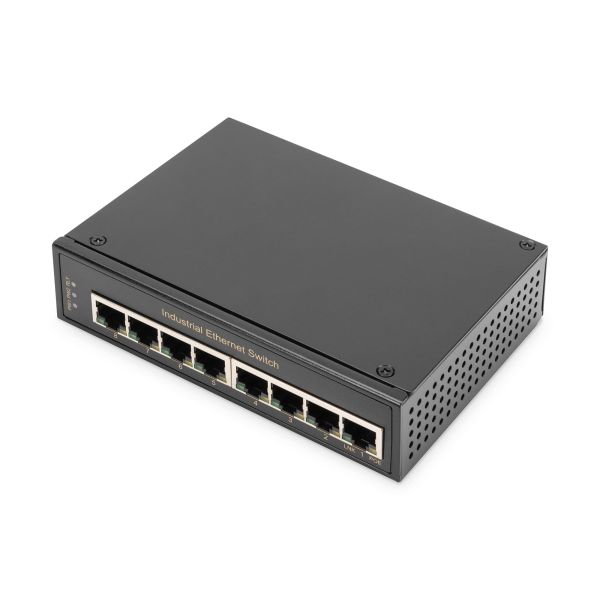

- Industrial 8-Port Gigabit Switch
- 8 x 10/100/1000Base-TX Ethernet Ports
- Extended operating temperature range, -40 °C ~ +85 °C

The DIGITUS® Industrial Gigabit Switch is designed for harsh environments, where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.

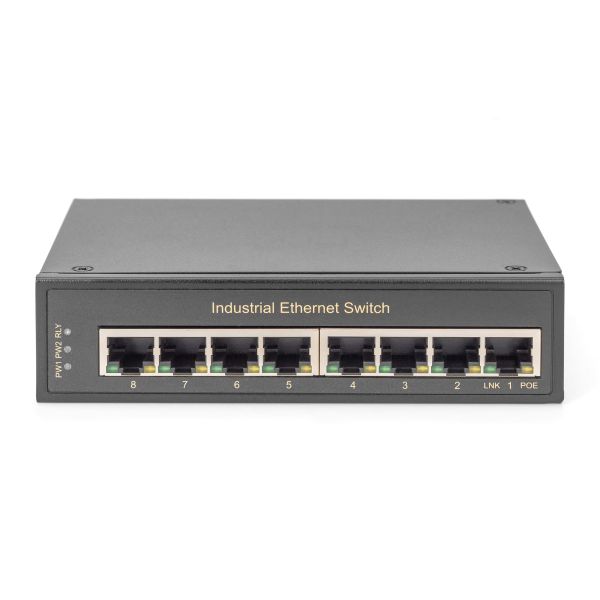

  • 8 x 10/100/1000Base-TX Ethernet Ports
  • Automatic cable detection - Auto MDI / MDI-X function
  • Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab Gigabit Ethernet
  • IEEE802.3x Flow Control und Back Pressure
  • Store and forward technology for optimized data transfer
  • Automatic speed and half/full duplex recognition/adjustment
  • Backplane with 16Gbps
  • Supports up to 8K MAC addresses

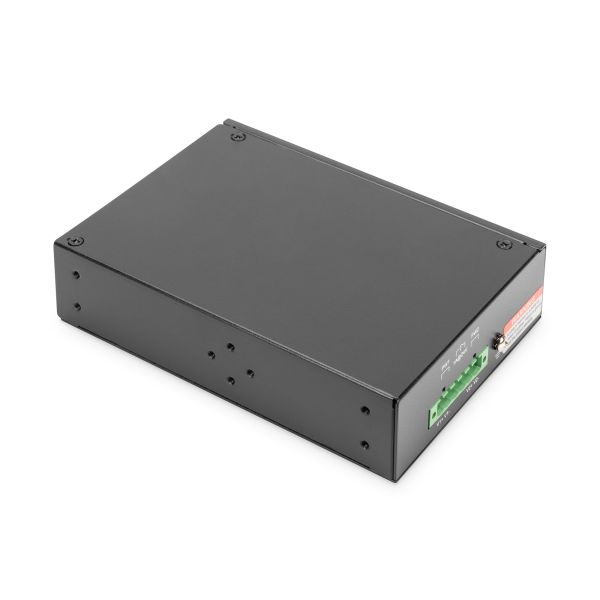

  • Compact, robust metal housing
  • Excellent short circuit protection
  • Lightning and overvoltage protection
  • Suitable for DIN rail (top-hat rail) mounting

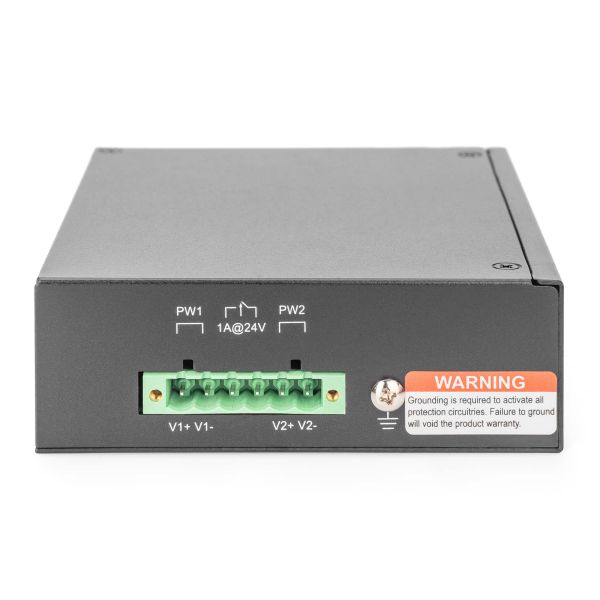

  • Redundant power supply: 12~56 V DC, redundant power supply with reverse polarity protection function
  • Extended operating temperature range, -40 °C ~ +85 °C
  • Removable terminal connection
  • Power consumption: 5 W
  • MTBF: 500,000 hrs.
  • EN 50155 (EN 60068-2-6) Vibration
  • EN 50155 (EN 60068-2-27) Shock
  • EN 50155 (EN 60068-2-32) Free Fall

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-TX
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
8000 entries
Store-and-forward
Ja

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
Taiwan
Certificering
EN 50155

Prestatie

Plug and play
Ja
Mean time between failures (MTBF)
500000 uur

Energie

Redundante voeding
Ja
DC voltage input
12 - 56 V

Energie

Stroomverbruik (typisch)
5 W
Stroomspanning bescherming
Overspanning, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 85 °C

Gewicht en omvang

Breedte
36,2 mm
Diepte
105 mm
Hoogte
142 mm
Gewicht
520 g

Verpakking

Snelstartgids
Ja
Klemmenblok inclusief
Ja
Breedte verpakking
65 mm
Diepte verpakking
165 mm
Hoogte verpakking
215 mm
Verpakkingsvolume
2305,88 cm³
Gewicht verpakking
787,5 g

Logistieke gegevens

Code UK-handelstarief
85176200
(Buitenste) hoofdverpakking breedte
240 mm
(Buitenste) hoofdverpakking lengte
350 mm
(Buitenste) hoofdverpakking hoogte
560 mm
Code geharmoniseerd systeem (HS)
85176990
(Buitenste) hoofdverpakking brutogewicht
12,6 kg
(Buitenste) hoofdverpakking inhoud
47040 cm³
Hoeveelheid per (buitenste) hoofdverpakking
16 stuk(s)

Overige specificaties

Ethernet interface type
Gigabit Ethernet
