Digitus DN-651110 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Digitus DN-651110, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Nog slechts 4 beschikbaar

Fabrikant Digitus
MPN DN-651110
EAN 4016032457930
€ 119,00 excl. BTW

Digitus DN-651110 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

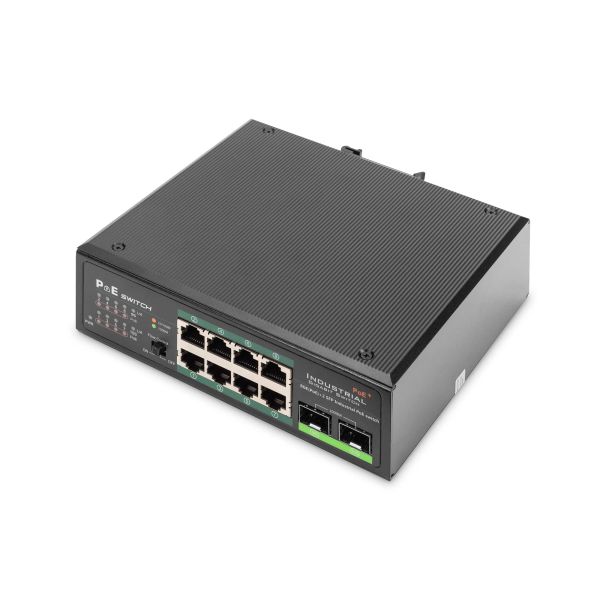

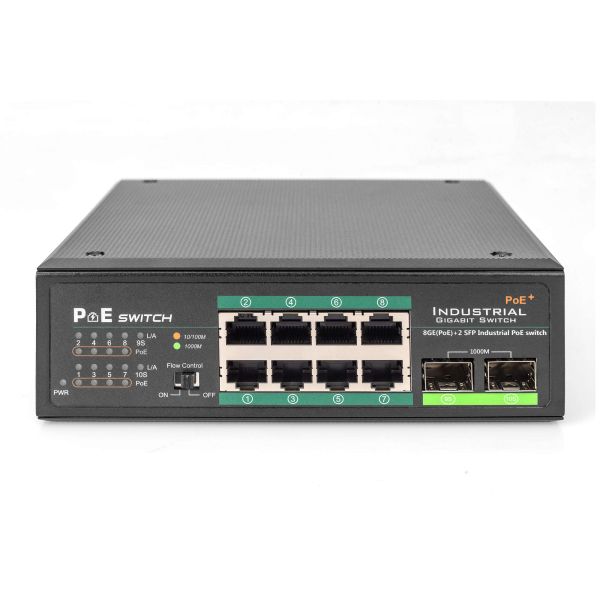

Rugged and durable industrial solutions with integrated Power over Ethernet (PoE) function

- 8x 10/100/1000Base-TX Ethernet PoE ports
- 2x 1000Base-X SFP uplink ports
- DIN rail mounting possible

The DIGITUS® industrial Gigabit PoE switch is intended for harsh environments where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40 °C to 75 °C, the industrial Gigabit PoE switch can be used under the most adverse conditions. The PoE capable devices can be powered via the PoE ports with IEEE802.3af/at support with up to 30 W per port. A constant availability in the highly sensitive areas such as transport, production, traffic and security surveillance is ensured. The simple plug-and-play system allows a fast integration of the industrial Gigabit PoE switch into the respective environment. With Gigabit connectivity and SFP uplink ports, the industrial Gigabit PoE switch provides a flexible, cost-effective solution for the industrial environment.
  • 8x 10/100/1000Base-TX Ethernet PoE ports
  • 2x 1000Base-X SFP uplink ports
  • Supports IEEE802.3af/at
  • Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
  • Backplane 20G
  • MAC address memory 4K
  • Compact, sturdy metal enclosure
  • Excellent short-circuit protection
  • Lightning protection and overvoltage protection

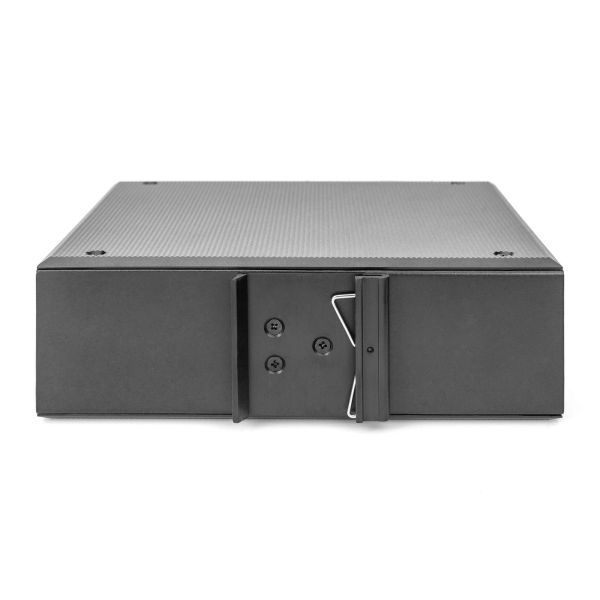

  • Suitable for DIN rail (top-hat rail) mounting

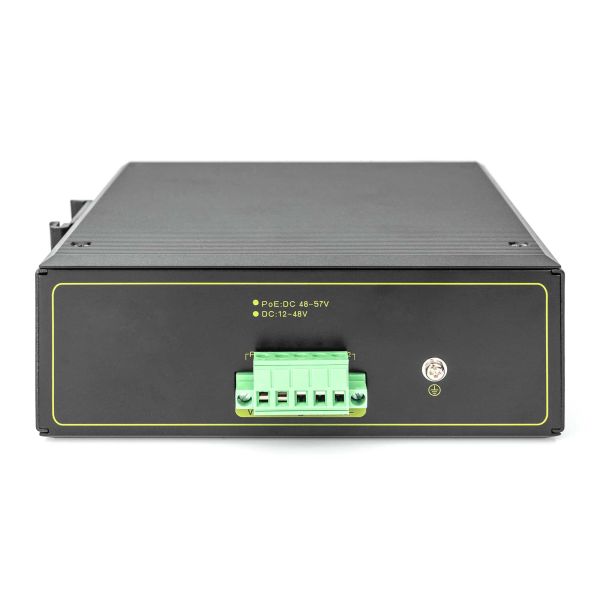

  • Redundant power supply: 48-57 V/DC, redundant power supply with polarity reversal protection function
  • Extended operating temperature range, -40 °C ~ +75 °C
  • Removable terminal connection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.3at
10G support*
Nee
VLAN=ondersteuning
Nee

Data-uitwisseling

MAC-adrestabel*
4000 entries

Design

Rack-montage*
Nee
Kleur van het product
Zwart
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Energie

DC voltage input
48 - 57 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
120 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Verpakking

Snelstartgids
Ja
Breedte verpakking
231 mm
Diepte verpakking
186 mm
Verpakkingsvolume
3609,14 cm³
Gewicht verpakking
1,12 kg

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
