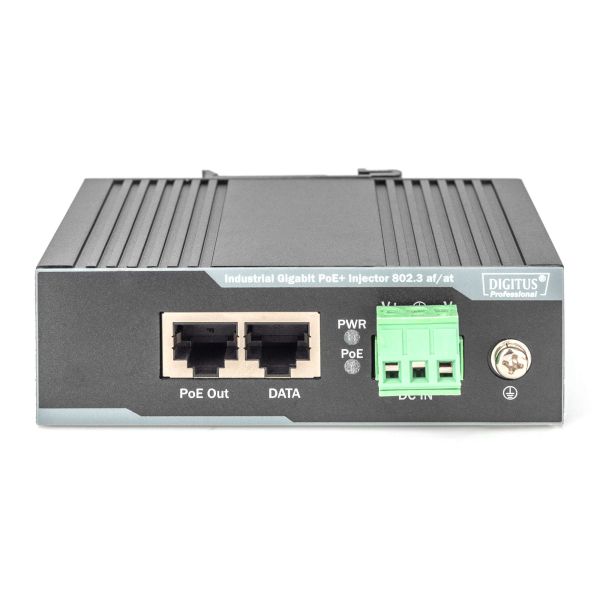

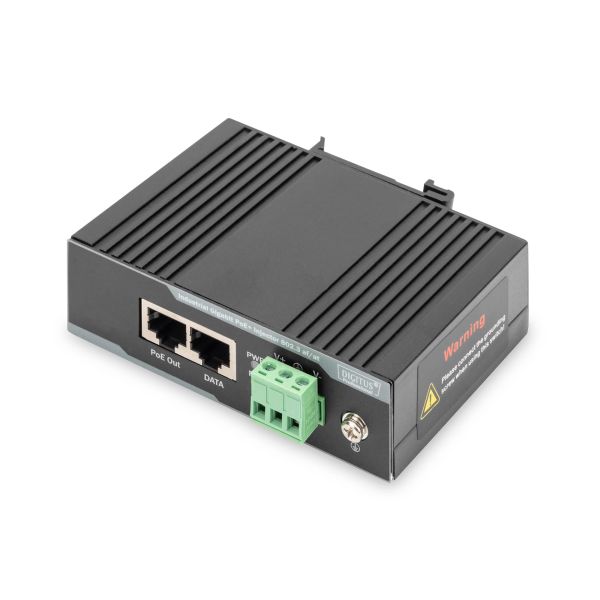

Digitus DN-651112 PoE adapter & injector Gigabit Ethernet 55 V

Digitus DN-651112, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3at, Zwart, Power over Ethernet (PoE), Stroom, Overspanning, Kortsluiting

Ruim op voorraad

Fabrikant Digitus
MPN DN-651112
EAN 4016032445845
€ 214,00 excl. BTW

Digitus DN-651112 PoE adapter & injector Gigabit Ethernet 55 V

High Power output with 60 watts

- Industrial Gigabit PoE+ Injector 802.3 af/at
- Meets the 802.3af/at PoE standard
- 48~55V output voltage, 60W

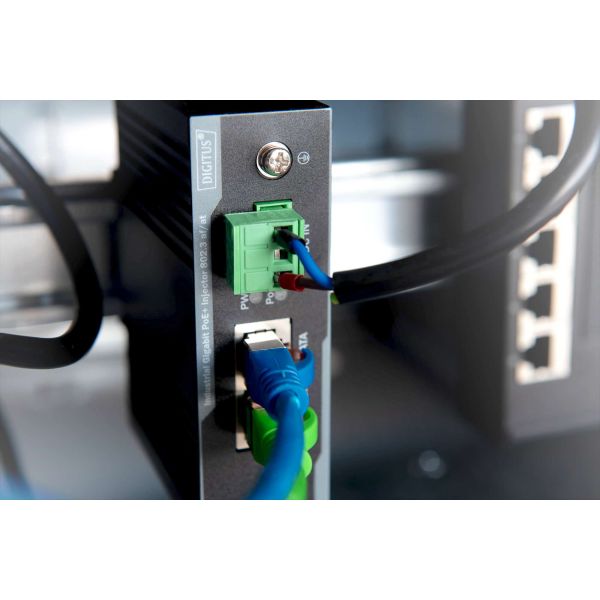

The Digitus PoE Injector allows you to minimize cabling during installation of PoE-ready devices such as IP network cameras. Data supply and power supply to the devices is accomplished using a single Ethernet cable. This makes laying a separate power cable unnecessary and allows you to extend your network to places where there are no outlets or power cables. The Injector is fully compliant with the IEEE802.3at Ultra PoE standard and delivers an output power of 60 W.
  • Meets the 802.3af/at PoE standard
  • 45~56 volt output voltage, 60 watts
  • RJ45 LAN input
  • LAN (RJ45) output, power supply via pin: 4/5(+), 7/8(-) and 3/6(+), 1/2(-)
  • Cable connection: 10/100/1000 Mbps
  • The output has a current limit, a short-circuit protection and an automatic terminal device detection and classification
  • Power consumption: 3W max.
  • Operating temperature: -40°C - 75°C
  • Less than 0.3W idle consumption

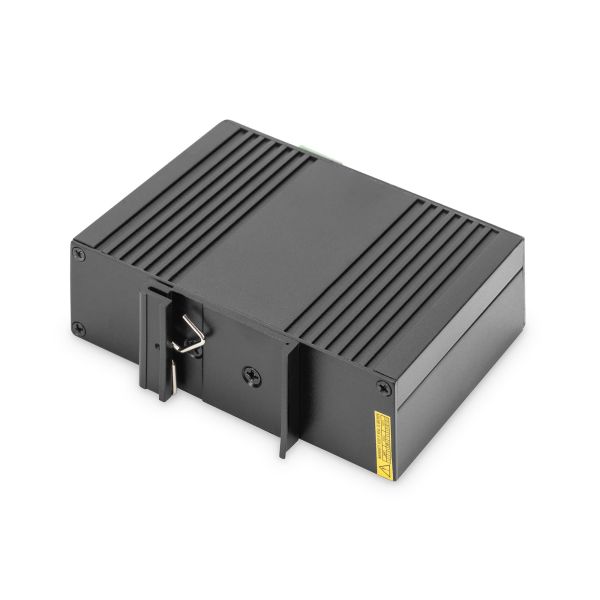

  • Compact, robust metal housing
  • Excellent short circuit protection
  • Lightning and overvoltage protection

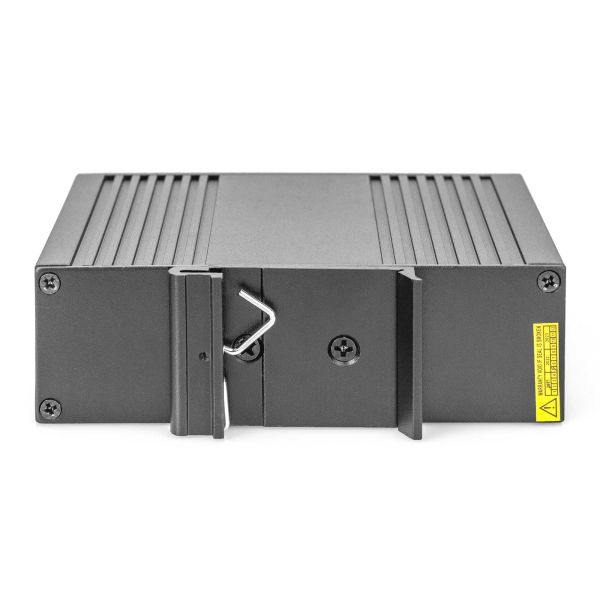

  • DIN rail (top hat rail) and wall mounting possible

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3at

Kenmerken

Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
LED-indicatoren
Power over Ethernet (PoE), Stroom
Stroomspanning bescherming
Overspanning, Kortsluiting
Land van herkomst
China

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
2
Aansluiting voor netstroomadapter
Ja

Energie

Stroom via Ethernet (PoE)*
55 V
Uitgangsvermogen
60 W
Vermogensverbruik (max)
3 W
Totaal Power over Ethernet (PoE)-budget
60 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Gewicht
300 g
Afmetingen (B x D x H)
77 x 103 x 32 mm

Verpakking

Breedte verpakking
125 mm
Diepte verpakking
165 mm
Hoogte verpakking
50 mm
Gewicht verpakking
410 g
Verpakkingsvolume
1031,25 cm³

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85044095
(Buitenste) hoofdverpakking breedte
350 mm
(Buitenste) hoofdverpakking hoogte
330 mm
(Buitenste) hoofdverpakking brutogewicht
390 g
(Buitenste) hoofdverpakking inhoud
45045 cm³
Hoeveelheid per (buitenste) hoofdverpakking
36 stuk(s)
