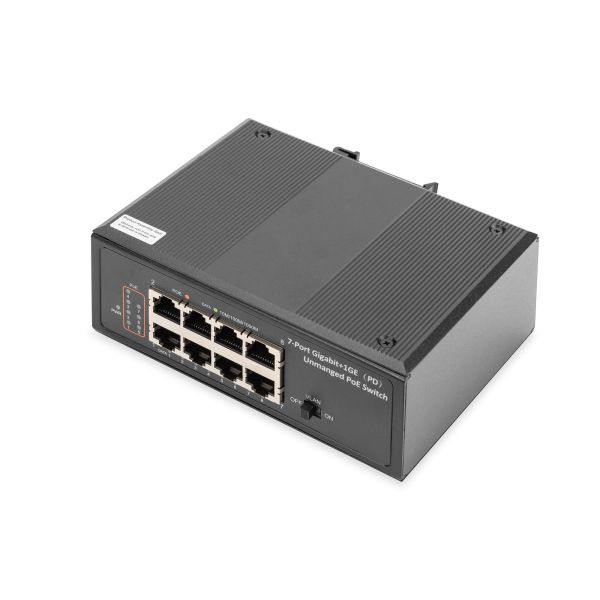

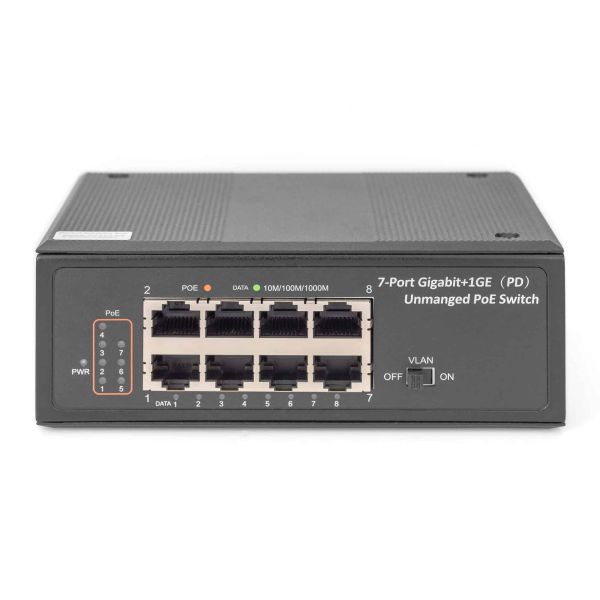

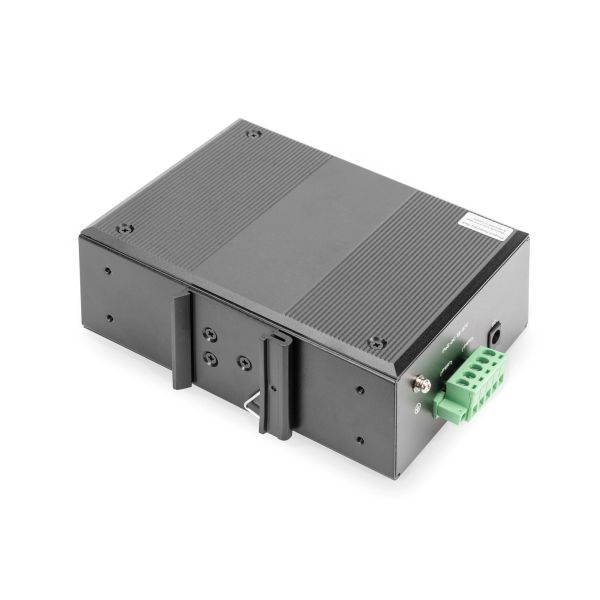

Digitus DN-651113 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Digitus DN-651113, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

14 op voorraad (nu besteld = vandaag verzonden)

Fabrikant Digitus
MPN DN-651113
EAN 4016032457947
€ 91,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
Rugged and durable industrial solutions with integrated Power over Ethernet (PoE) function

- 7x 10/100/1000Base-TX Ethernet PoE ports
- 1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port
- DIN rail mounting possible

The DIGITUS® industrial Gigabit PoE switch is intended for harsh environments where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -20°C to +70°C, the industrial Gigabit PoE switch can be used under the most adverse conditions. The PoE capable devices can be powered via the PoE ports with IEEE802.3af/at support with up to 30 W per port. The switch can be powered via PoE using the PD (Power Delivery) port. This eliminates the need to connect a power supply to the switch. A constant availability in the highly sensitive areas such as transport, production, traffic and security surveillance is ensured. The simple plug-and-play system allows a fast integration of the industrial Gigabit PoE switch into the respective environment. With Gigabit connectivity the industrial Gigabit PoE switch provides a flexible, cost-effective solution for the industrial environment.
  • 7x 10/100/1000Base-TX Ethernet PoE ports
  • 1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port
  • Supports IEEE802.3af/at/bt as PD input power supply up to 95 W
  • Automatic Cable detection - Auto MDI / MDI-X function
  • Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
  • Backplane 16G
  • MAC address memory 4K
  • Compact, sturdy metal enclosure
  • Excellent short-circuit protection
  • Lightning protection and overvoltage protection

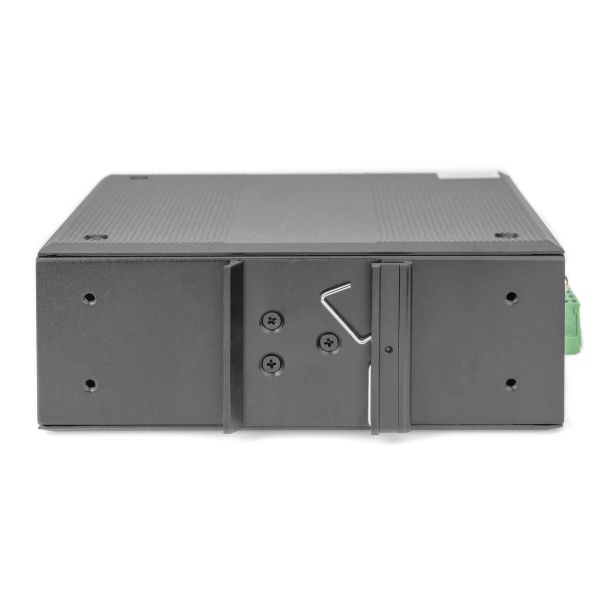

  • Suitable for DIN rail (top-hat rail) mounting

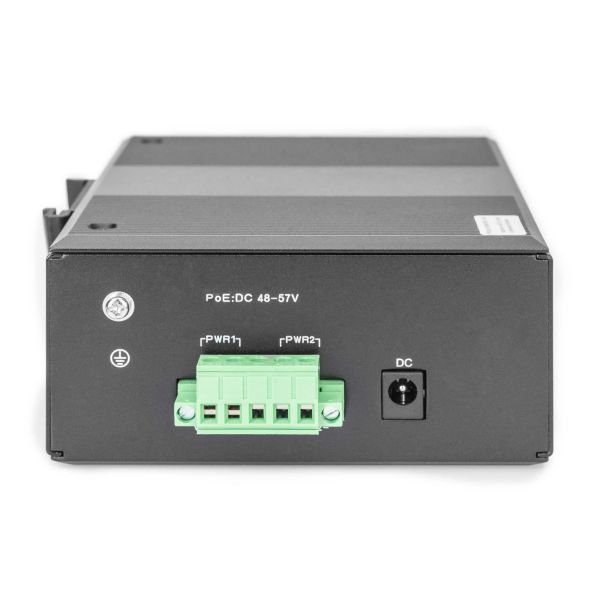

  • Redundant power supply: 48-57 V/DC, redundant power supply with polarity reversal protection function
  • Extended operating temperature range, -20 °C to +70 °C
  • Removable terminal connection
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Productassistent

Vraag mij alles over dit product

Onze digitale assistent geeft direct antwoord op je productvragen, maar kan zich soms vergissen.

Specificaties

Beheerfuncties

Switch type
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
7
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard
IEEE 802.3at
10G support
Nee
VLAN=ondersteuning
Ja

Data-uitwisseling

MAC-adrestabel
4000 entries

Design

Rack-montage
Nee
Kleur van het product
Zwart
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Energie

Redundante voeding
Ja
DC voltage input
48 - 57 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
7
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
240 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 85 °C

Verpakking

Snelstartgids
Ja
Breedte verpakking
240 mm
Diepte verpakking
193 mm
Verpakkingsvolume
4168,8 cm³
Gewicht verpakking
907 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
