Digitus DN-651127 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart

Digitus DN-651127, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Digitus
MPN DN-651127
EAN 4016032462842
€ 94,00 excl. BTW

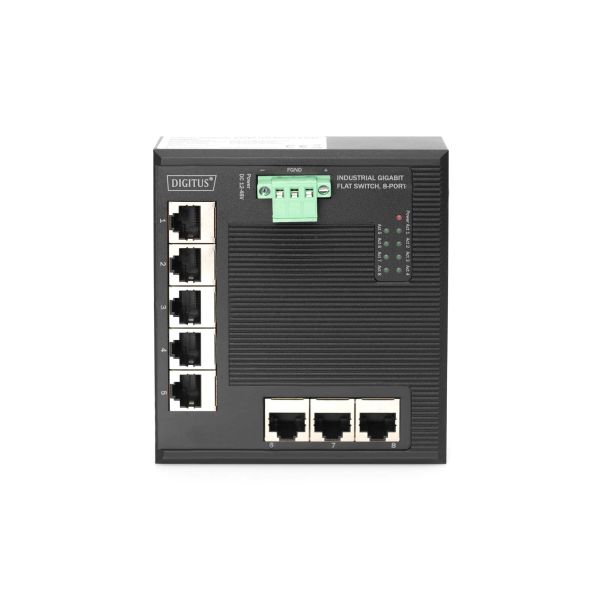

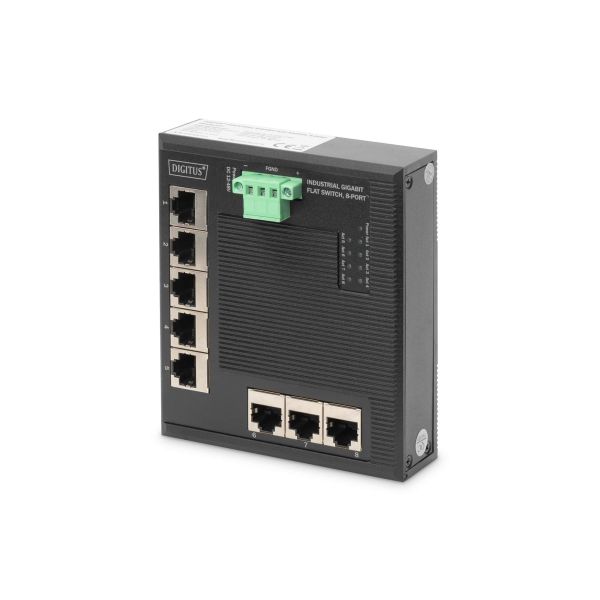

Digitus DN-651127 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart

Robust industry solution, high temperature range, space-saving flat case for profile rail mounting

- 8 x 10/100/1000 Base-TX Ethernet ports
- Suitable for DIN rail (top-hat rail) mounting
- Space-saving, flat housing
- Fanless design
- Store and forward technology for optimized data transfer
- Backplane capacity: 16 Gbps
- MAC address memory: 4K (auto-learning, auto-aging)
- Excellent protection against short circuits
- Lightning and surge protection

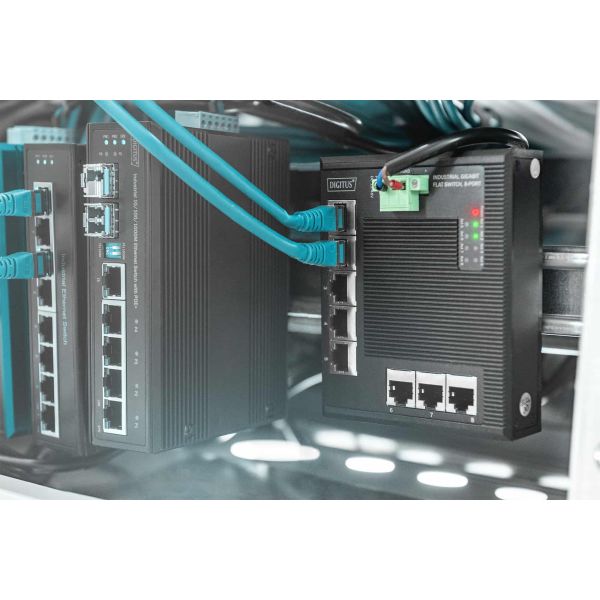

The DIGITUS® Industrial Flat Gigabit Switch was developed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 85 °C, the Industrial Flat Gigabit Switch can be used under the most adverse of conditions. The flat, fanless casing saves space and additional energy costs. It guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. The simple plug and play system lets the Industrial Flat Gigabit Switch be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for industrial environments.
  • 8 x 10/100/1000 Base-TX Ethernet ports
  • Automatic cable recognition - auto MDI/MDI-X function
  • Supports standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • LED display: Power (on/off), link (on/off/data)
  • Store and forward technology for optimized data transfer
  • Automatic speed and half/full duplex detection/adjustment
  • Backplane capacity: 16 Gbps
  • MAC address memory: 4K (auto-learning, auto-aging)
  • Robust, flat metal case
  • Excellent protection against short circuits
  • Lightning and surge protection

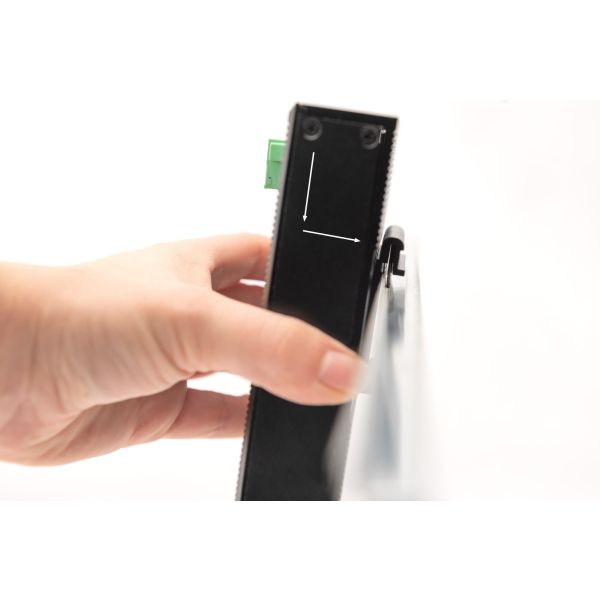

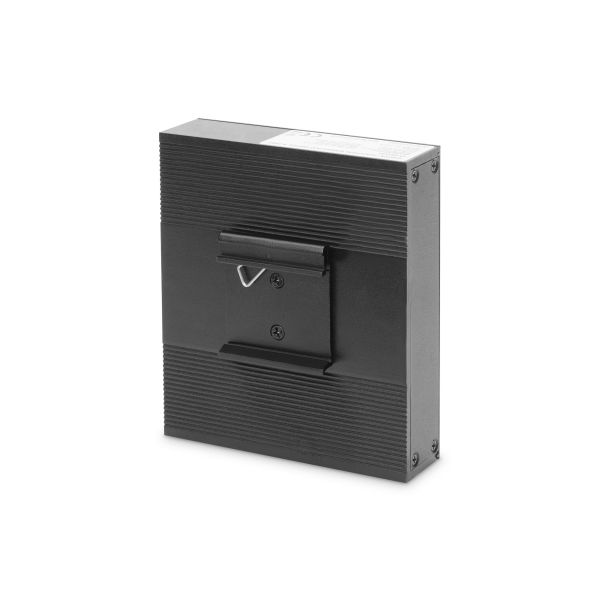

  • Suitable for DIN rail (top-hat rail) mounting
  • Fanless design
  • Electrostatic standard: Contact 8kV, air 15kV
  • Power supply via terminal strip (3 clamps, +/-/PE)
  • Power supply: DC 12 - 48 V
  • Operating temperature: -40 °C to +85 °C
  • Storage temperature: -40 °C to +85 °C
  • Operating humidity: 5% - 95% (non condensing)
  • Storage humidity: 5% - 95% (non condensing)
  • Dimensions: L 162 x W 135 x H 53 mm
  • Protection type: IP40
  • Electricity consumption: 8 Watts

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
VLAN=ondersteuning
Nee

Data-uitwisseling

MAC-adrestabel*
4000 entries
Store-and-forward
Ja

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Link, Stroom
Internationale veiligheidscode (IP)
IP40
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Prestatie

Fanloos
Ja

Energie

DC voltage input
12 - 48 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 85 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
135 mm
Diepte
162 mm
Hoogte
53 mm

Verpakking

Snelstartgids
Ja
Breedte verpakking
155 mm
Diepte verpakking
215 mm
Verpakkingsvolume
2332,75 cm³
Gewicht verpakking
624 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
