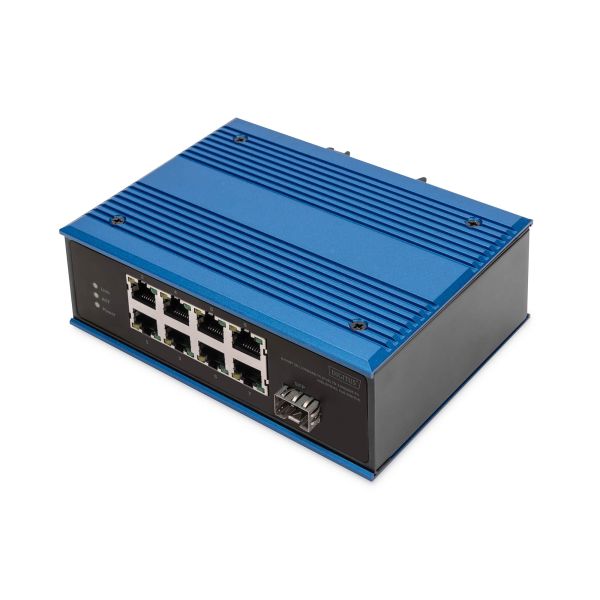

Digitus DN-651133 netwerk-switch Unmanaged Fast Ethernet (10/100) Zwart, Blauw
DN-651133 is a industrial graded 9-port Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment.
- The use of high quality photoelectric integration module to provide good optical and electrical characteristics
- Ensure reliable data transmission and long working life
- Support full duplex or half duplex mode, with automatic negotiation capability
- Network port support automatic cross identification
- Internal storage and forwarding mechanism, support a variety of protocols
- In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
- Working power supply: DC 48-57V to provide reverse protection
- Lightning Surge Protection (Power): 5000A(8/20μs)
DN-651133 is a industrial PoE Ethernet switch with 8-Port 10/100Mbps RJ45 +1 Port 100Mbps base-FX. The industrial graded switch has the operating temperature of -40℃ ~ 80℃, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the DN-651133 a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.
- The use of high quality photoelectric integration module to provide good optical and electrical characteristics
- Ensure reliable data transmission and long working life
- Support full duplex or half duplex mode, with automatic negotiation capability
- Network port support automatic cross identification
- Internal storage and forwarding mechanism, support a variety of protocols
- In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
- Working power supply: DC 48-57V to provide reverse protection
- Lightning Surge Protection (Power): 5000A(8/20μs)
DN-651133 is a industrial PoE Ethernet switch with 8-Port 10/100Mbps RJ45 +1 Port 100Mbps base-FX. The industrial graded switch has the operating temperature of -40℃ ~ 80℃, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the DN-651133 a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.

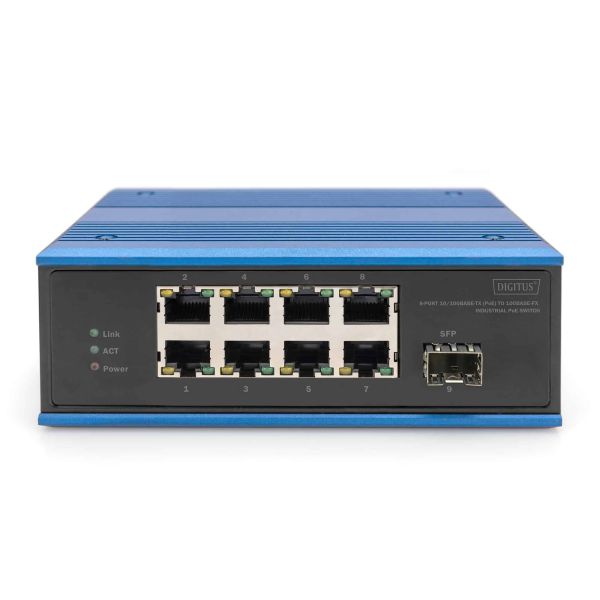

- 8-port 10/100Base-Tx RJ45 with autonegotiation and auto-MDI/ MDI-X function
- 1-port 100Base-Fx interface SFP
- 48V to 57V DC, redundant power input
- Enclosure: IP40 aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability

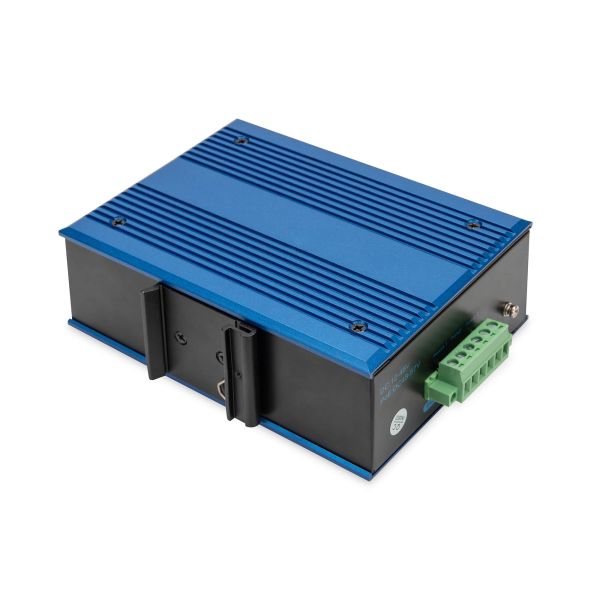

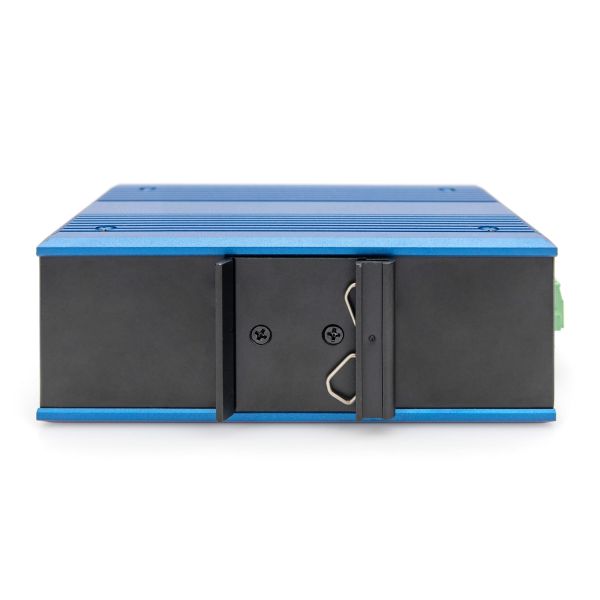

- DIN-rail Installation
- Performance Specification: Bandwidth: 1.8Gbps, Packet Buffer Memory:1,25Mbit, Packet Forwarding Rate:1.4Mpps, MAC Address Table: 4K
- Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
- LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow
- Power Input: 48 to 57V DC redundant power
- Power Consumption: < 3 watts
- Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
- Network cables: 10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100meter)
- Industry Standard: FCC CFR47 Part 15,EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz),
- Dimensions (W x D x H): 143.7 x 103 x 44.2 mm
- Weight: Product Weight: 0.56KG
- Working Environment: working temperature: -40～80℃ ;Storage temperature: -40～80℃
- Relative Humidity: 5%~95 %( no condensation)
- Relative humidity: 5% to max. 95% (non-condensing)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
8
Aantal moduleslots SPF
1
Aantal uplinkpoorten
1

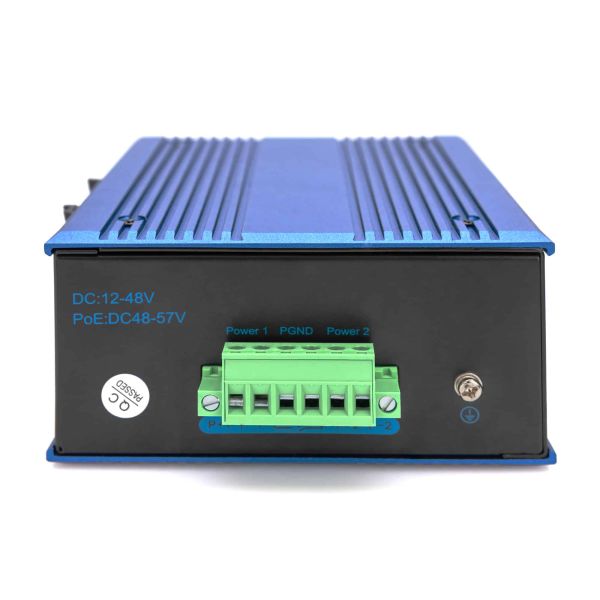

Netstekker
Aansluitingsblok (6-pins)
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-FX, 100BASE-TX
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
VLAN=ondersteuning
Nee
Data-uitwisseling
Switchingcapaciteit*
0,1 Gbit/s
Verzending snelheid
1,4 Mpps
MAC-adrestabel*
4000 entries
Packet buffergeheugen
1,25 MB
Design
Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart, Blauw
Materiaal behuizing
Aluminium
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP40
DIN rail bevestiging
Ja
Design
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China
Energie
Stroombron*
DC
DC voltage input
48 - 57 V
Stroomverbruik (typisch)
3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Gewicht en omvang
Breedte
143,7 mm
Diepte
103 mm
Hoogte
44,2 mm
Gewicht
560 g
Verpakking
Gebruikershandleiding
Ja
Breedte verpakking
158 mm
Diepte verpakking
66 mm
Hoogte verpakking
213 mm
Verpakkingsvolume
2221,16 cm³
Gewicht verpakking
917,857 g
Logistieke gegevens
Code UK-handelstarief
85176200
Overige specificaties
Bandbreedte
1,8 Gbit/s
