Digitus DN-651138 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart, Blauw

Digitus DN-651138, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

Nog 15 beschikbaar

Fabrikant Digitus
MPN DN-651138
EAN 4016032486084
€ 282,00 excl. BTW

Digitus DN-651138 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart, Blauw

DN-6511318 is a industrial graded 16-port Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment.

- The use of high quality photoelectric integration module to provide good optical and electrical characteristics
- Ensure reliable data transmission and long working life
- Support full duplex or half duplex mode, with automatic negotiation capability
- Network port support automatic cross identification
- Internal storage and forwarding mechanism
- In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
- Working power supply: DC 12-52V to provide reverse protection
- Lightning Surge Protection (Power): 5000A(8/20μs)

DN-651138 is a Industrial PoE Ethernet Switch with 16-Port 10/100/1000Mbps RJ45 +2 Port Gigabit SFP. The industrial graded switch has the operating temperature of -40℃ ~ 80℃, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the DN-651138 a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.

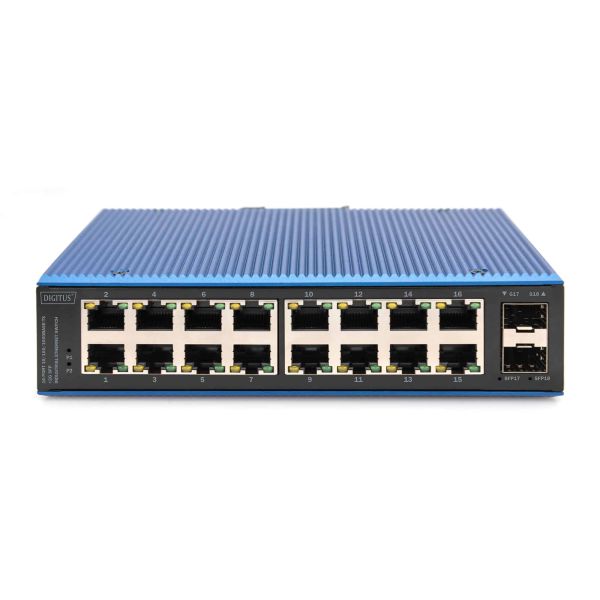

  • 16-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
  • 2-Port SFP uplink
  • -40℃ to 80℃ operating temperature
  • Enclosure: IP40 aluminum housing
  • Supports Air discharge: ±12kV
  • Contact discharge: ±8kV
  • Free Fall, Shock and Vibration Stability
  • DIN-rail hardware design
  • Performance Specification: Bandwidth: 56Gbps, Packet Buffer Memory: 4.1Mbit, Packet Forwarding Rate: 42Mpps, MAC Address Table: 8K
  • Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
  • LED Indicator: Power: Red, Ethernet: Yellow

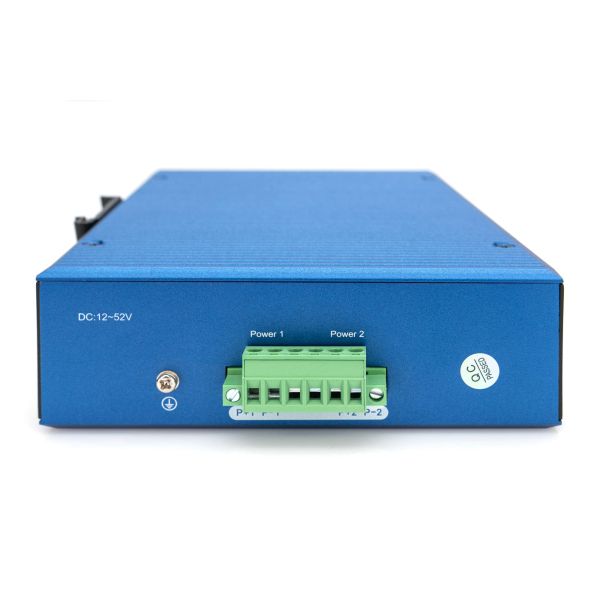

  • Power Input: 12 to 57V DC redundant power
  • Power Consumption: 10 watts
  • Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
  • Network cables: 10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100meter)
  • Indusrty Strandard: Free fall: IEC 60068-2-32; Vibration: IEC 60068-2-6
  • Dimensions (W x D x H): 175.6 x 135 x 45.5 mm
  • Weight: Product Weight: 1.0KGS
  • Working Environment: working temperature: -40～80℃ ;Storage temperature: -40～80℃
  • Relative Humidity: 5%~95 % ( no condensation)
  • Relative humidity: 5% to max. 95% (non-condensing)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Aantal moduleslots SPF
2
Aantal uplinkpoorten
2
Netstekker
Aansluitingsblok (6-pins)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-TX, 100BASE-FX
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
1 Gbit/s
Verzending snelheid
42 Mpps
MAC-adrestabel*
8000 entries
Packet buffergeheugen
4,1 MB

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart, Blauw
Materiaal behuizing
Aluminium
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP40
DIN rail bevestiging
Ja

Design

Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Energie

Stroombron*
DC
DC voltage input
12 - 52 V
Stroomverbruik (typisch)
10 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
175,6 mm
Diepte
135 mm
Hoogte
45,5 mm
Gewicht
1 kg

Verpakking

Breedte verpakking
186 mm
Diepte verpakking
72,5 mm
Hoogte verpakking
208 mm
Verpakkingsvolume
2804,88 cm³
Gewicht verpakking
1,17 kg

Logistieke gegevens

Code UK-handelstarief
85176200

Overige specificaties

Bandbreedte
56 Gbit/s
