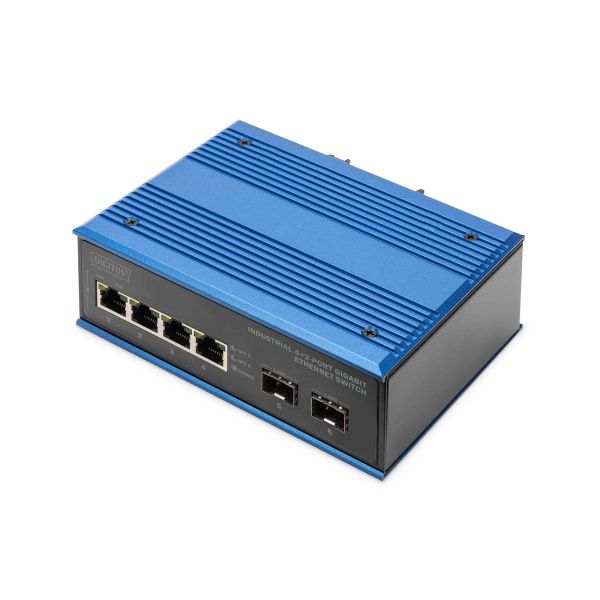

Digitus DN-651148 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart, Blauw

Digitus DN-651148, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Nog 20 beschikbaar

Fabrikant Digitus
MPN DN-651148
EAN 4016032489245
€ 93,00 excl. BTW

Digitus DN-651148 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart, Blauw

4 x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

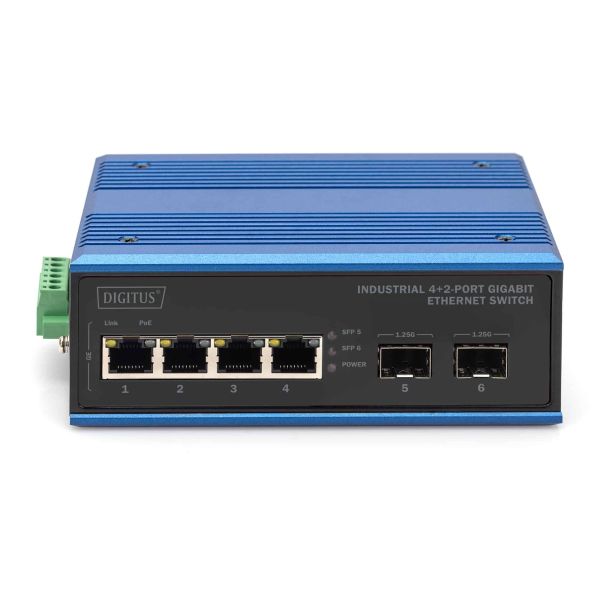

- 4 Port GE, 2 SFP GE Ports
- 4 x 10/100/1000 Mbit (RJ45)
- 2 x 10/100/1000 Mbit (SFP)
- redundant power supply 12-48 V (DC)
- Metal enclosure to IP40 standard
- Simple mounting on a DINrail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Optimal for the connection of camera systems

The DN-651148 is a rugged 4+2
-port Industrial Gigabit Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers.
4x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.
  • Supports IEEE802.3x flow control, and backpressure
  • Supports store-and-forward technology for optimised data transmission
  • Automatic speed and half/full duplex detection/setting
  • Bandwidth: 14 Gbps
  • Packet buffer size: 1.2 Mbit
  • Packet forwarding size: 10.5 Mbps
  • MAC address table size: 2K
  • Jumbo frame rate: 9000 byte
  • ESD protection: 6 kV (DC)
  • EFT protection: 6 kV (DC)
  • Metal housing, IP40
  • 4 kV lightning and surge protection

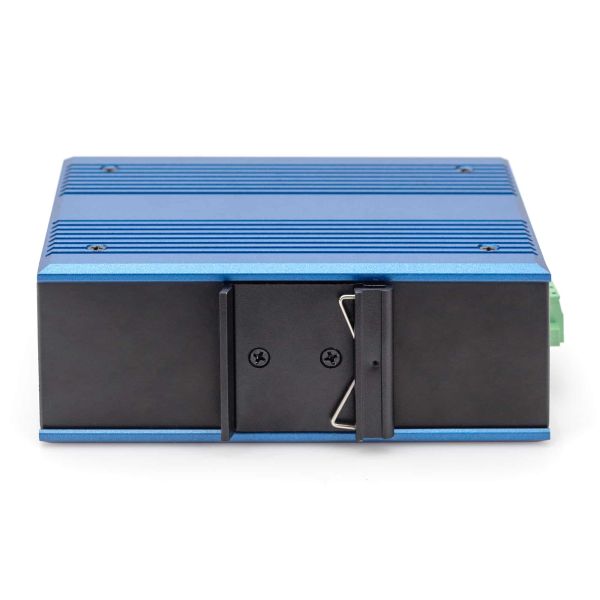

  • Suitable for mounting on DIN rail (top-hat rail)

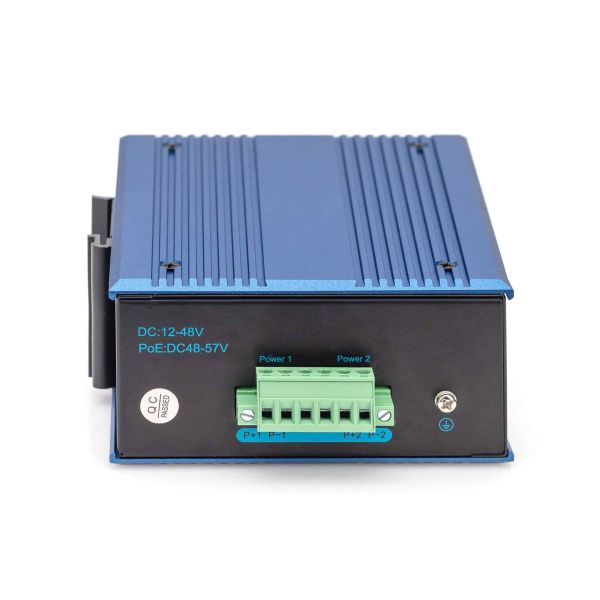

  • Redundant power supply with reverse polarity protection function
  • Power supply: 12 to 48 V
  • Power consumption: <5 W
  • V-LAN: no
  • Removable terminal connection
  • Protection class: IP40
  • Dimensions: 142.5 x 107.1 x 53.5 mm
  • Weight: 0.53 kg
  • Operating temperature: -40 to 80 ° C
  • Storage temperature: -40 to 80 ° C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF: 300,000 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
4
Aantal geïnstalleerde SFP modules*
2
Vezel-optische connector
SFP

Netwerk

Netwerkstandaard*
IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
1 Gbit/s
Verzending snelheid
10,5 Mpps
MAC-adrestabel*
2000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
1,2 MB

Design

Rack-montage*
Ja
Stapelbaar*
Nee
Kleur van het product
Zwart, Blauw
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP40
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Prestatie

Plug and play
Ja

Prestatie

Mean time between failures (MTBF)
300000 uur

Energie

Stroombron*
DC
Vermogenstoevoer inclusief*
Ja
Redundante voeding
Ja
Ingangsspanning
12 - 48 V
Stroomverbruik (typisch)
5 W
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
142,5 mm
Diepte
107,1 mm
Hoogte
53,5 mm
Gewicht
530 g

Verpakking

Snelstartgids
Ja
Gebruikershandleiding
Ja
Breedte verpakking
158 mm
Diepte verpakking
66 mm
Hoogte verpakking
213 mm
Verpakkingsvolume
2221,16 cm³
Gewicht verpakking
842,857 g

Logistieke gegevens

Code UK-handelstarief
85176200

Overige specificaties

Bandbreedte
14 Gbit/s
Ethernet interface type
Gigabit Ethernet
