Digitus DN-651159 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart, Blauw

Digitus DN-651159, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Nog 13 beschikbaar

Fabrikant Digitus
MPN DN-651159
EAN 4016032490234
€ 377,00 excl. BTW

Digitus DN-651159 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart, Blauw

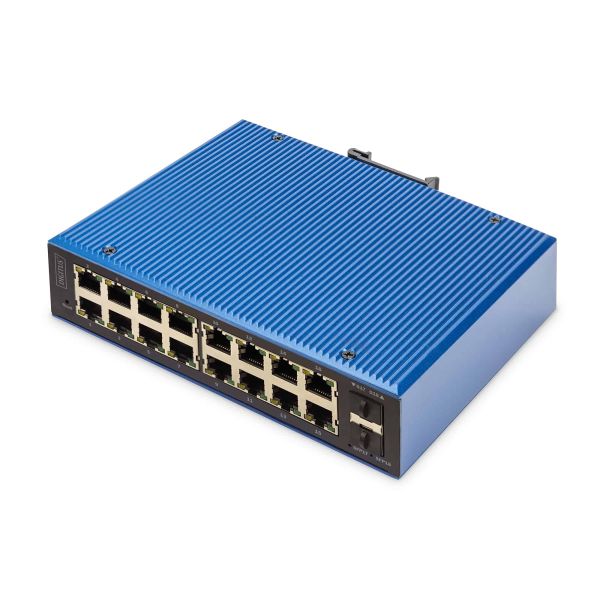

16 x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 manageable, IP40 housing with redundant power supply , ideal for monitoring, control management and wireless services at -40℃ to 80℃. Ports 1-16 (RJ45) support PoE according to the IEEE802.3af/at standard with up to 30W per port.

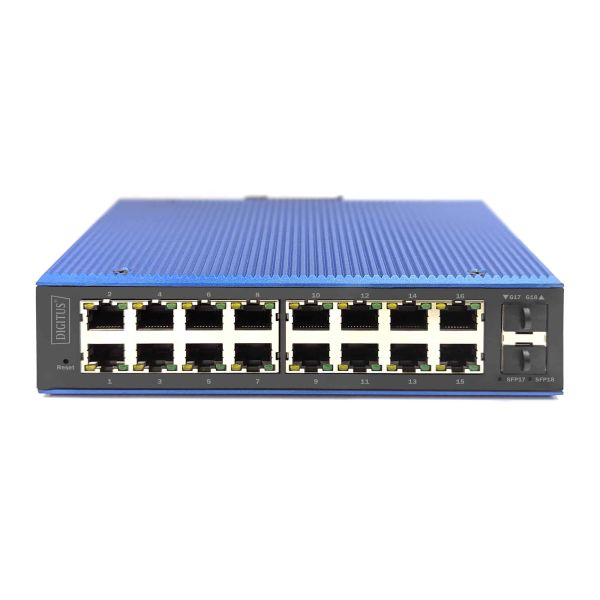

- 16 Port GE RJ45, 2 SFP GE Ports
- 16 x 10/100/1000 Mbit (RJ45, PoE IEEE802.3af/at)
- 2 x 10/100/1000 Mbit (SFP)

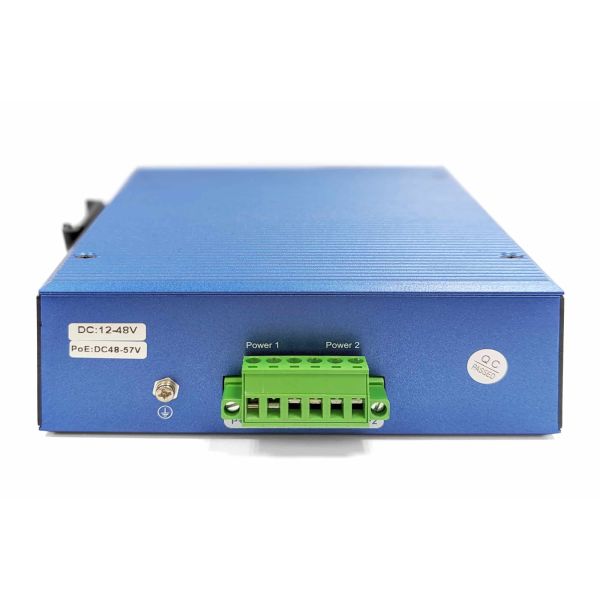

- Redundant power supply 48-57 V (DC)
- Metal housing according to IP40 standard
- Easy mounting on a top hat rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 6 kV (DC)
- Optimal for the connection of camera systems

The Digitus DN-651159 Ethernet switch with 4 x RJ45 interfaces, as well as 2 x SFP uplinks offers numerous Layer 2 port functions for optimal network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in case of failures. Optimise multicast traffic with IGMP and MLD snooping. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritisation. Extensive management options such as SNMP and CLI keep you in control. The RJ45 ports can power connected PoE devices with up to 30W each. Our switch is a reliable network solution with advanced features for your needs.
  • Supports IEEE802.3x flow control, and backpressure
  • Supports store-and-forward technology for optimized data transmission
  • Automatic speed and half/full duplex detection/adjustment
  • Bandwidth: 56 Gbps
  • Packet buffer size: 4.1 Mbit
  • Package forwarding Size: 42 Mbps
  • Size of MAC address table: 8 K
  • Jumboframe rate: 10240 bytes
  • EsD protection: 6 kV
  • EFT protection: 6 kV
  • Metal housing, IP40
  • 4 kV lightning and overvoltage protection

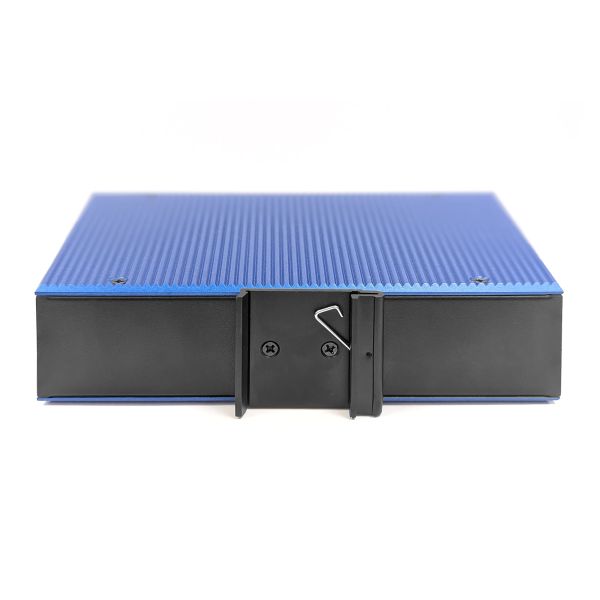

  • Suitable for DIN rail mounting (top hat rail)
  • Redundant power supply with reverse polarity protection function
  • Power supply: 48 to 57 V (DC)
  • Power consumption: < 15 W

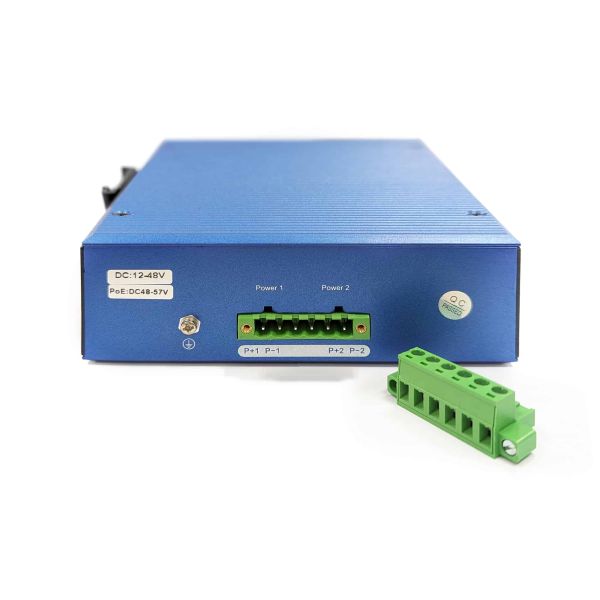

  • Removable terminal connection
  • Protection class: IP40
  • Dimensions: 175,6 x 135 x 45,5 mm
  • Weight: 1,2 kg
  • Operating temperature: -40 to 80 ° C
  • Storage temperature: -40 to 80 ° C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF: 300,000
  • Port features: IEEE 802.3x flow control, interface counter, storm control, link aggregation, static aggregation, dynamic aggregation, LACP
  • Supports up to 8 aggregation groups, each with up to 8 ports
  • Support for source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy
  • MAC table management,port forwarding,IVL forwarding, static MAC address, MAC address binding support, MAC address filtering support, port mirroring, port based mirroring
  • Spanning Tree: IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ERPS (G.8032), single ring, sub-ring, multi-ring, load balancing,
  • recovery time < 50 ms
  • QINQ: VLAN-based QinQ, GVRP support
  • LLDP: LLDP, LLDP-MED,
  • VLAN: 4094 VLANs, port-based VLAN, GVRP, protocol VLAN, MAC-based VLAN, IP subnet-based VLAN, voice VLAN.
  • Static entries: Port isolation support
  • IGMP: IGMP snooping V1, IGMP snooping V2, IGMP snooping V3, source port inspection, IGMP Fast Leave, IGMP filter,
  • MLD snooping: MLD snooping V1, MLD snooping V2, source port checking, MLD Fast Leave, MLD filtering
  • ACL: ACL (IP Standard ACL), IPv4/IPv6, Extended MAC ACL, Extended IP ACL, Matching L2, L3 and L4 fields, Logging, Forwarding, Mirroing, Speed Limiting
  • QoS: QoS class, re-evaluation, SP, WRR queue scheduling, ingress port-based rate limiting, ingress priority-based rate limiting, egress port-based rate limiting, egress queue-based rate limiting, policy-based QoS, storm control, 8 queues per port
  • Dot1x: port access control, user access control, MAC address access control
  • Various other L2 features

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Aantal geïnstalleerde SFP modules*
2
Vezel-optische connector
SFP

Netwerk

Netwerkstandaard*
IEEE 802.3af
10G support*
Nee
Port mirroring
Ja
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Nee
Virtuele LAN-functies
IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
1 Gbit/s
Verzending snelheid
42 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10240
Packet buffergeheugen
4,1 MB

Beveiliging

Access Control List (ACL)
Ja
IGMP snooping
Ja
MAC adres filtering
Ja

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart, Blauw
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP40

Design

DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Prestatie

Mean time between failures (MTBF)
300000 uur

Energie

Stroombron*
DC/PoE
Vermogenstoevoer inclusief*
Ja
Redundante voeding
Ja
DC voltage input
48 - 57 V
Stroomverbruik (typisch)
15 W
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
30 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 80 °C
Temperatuur bij opslag
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
175,6 mm
Diepte
135 mm
Hoogte
45,5 mm
Gewicht
1,2 kg

Verpakking

Snelstartgids
Ja
Breedte verpakking
186 mm
Diepte verpakking
72,5 mm
Hoogte verpakking
208 mm
Verpakkingsvolume
2804,88 cm³
Gewicht verpakking
75 g

Logistieke gegevens

Code UK-handelstarief
85176200

Overige specificaties

Bandbreedte
56 Gbit/s
Ethernet interface type
Gigabit Ethernet
