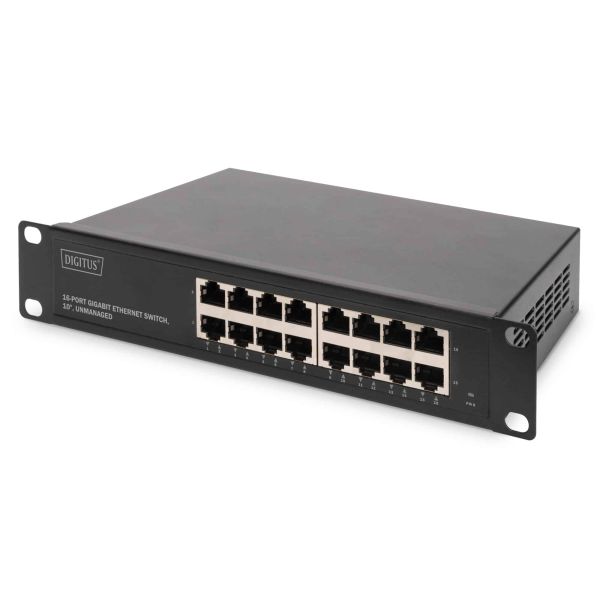

Digitus DN-80115 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Zwart
Digitus DN-80115, Unmanaged, Gigabit Ethernet (10/100/1000), Rack-montage, 1U
Ruim op voorraad
Fabrikant
Digitus
MPN
DN-80115
EAN
4016032460237
€ 165,00
excl. BTW
€ 165,00
excl. BTW
excl. BTW
Digitus DN-80115 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Zwart
Gigabit Ethernet Switch suitable for mounting in 10" (254 mm) enclosures.
- High backplane bandwidth
- Supports full-duplex flow control
- Meets the IEEE 802.3x network standard
- Integrated power adaptor
The DIGITUS® 16-port Gigabit Ethernet Switch provides sixteen 10/100/1000 Mbps RJ45 ports with auto-negotiation. All ports support the Auto MDI/MDIX function, eliminating the need for crossover cables and uplink ports. Low cost, easy handling and high performance are the strengths of the DIGITUS® 16-Port Gigabit Ethernet Switch, making it an excellent choice for your network. The high backplane bandwidth has enough reserves so that even large amounts of data can be transferred effortlessly. In addition, this switch is designed for installation in 10” (254 mm) enclosures and seamlessly fits in your network enclosure with 1U.
- High backplane bandwidth
- Supports full-duplex flow control
- Meets the IEEE 802.3x network standard
- Integrated power adaptor
The DIGITUS® 16-port Gigabit Ethernet Switch provides sixteen 10/100/1000 Mbps RJ45 ports with auto-negotiation. All ports support the Auto MDI/MDIX function, eliminating the need for crossover cables and uplink ports. Low cost, easy handling and high performance are the strengths of the DIGITUS® 16-Port Gigabit Ethernet Switch, making it an excellent choice for your network. The high backplane bandwidth has enough reserves so that even large amounts of data can be transferred effortlessly. In addition, this switch is designed for installation in 10” (254 mm) enclosures and seamlessly fits in your network enclosure with 1U.
- 16x RJ45 ports
- 10/100/1000Base-TX
- Network Standard IEEE 802.3x full-duplex flow control
- Compatible with other standards: IEEE802.3, IEEE 802.3u, IEEE 802.3ab
- Backplane bandwidth: 32 Gbps
- MAC addresses: 8K
- Forwarding rate: 1.488 Mpps per port
- LED indicator: Power, Link/Active
- Suitable for mounting in 10" enclosures, 1U
- Cooling: passive (fanless)
- Integrated power adaptor
- Input voltage: 100 – 240 V multivoltage, 50/60 Hz
- Power supply: 15 W
- Operation temperature: 0 °C – 40°C
- Storage temperature: 0 °C – 70 °C
- Relative humidity: 20% – 85% (non-condensing)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support*
Nee
VLAN=ondersteuning
Nee
Data-uitwisseling
Switchingcapaciteit*
32 Gbit/s
MAC-adrestabel*
8000 entries
Design
Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China
Energie
Vermogenstoevoer inclusief*
Ja
Energie
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
0 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 85 procent
Verpakking
Breedte verpakking
240 mm
Diepte verpakking
67 mm
Verpakkingsvolume
5145,6 cm³
Gewicht verpakking
1,6 kg
Logistieke gegevens
Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Ethernet interface type
Gigabit Ethernet
