Digitus DN-80117, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, Ophangsysteem voor aan de muur

Nog 15 beschikbaar

Fabrikant Digitus
MPN DN-80117
EAN 4016032464358

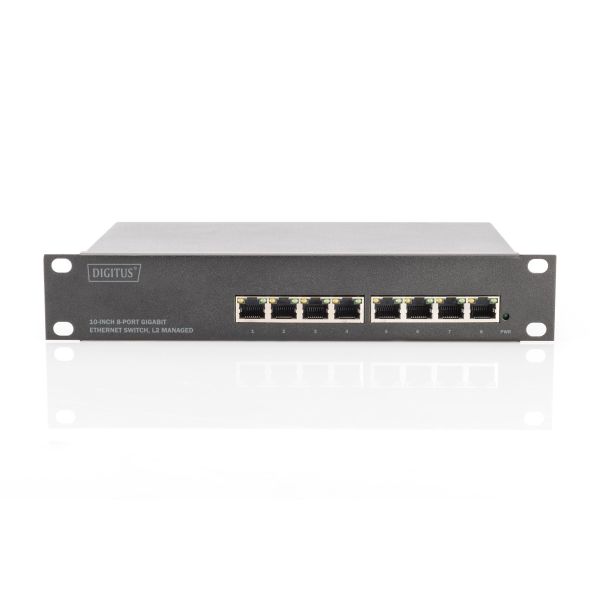

Digitus DN-80117 netwerk-switch Managed L2+ Gigabit Ethernet (10/100/1000) Zwart

L2+ managed Gigabit Switch - suitable for installation in 10-inch housing

- 8-Port 10/100/1000 Mbps
- Network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab
- IEEE802.3x full-duplex flow control & IEEE 802.3ab link aggregation
- Management interfaces: WEB, SNMP, SSH, CLI, Telnet
- Port Control, Port Isolation, Loop Detection, Port Mirroring
- Backplane bandwidth: 16 Gbps
- VLAN features
- L2+ layer features

The 8-port Gigabit L2+ Switch is designed for the networks of small to mid-sized companies. With special features such as port control, port mirroring, VLAN functions and multicast support, the switch is optimally tailored to the application convergence needs of mid-sized networks. Based on ASIC integration technology, non-blocking IP switching solutions are supported with gigabit speed. The switch can be used as a desktop switch or for installation in 10-inch housing. 8 gigabit ports are integrated that can be configured for specific requirements using various interfaces. The installation height is one rack unit.
  • Number of ports: 8 x 10/100/1000Base-TX RJ45
  • Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x full-duplex flow control, IEEE802.3ab link aggregation
  • Forwarding rate: 10/100/1000 Mbps
  • LED displays: Power, Link/Act
  • Backplane bandwidth: 16G
  • Forwarding capacity: 11.9 Mpps
  • Jumbo frame size: 16 K
  • MAC addresses: 8K
  • Port features: Port Control, Port Isolation, Port Loop Detection
  • Port mirroring: Multi to 1 Sniffer
  • VLAN: Port-based & 802.1q Tag-based VLANs
  • Link aggregation: 8 groups
  • Rate limit: 64kbps
  • Spanning tree: Supports STP, RSTP, MSTP
  • Ring protocol: Supports EAPS
  • Multicast: Supports 256 multicast groups & IGMP snooping for multimedia applications
  • Supports Static ARP & Static Routing, up to 32 VLAN interfaces
  • QoS: 4 lines per port, scheduling algorithm: WRR, SP, WFQ, port-based, MAC-based, 802.1p, DSCP classification
  • ACL: Standard IP, Extend IP, MAC IP, ARP, 512 entries
  • Security: MAC-based authentication, AAA/RADIUS authentication, WEB/Telnet password protection, Accessing privilege mode password protection
  • Supports SMNP
  • Supports ICMPv6, IPv6 Neighbor Discovery, MLD Snooping, IPv6 Telnet
  • Management interfaces: WEB, SNMP, CLI, Telnet, TACACS+, RMON
  • Power consumption: 15W max.
  • Operating voltage: 100 - 240 V AC, 50/60 Hz, integrated power adapter (IEC C13 plug for non-heating appliances)
  • Operating temperature: 0 °C to 40 °C
  • Storage temperature: -10 °C to +70 °C
  • Operating humidity: 20% - 85% (non condensing)
  • Housing: Metal (with protective conductor terminal)
  • Dimensions: W 250 x D 150 x H 44 mm
  • Weight: 1.140 kg (without packaging)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2+
Quality of Service (QoS)
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja

Data-uitwisseling

MAC-adrestabel*
8000 entries

Beveiliging

IGMP snooping
Ja
MAC adres filtering
Ja
IP-MAC-Port binding
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Link, Stroom
Ophangsysteem voor aan de muur
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee

Design

Land van herkomst
China

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 85 procent

Gewicht en omvang

Breedte
250 mm
Diepte
150 mm
Hoogte
44 mm
Gewicht
1,14 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Breedte verpakking
240 mm
Diepte verpakking
70 mm
Verpakkingsvolume
5376 cm³
Gewicht verpakking
1,6 kg

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
