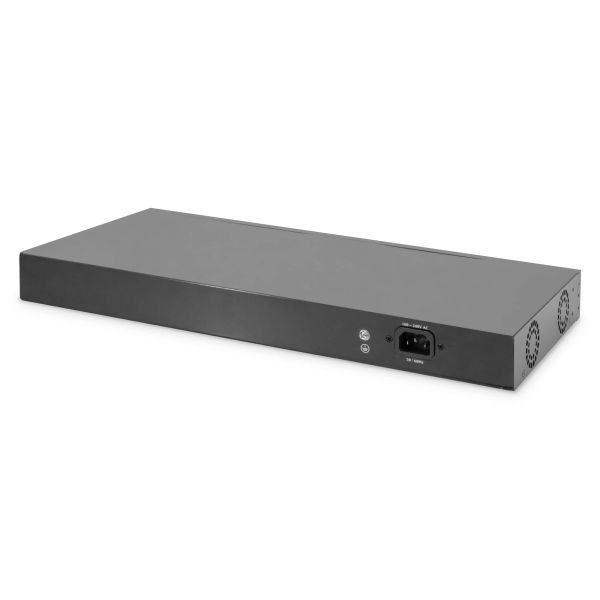

Digitus DN-80223 netwerk-switch Unmanaged L3 Gigabit Ethernet (10/100/1000) 1U Zwart

Digitus DN-80223, Unmanaged, L3, Gigabit Ethernet (10/100/1000), Rack-montage, 1U

Ruim op voorraad

Fabrikant Digitus
MPN DN-80223
EAN 4016032485452
€ 304,00 excl. BTW

Digitus DN-80223 netwerk-switch Unmanaged L3 Gigabit Ethernet (10/100/1000) 1U Zwart

24 Port 10/100/1000 + 4 10 G SFP+ UPLINK Switch, 19", L2+ Features

- Support RJ45 Auto-MDI/MDIX
- Panel light monitors working status and assists in fault analysis
- Supports full-duplex ieee 802.3x flow control and Backpressure half-duplex flow control
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
- High reliability design, supporting traditional STP/RST layer 2+ link protection technology; Supports manual aggregation and dynamic aggregation, which increases link bandwidth, improves link reliability, and implements load balancing and link backup
- Management and maintenance Supports Console, Telnet, and SSH management modes
- The system supports WEB management, which facilitates installation and debugging for engineers and maintenance personnel
- Virtual Gateway Supports file upload and download management through TFTP

Digitus DN-80223, with its 24 Gigabit RJ45 port and four independent SFP + fiber expansion slot, is ideal for connecting local networks to data centers.
Equipped with 4 * 10G SFP+ slot, flexibly expand your network. The 10G uplink switch provides high performance, enterprise QoS, advanced security policies and comprehensive layer 2+ management features.
With all these advanced features, the switch is powerful and flexible enough to meet almost all IT needs.
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w,IEEE 802.3ad
  • Interface: 24*10/100/1000Mbps RJ45 Port, 4* 10G SFP+ Slots, 1*Console
  • Indicator: PWR, LINK/ACT, SYS
  • Network media: 10BASE-T: UTP category 3,4,5 cable（≤100m）, 100BASE-TX: UTP category 5, 5e cable（≤100m）,1000BASE-T: UTP category 5e, 5 cable（≤100m） 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF
  • MAC Address Table: 16K, Auto-learning, Auto-aging
  • jumbo frame: 12K Bytes
  • Transfer Mode: Store-and-forward
  • Packet Forward Speed: 95.23Mpps
  • Switching Capacity:128Gbps
  • Packet buffer: 12Mbit
  • Dimensions(L*W*H): 440*260*44mm
  • Fan Quantity: Fanless
  • Green energy saving: IEEE 802.3az
  • Power supply: 24W
  • Input Power Supply: 12V/2A
  • Operating Temperature: 0°C ~ 40 °C
  • Storage Temperature:-40 °C ~ 70 °C
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
  • System Settings: Basic information, system status, user management,SNTP configuration, importing/exporting configuration files, firmware upgrade
  • Port Settings: Basic configuration, port statistics, Broadcast Storm, Port Rate limiting, Port security, link aggregation, port Mirroring, and port Isolation, Port aggregation,Load balancing, static aggregation, LACP
  • MAC binding: MAC static binding, dynamic learning, MAC binding automatic conversion, MAC aging and learning restriction, and MAC filtering
  • VLAN configuration: VLAN information, VLAN configuration, VLAN port configuration, Voice VLAN, QinQ, Guest-VLAN, GVRP, MVR
  • ARP: IP Source Guard, ARP Check, gratuitous-ARP, ARP defense, DAI, tri-binding
  • DHCP: IPV4/IPV6 DHCP Snooping, DHCP Server, DHCP Relay
  • STP: STP/MSTP/RSTP, PortFast，Root Guard, Bpdu Guard
  • SNMP configuration: SNMP community, SNMP view, SNMP TRAP, SNMP(V1,V2C,V3)
  • RMON configuration: RMON(1,2,3,9)
  • ACL configuration: Standard ACLs, ipv6-based ACLs, extended ACLs, Mac-based ACLs, expert ACLs, and time-range ACLs
  • QOS configuration: QOS Application, QOS Scheduling Strategy, Queue Mapping (DSCP&CoS)
  • IGMP Snooping configuration: IGMP SNOOPING configuration, multicast group information, IGMP SNOOPING VLAN, IGMP SNOOPING (V1,V2,V3)）
  • ERPS: ERPS configuration, ERPS mode, ERPS role
  • LLDP: LLDP TLV configuration to view neighbor information
  • Error-Disable: Error-Disable, Loopback-detection
  • Web tools: Ping/Ping6, Traceroute/Traceroute 6, cable detection
  • Log management: Log management and Debug information

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Switch-laag
L3
Quality of Service (QoS)
Ja
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal moduleslots SPF+
4
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
Ethernet Ring Protection Switching (ERPS)
Ja
VLAN=ondersteuning
Nee

Optische vezel

Fiber ethernet cabling technologie
10GBase-X, 1000Base-X

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Verzending snelheid
95,23 Mpps
MAC-adrestabel*
16000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000
Doorsturen van IP-pakketten
Ja
Packet buffergeheugen
12 MB

Beveiliging

DHCP-functies
DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP, SNMPv2, SNMPv3

Design

Rack-montage*
Ja
Stapelbaar*
Nee

Design

Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Stroom, Systeem
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Prestatie

Upgraden van firmware mogelijk
Ja
Fanloos
Ja

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
Stroom
2 A
Ingangsspanning
12 V
Stroomverbruik (typisch)
24 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
260 mm
Diepte
440 mm
Hoogte
44 mm

Verpakking

Meegeleverde kabels
AC
Gebruikershandleiding
Ja
Breedte verpakking
318 mm
Diepte verpakking
495 mm
Hoogte verpakking
77 mm
Verpakkingsvolume
12120,6 cm³
Gewicht verpakking
3,61 kg

Logistieke gegevens

Code UK-handelstarief
85176200
