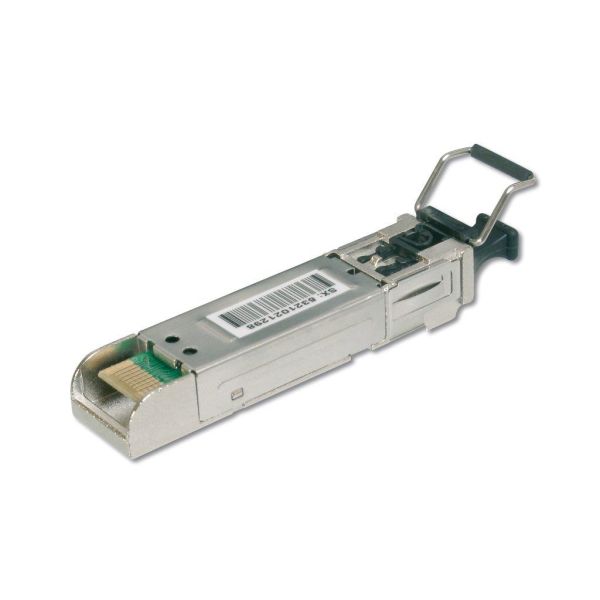

Digitus DN-81001-02 network switch module Gigabit Ethernet
The plug and play fiber connection
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- Cisco compatible
- Mini GBIC SFP (Small Form Factor Pluggable) module
- High quality and excellent reliability
- 1.25 Gbps Maximum Data Rate
- Compliant to IEEE 802.3z Gigabit Standard
- Class 1 laser product compliant with EN 60825-1
- Easy plug-and-play installation
- MSA (Multi Source Agreement) compliant
- Hot pluggable
- Connector: 1x LC Duplex
- 1000Base-LX - For Long Haul
- Wavelength: 1310nm
- Transmission power: minimum -8 dBm, maximum -3 dBm
- Sensitivity receiving power: minimum -24 dBm
- For a Distance of up to 20km
- Suitable for 09/125µm Singlemode Fiber Cables
- Safe fast-locking mechanism
- 3.3V power supply
- Operating temperature: 0 °C ~ 70 °C
- Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Netwerk
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Koperen ethernetbekabelingstechnologie
1000BASE-LX
Full duplex
Ja
Netwerkstandaard
IEEE 802.3z
Optische vezel
Vezel-optische connector
LC
Fiber type
Single-mode
Fiber ethernet cabling technologie
1000BASE‑LX
Transmissie afstand (max)
20 km
Golflengte
1310 nm
Data-uitwisseling
Overdrachtssnelheid
1,25 Gbit/s
Poorten & interfaces
Fibre channel-poorten
1
Gewicht en omvang
Breedte verpakking
95 mm
Diepte verpakking
115 mm
Gewicht verpakking
58 g
Verpakkingsvolume
327,75 cm³
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Code UK-handelstarief
85176200
Overige specificaties
Land van herkomst
China
