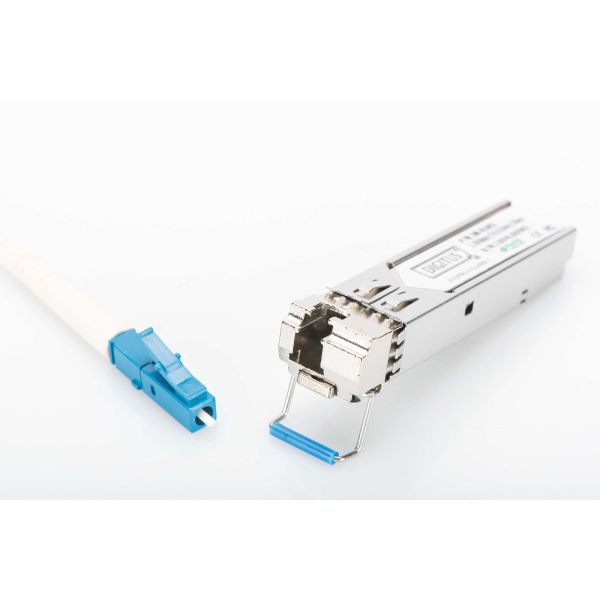

Digitus mini GBIC(SFP) Module, 20km,DD netwerk transceiver module 10000 Mbit/s 1550 nm
Digitus mini GBIC(SFP) Module, 20km,DD, 10000 Mbit/s, SFP, LC, 20000 m, 1550 nm, 1310 nm
10 op voorraad (nu besteld = vandaag verzonden)
€ 17,00
excl. BTW
€ 17,00
excl. BTW
excl. BTW
4,5
·
4,0
·
Gratis verzending vanaf €250
The plug and play fiber connection
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- HP compatible
- HP-Aruba compatible
- Mini GBIC SFP (Small Form Factor Pluggable) module
- Supports DDM (Digital Diagnostic Monitoring)
- Bidirectional WDM Module - Only one fiber is needed
- High quality and excellent reliability
- 1.25 Gbps Maximum Data Rate
- Compliant to IEEE 802.3z Gigabit Standard
- Class 1 laser product compliant with EN 60825-1
- Easy plug-and-play installation
- MSA (Multi Source Agreement) compliant
- Hot pluggable
- Connector: 1x LC Simplex
- Wavelength: Tx 1310nm / Rx 1550nm
- Transmission Power: Minimum -5 dBm, Maximum 0 dBm
- Sensitivity receiving power: minimum -24 dBm
- For a Distance of up to 20km
- Suitable for 09/125µm Singlemode Fiber Cables
- Safe fast-locking mechanism
- 3.3V power supply
- Operating temperature: 0 °C ~ 70 °C
- Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Productassistent
Vraag mij alles over dit product
Onze digitale assistent geeft direct antwoord op je productvragen, maar kan zich soms vergissen.
Prestatie
Maximale overdrachtssnelheid van gegevens
10000 Mbit/s
Soort aansluiting
SFP
Single-mode glasvezelkabel (SMF) ondersteund
Ja
Vezel-optische connector
LC
Maximaal bereik
20000 m
Golflengte
1550 nm
Tx-golflengte (min)
1310 nm
Tx-golflengte (max)
1310 nm
Rx-golflengte (max)
1550 nm
Ethernet interface type
Fast Ethernet
Netwerkstandaard
IEEE 802.3z
Digital Diagnostics Monitoring (DDM)
Ja
Kenmerken
Kleur van het product
Metallic
Kenmerken
Plug and play
Ja
Hot-plug ondersteuning
Ja
Land van herkomst
China
Merkcompatibiliteit
HP
Verpakking
Breedte verpakking
115 mm
Diepte verpakking
30 mm
Verpakkingsvolume
310,5 cm³
Gewicht verpakking
35,417 g
Logistieke gegevens
Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
