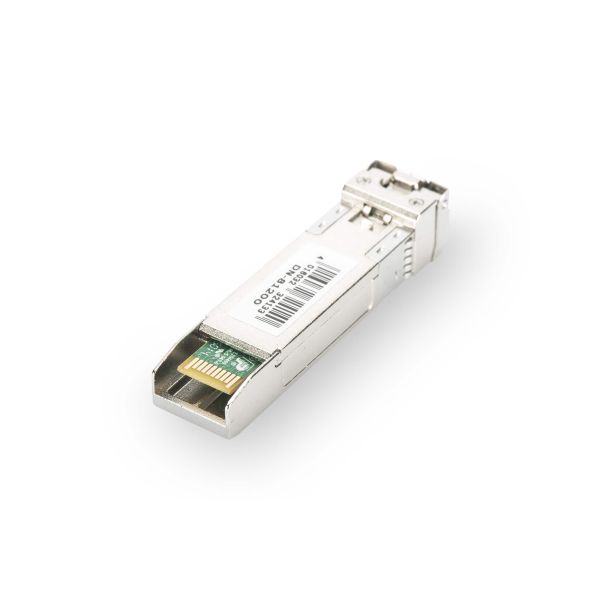

Digitus DN-81200 netwerk transceiver module Vezel-optiek 10000 Mbit/s mini-GBIC/SFP 850 nm

Digitus DN-81200, Vezel-optiek, 10000 Mbit/s, mini-GBIC/SFP, LC, 300 m, 850 nm

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Digitus
MPN DN-81200
EAN 4016032324133
€ 80,00 excl. BTW

Digitus DN-81200 netwerk transceiver module Vezel-optiek 10000 Mbit/s mini-GBIC/SFP 850 nm

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 0.3km at a maximum data rate of 10Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
  • Supports DDM (Digital Diagnostic Monitoring)
  • High quality and excellent reliability
  • 10 Gbps Maximum Data Rate
  • Compliant to IEEE802.3ae 10 Gigabit Standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy plug-and-play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • Connector: 1x LC Duplex
  • Wavelength: 850nm
  • Transmission Power: Minimum -5 dBm, Maximum -1 dBm
  • Empfangssensitivität: Minimum -11,5 dBm
  • For a distance of up to 0.3km
  • Safe fast-locking mechanism
  • 3.3V power supply
  • Operating temperature: 0 °C ~ 70 °C

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Soort aansluiting*
mini-GBIC/SFP
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
Maximaal bereik
300 m
Golflengte
850 nm
Tx vermogen (min)
-5 dBmW
Tx vermogen (max)
-1 dBmW
Rx vermogen (min)
-11,5 dBmW
Ethernet interface type
10 Gigabit Ethernet
Netwerkstandaard
IEEE 802.3ae
Digital Diagnostics Monitoring (DDM)
Ja

Kenmerken

Kleur van het product
Zilver
Plug and play
Ja
Hot-plug ondersteuning
Ja
Land van herkomst
China
Merkcompatibiliteit
Cisco

Verpakking

Breedte verpakking
115 mm
Diepte verpakking
30 mm
Verpakkingsvolume
310,5 cm³
Gewicht verpakking
40 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
