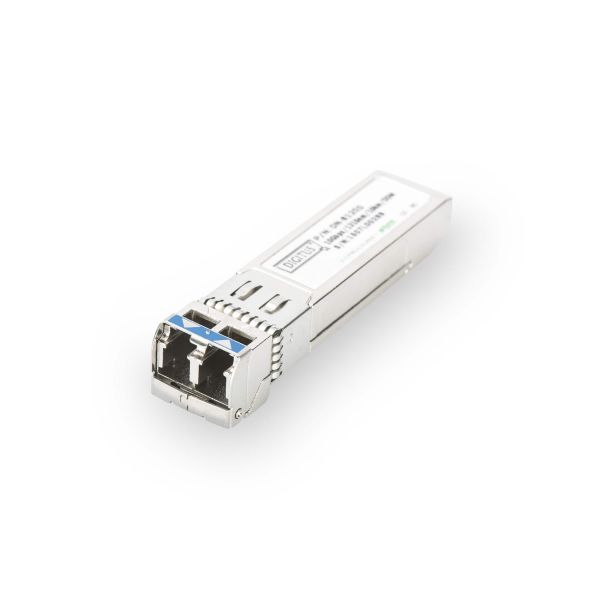

Digitus DN-81200-01 netwerk transceiver module Vezel-optiek 10000 Mbit/s SFP+ 850 nm
Digitus DN-81200-01, Vezel-optiek, 10000 Mbit/s, SFP+, LC, 300 m, 850 nm
Nog 2 beschikbaar (bel voor reservering)
Fabrikant
Digitus
MPN
DN-81200-01
EAN
4016032446149
€ 73,00
excl. BTW
(€ 88,33 incl. BTW)
Digitus DN-81200-01 netwerk transceiver module Vezel-optiek 10000 Mbit/s SFP+ 850 nm
The plug and play fiber connection
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 0.3km at a maximum data rate of 10Gbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 0.3km at a maximum data rate of 10Gbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- Mini GBIC SFP (Small Form Factor Pluggable) module
- Supports DDM (Digital Diagnostic Monitoring)
- High quality and excellent reliability
- 10 Gbps Maximum Data Rate
- Compliant to IEEE802.3ae 10 Gigabit Standard
- Class 1 laser product compliant with EN 60825-1
- Easy plug-and-play installation
- MSA (Multi Source Agreement) compliant
- Hot pluggable
- Connector: 1x LC Duplex
- Wavelength: 850nm
- Transmission Power: Minimum -5 dBm, Maximum -1 dBm
- Empfangssensitivität: Minimum -11,5 dBm
- For a distance of up to 0.3km
- Safe fast-locking mechanism
- 3.3V power supply
- Operating temperature: 0 °C ~ 70 °C
- Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Prestatie
SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Soort aansluiting*
SFP+
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
Maximaal bereik
300 m
Golflengte
850 nm
Tx vermogen (min)
-5 dBmW
Tx vermogen (max)
-1 dBmW
Rx vermogen (min)
-11,5 dBmW
Ethernet interface type
10 Gigabit Ethernet
Digital Diagnostics Monitoring (DDM)
Ja
Kenmerken
Plug and play
Ja
Hot-plug ondersteuning
Ja
Kenmerken
Land van herkomst
China
Merkcompatibiliteit
MSA Compliant
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 70 °C
Verpakking
Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
93 mm
Diepte verpakking
120 mm
Verpakkingsvolume
357,12 cm³
Gewicht verpakking
40 g
Logistieke gegevens
Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
