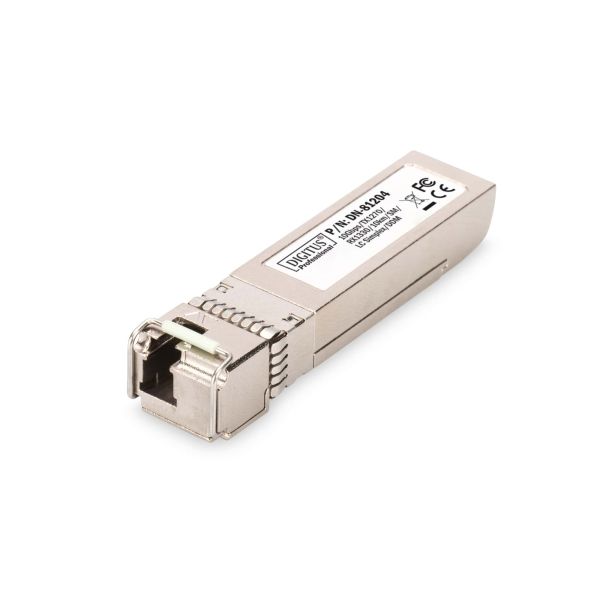

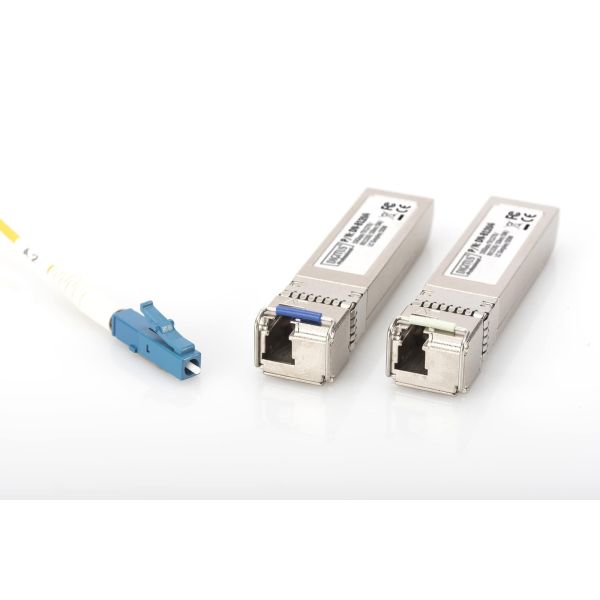

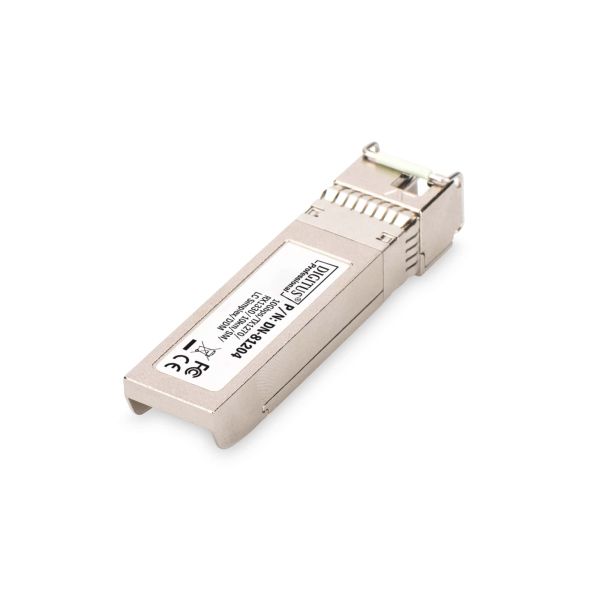

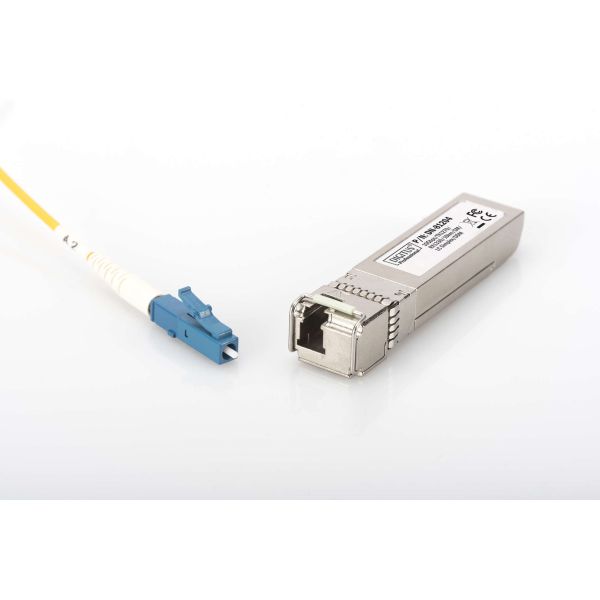

Digitus DN-81204 netwerk transceiver module Vezel-optiek 10000 Mbit/s SFP+
Digitus DN-81204, Vezel-optiek, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
26 op voorraad (nu besteld = vandaag verzonden)
€ 58,00
excl. BTW
€ 58,00
excl. BTW
excl. BTW
4,5
·
4,0
·
Gratis verzending vanaf €250
The plug and play fiber connection
- The Plug & Play fiber optic link enables quick installation
- Distance up to 10km at a maximum data rate of 10Gbps
- Sends data in high quality and additionally provides excellent reliability
- Bidirectional WDM Module - Only one fiber is needed
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- The Plug & Play fiber optic link enables quick installation
- Distance up to 10km at a maximum data rate of 10Gbps
- Sends data in high quality and additionally provides excellent reliability
- Bidirectional WDM Module - Only one fiber is needed
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
- SFP+ (Small Form Factor Pluggable) module
- Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
- Connector: 1x LC Simplex
- Bidirectional WDM Module - Only one fiber is needed
- Wavelength: TX 1270 / RX 1330, Singlemode
- 10Gbps Maximum Data Rate
- Transmission power: minimum -5 dBm, maximum 0.5 dBm
- Sensitivity Receiving Power: Minimum -13 dBm
- For a Distance of up to 10km
- Safe fast-locking mechanism
- Supports DDM-Feature (Digital Diagnostic Monitoring)
- High quality and excellent reliability
- Compliant to IEEE 802.3ae 10 Gigabit Standard
- Class 1 laser product compliant with EN 60825-1
- Easy plug-and-play installation
- MSA (Multi Source Agreement) compliant
- Hot pluggable
- 3.3V power supply
- Suitable for 09/125µm Singlemode Fiber Cables
- Operating temperature: 0 °C ~ 70 °C
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Productassistent
Vraag mij alles over dit product
Onze digitale assistent geeft direct antwoord op je productvragen, maar kan zich soms vergissen.
Prestatie
SFP transceiver type
Vezel-optiek
Maximale overdrachtssnelheid van gegevens
10000 Mbit/s
Soort aansluiting
SFP+
Single-mode glasvezelkabel (SMF) ondersteund
Ja
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
Vezelkabel diameters ondersteund
9/125 µm
Maximaal bereik
10000 m
Tx-golflengte (max)
1270 nm
Rx-golflengte (max)
1330 nm
Ethernet interface type
10 Gigabit Ethernet
Netwerkstandaard
IEEE 802.3ae
Digital Diagnostics Monitoring (DDM)
Ja
Fibre channel-poorten
1
Kenmerken
Kleur van het product
Metallic
Kenmerken
Plug and play
Ja
Hot-plug ondersteuning
Ja
Land van herkomst
China
Merkcompatibiliteit
MSA Compliant
Certificering
EN 60825-1
Verpakking
Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
93 mm
Diepte verpakking
117 mm
Verpakkingsvolume
348,192 cm³
Gewicht verpakking
58,333 g
Logistieke gegevens
Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85369010
