Digitus DN-81313, 10 m, QSFP+, QSFP+

Niet op voorraad

Fabrikant Digitus
MPN DN-81313
EAN 4016032460121

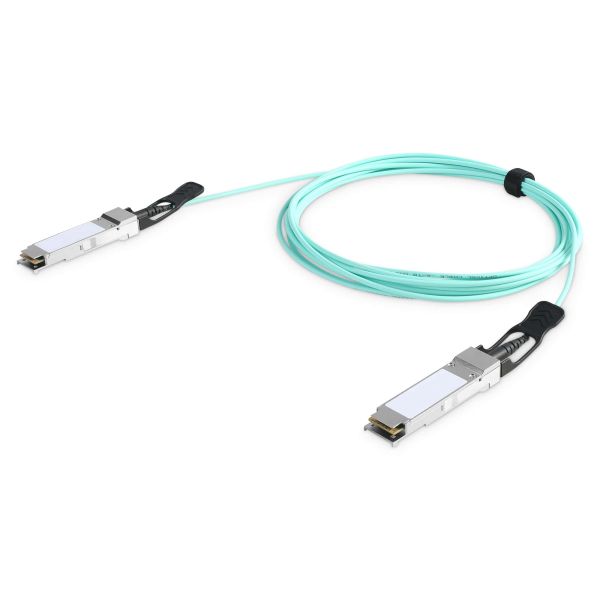

Digitus DN-81313 Glasvezel kabel 10 m QSFP+ Aqua-kleur

High bandwidth without delays or signal loss

- QSFP+ 40G 10 m AOC cable
- 2.125-41.2 Gbps supported data rate
- Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

Active DIGITUS® 40G QSFP+ AOC cables are a high-performance, energy-saving, short-range connectivity solution that supports InfiniBand QDR/DDR/SDR,12.5G/10G/8G/8G/4G/4G/2G fibre channels, PCIe and SAS. They are compliant with the QSFP MSA and IEEE P802.3ba. Four full-duplex channels are used, with each channel capable of transferring data at rates of up to 11.3 Gbps, thus ensuring an aggregated rate of 45.2 Gbps. Active DIGITUS® 40G QSFP+ AOC cables provide increased port density and cost savings in the overall system.
  • 10 m maximum distance
  • 2.125-41.2 Gbps supported data rate
  • Supported applications: 12.5G fibre channel, 10G fibre channel, 8G fibre channel, 4G fibre channel and 2G fibre channel
  • Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL
  • DDM/DOM support
  • Temperature range: 0 to +70 °C
  • Connectors: QSFP
  • Power: +3.3 V supply voltage
  • Power consumption: <1.5 W
  • 850 nm wavelength multimode fibre

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Snoerlengte*
10 m
Aansluiting 1*
QSFP+
Aansluiting 2*
QSFP+
Aansluiting 1 type*
Mannelijk
Aansluiting 2 type*
Mannelijk
Kleur van het product*
Aqua-kleur
Full duplex
Ja
Draad modus structuur
Multimode
Ondersteunde golflengten
850 nm
Ethernet interface type
40 Gigabit Ethernet
Overdrachtssnelheid
41,2 Gbit/s
Land van herkomst
China

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
260 mm
Diepte verpakking
260 mm
Verpakkingsvolume
1352 cm³
Gewicht verpakking
100 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85447000
