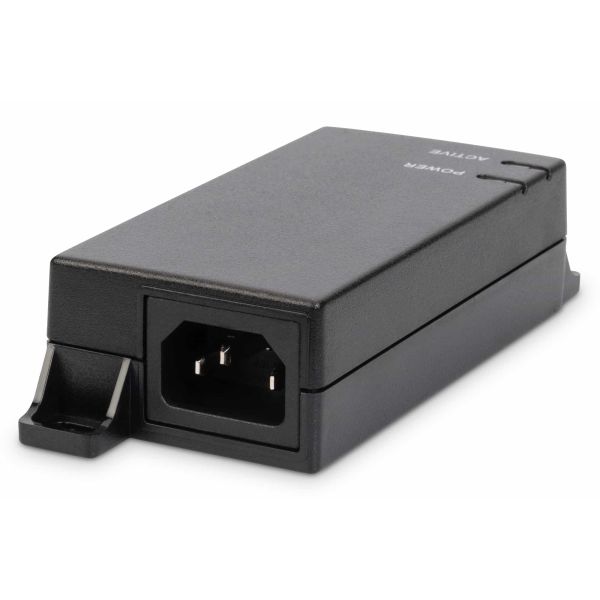

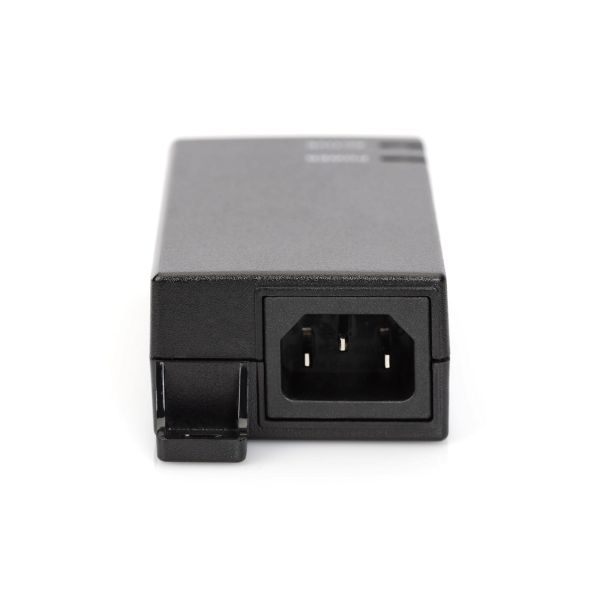

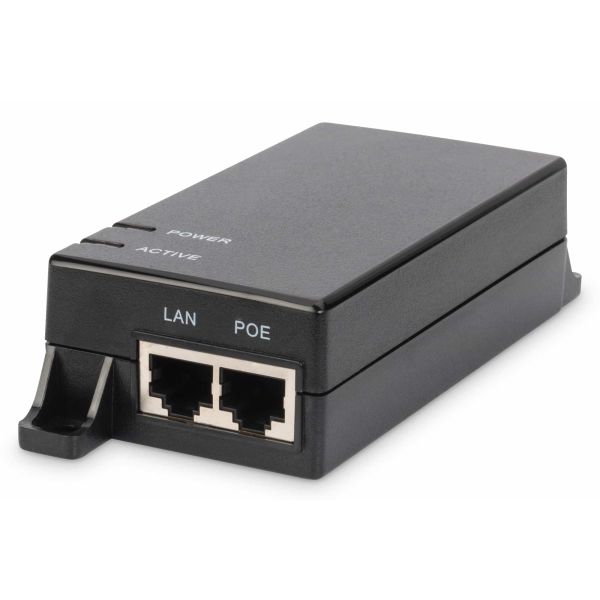

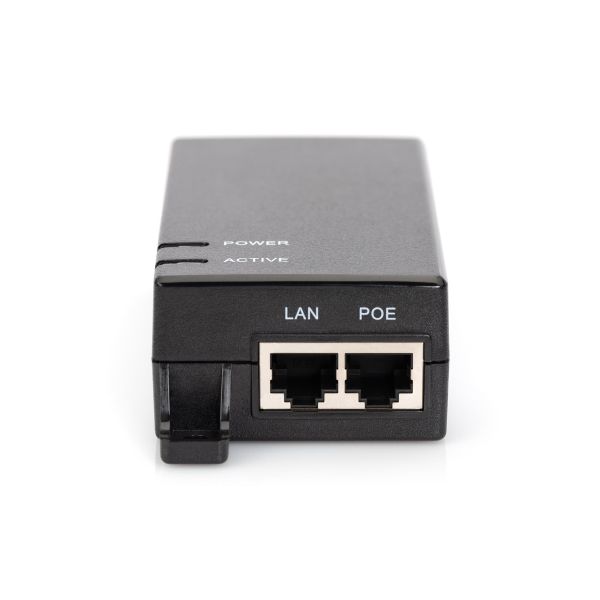

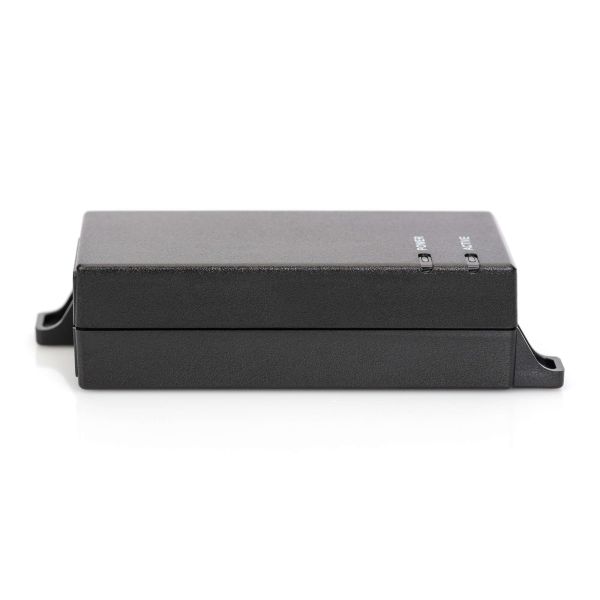

Digitus DN-95102-1 PoE adapter & injector Gigabit Ethernet 48 V

Digitus DN-95102-1, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, China, 48 V, 15,4 W

Ruim op voorraad

Fabrikant Digitus
MPN DN-95102-1
EAN 4016032441120
€ 76,00 excl. BTW

Digitus DN-95102-1 PoE adapter & injector Gigabit Ethernet 48 V

Minimize cabling for wireless APs, IP phones, or any other PoE compatible device!

- Meets the 802.3af PoE standard
- 48V output voltage, 15.4 Watt
- Cable connection: 10/100/1000 Mbps
- Power consumption: 1.6W max.

The Digitus PoE Injector minimizes your cabling when installing PoE compatible devices such as IP network cameras. Only the Ethernet cable is used for the data feed and power supply for the devices. This eliminates the need to install a separate power line, and you can extend your network where there are no power outlets or power lines. The injector is fully compliant with the IEEE 802.3af PoE standard and delivers output power of up to 15.4W.
  • Meets the 802.3af PoE standard
  • 48V output voltage, 15.4 Watt
  • RJ45 LAN input
  • LAN (RJ45) output, power supply via pin: 4/5(+), 7/8(-)
  • Cable connection: 10/100/1000 Mbps
  • The output has a current limit, a short-circuit protection and an automatic terminal device detection and classification
  • Power consumption: 1.6W max.
  • Power supply: 100-240V AC, 0.8A
  • Operating temperature: -5°C - 45°C
  • Dimensions (mm): 134(L) x 56(W) x 33(H)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3af

Kenmerken

LED-indicatoren
Ja
Land van herkomst
China

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
1
Aansluiting voor netstroomadapter
Ja

Energie

Stroom via Ethernet (PoE)*
48 V
Uitgangsvermogen
15,4 W
AC-adapter ingangsspanning
100 - 240 V
Stroom
0.8 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 45 °C

Gewicht en omvang

Afmetingen (B x D x H)
56 x 134 x 33 mm

Verpakking

Breedte verpakking
140 mm
Diepte verpakking
160 mm
Hoogte verpakking
50 mm
Gewicht verpakking
863 g
Verpakkingsvolume
1108 cm³

Inhoud van de verpakking

Inclusief netsnoer
Ja
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85044095
(Buitenste) hoofdverpakking breedte
315 mm
(Buitenste) hoofdverpakking lengte
475 mm
(Buitenste) hoofdverpakking hoogte
340 mm
(Buitenste) hoofdverpakking brutogewicht
17,3 kg
