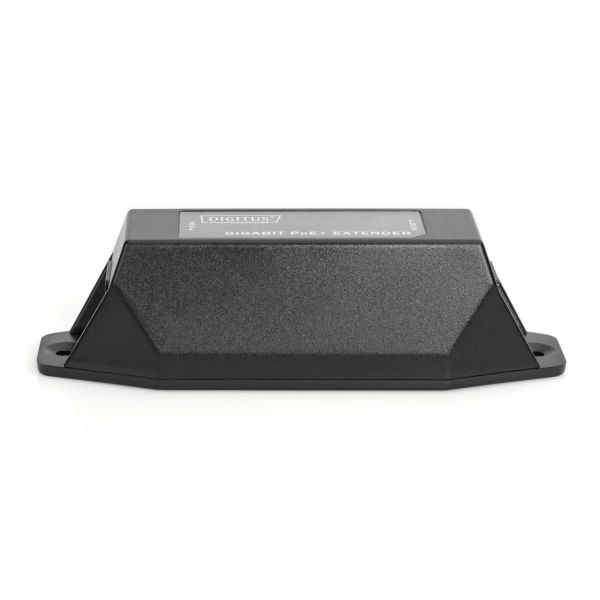

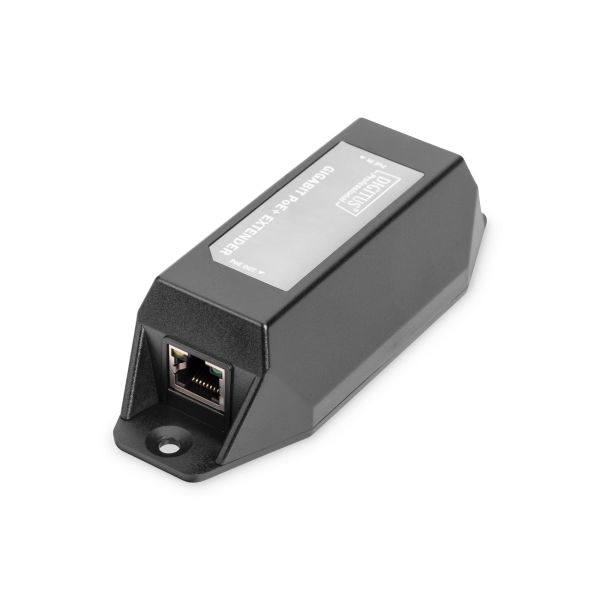

Digitus DN-95123 PoE adapter & injector Gigabit Ethernet
Digitus DN-95123, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, IEEE 802.3at, Volledig, Half, Zwart, 100 m
Ruim op voorraad
Fabrikant
Digitus
MPN
DN-95123
EAN
4016032391531
€ 51,00
excl. BTW
€ 51,00
excl. BTW
excl. BTW
Digitus DN-95123 PoE adapter & injector Gigabit Ethernet
Extend an existing PoE connection over the 100m distcance limit
- Gigabit Ethernet
- Fanless design ensures a quiet operation
- Fixing points for wall installation
- Requires no external power supply unit
- Automatic detection of PoE-enabled devices

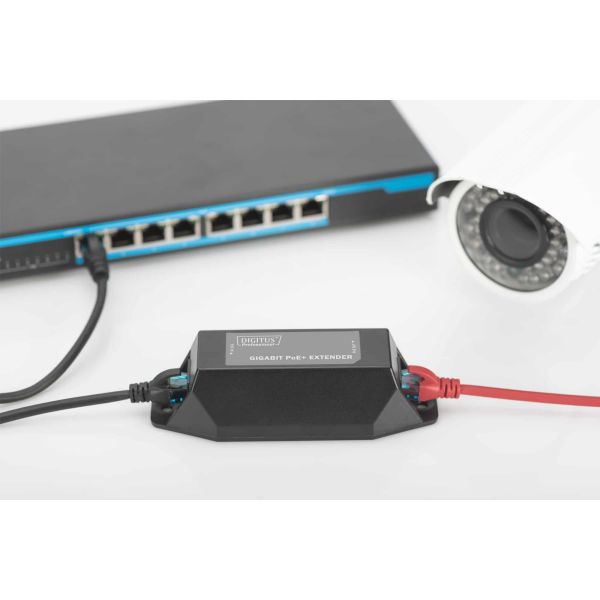

The DIGITUS Gigabit PoE+ Extender, uses the advanced network cable and power technology to extend your Ethernet signal up to 100m per unit (total 500m). The Extender is self powered by PoE, so there is no additional power supply needed. This enables you to use the device even where no power lines or outlets are available. You can greatly extend the transmission distance and providing PoE at the same time. It is for example a perfect, inexpensive and time saving solution for security cameras.
- Gigabit Ethernet
- Fanless design ensures a quiet operation
- Fixing points for wall installation
- Requires no external power supply unit
- Automatic detection of PoE-enabled devices
The DIGITUS Gigabit PoE+ Extender, uses the advanced network cable and power technology to extend your Ethernet signal up to 100m per unit (total 500m). The Extender is self powered by PoE, so there is no additional power supply needed. This enables you to use the device even where no power lines or outlets are available. You can greatly extend the transmission distance and providing PoE at the same time. It is for example a perfect, inexpensive and time saving solution for security cameras.
- Ethernet Speed: 10/100/1000Mbps Gigabit Half/Full Duplex
- PoE Standard: IEEE802.3af / IEEE802.3at
- Transmission range up to 500 m (by cascading)
- Cascadable up to 3 extender (af.) and up to 4 extender (at.)
- Plug-and-Play Installation - No configuration necessary
- Maximum power output: 22 Watts
- Status LEDs on the device (Power Indicator and Network indicator)
- Circuit isolation protection
- Fixing points for wall installation
- Pin Feet PoE Input: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
- Pin Feet PoE Output: 1/2 (-), 3/6 (+)
- Operating Temperature: -10 to 45°C
- Dimensions (L x W x H): 127 mm x 47 mm x 37 mm
- Weight: 140g
- Color: Black
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Netwerk
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at
Duplex systeem
Volledig, Half
Kenmerken
Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Plug and play
Ja
Maximale afstand
100 m
LED-indicatoren
Netwerk, Stroom, Status
Land van herkomst
China
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
2
Energie
Uitgangsvermogen
22 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-10 - 45 °C
Gewicht en omvang
Gewicht
90 g
Afmetingen (B x D x H)
60 x 145 x 40 mm
Verpakking
Breedte verpakking
135 mm
Diepte verpakking
55 mm
Gewicht verpakking
150 g
Verpakkingsvolume
334,125 cm³
Inhoud van de verpakking
Aantal producten inbegrepen
1 stuk(s)
Gebruikershandleiding
Ja
Logistieke gegevens
Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85044095
