Digitus DN-95317 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grijs

Digitus DN-95317, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant Digitus
MPN DN-95317
EAN 4016032441038
€ 114,00 excl. BTW

Digitus DN-95317 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grijs

Ideal for use in 10" wall cabinets

- 8-Port 10/100/1000 Base-T with PoE support
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x and IEEE 802.3af/at network standards
- Supports non-blocking, non-head-of-line forwarding
- Includes mounting material for 10-inch installation
- PoE budget: 80 w max.

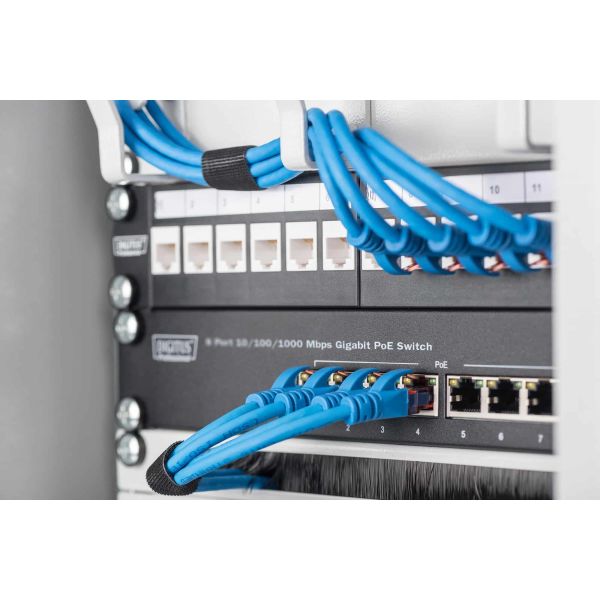

The DIGITUS® 8-Port Gigabit Ethernet PoE Switch provides 8 10/100/1000 Mbps RJ-45 ports with PoE support. All ports support the Auto MDI/MDIX function, which eliminate the need for crossover cables and uplink ports. Low costs, simple use and high performance are the strengths of the DIGITUS® 8-Port Gigabit Ethernet PoE Switch and thus make it an excellent choice for your network. Due to its compact dimensions, the switch can be installed in a 10-inch wall cabinet. The mounting angles are included.
  • 8 x 10/100/1000Base-T
  • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x and IEEE 802.3af/at network standards
  • Supports non-blocking, non-head-of-line forwarding
  • Supports back pressure and bandwidth control in each port
  • Store and forward technology for optimized data transfer
  • Automatic speed and half/full duplex recognition/adjustment
  • 20/200/2000 Mbit in full duplex mode
  • Auto MDI/MDI-X function
  • Backplane with 16Gbps
  • Supports up to 8K MAC addresses
  • Integrated power supply unit
  • Maximum power consumption 96W
  • Dimensions: (W x D x H): 250x150x42 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3at
10G support*
Nee
Full duplex
Ja
Auto MDI/MDI-X
Ja
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
8000 entries

Design

Rack-montage*
Ja
Kleur van het product
Grijs
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Energie

Vermogensverbruik (max)
96 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
80 W

Gewicht en omvang

Breedte
250 mm
Diepte
150 mm
Hoogte
42 mm

Verpakking

Breedte verpakking
240 mm
Diepte verpakking
320 mm
Verpakkingsvolume
5145,6 cm³
Gewicht verpakking
1,65 kg

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
