Digitus DN-95323-1 netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Grijs

Digitus DN-95323-1, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant Digitus
MPN DN-95323-1
EAN 4016032457862
€ 68,00 excl. BTW

Digitus DN-95323-1 netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Grijs

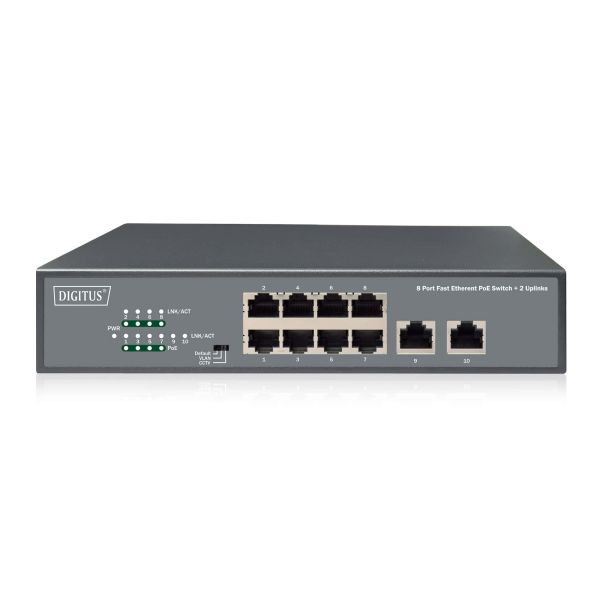

Network Switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks

- 8-port 10/100Base-TX with PoE support
- 2-port Fast Ethernet uplink
- Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3q, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
- The VLAN mode provides a port-based VLAN function that prevents multicast or broadcast requests from interfering with each other
- The Extensive mode offers range extension of up to 250 m at 10 Mbps
- Maximum PoE power of 120 watts

Fast Ethernet PoE Switch,8-port PoE + 2-port uplink, 120W PoE budget
  • 8-port 10/100Base-TX with PoE support
  • 2-port Fast Ethernet uplink
  • Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3q, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
  • With integrated DIP switch to enable VLAN or extensive mode
  • Extensive mode for ranges up to 250 meters with a transmission rate of 10Mbps
  • PoE current output 55 V DC, max. 30 W per port
  • PoE power supply mode A, PIN 1/2(+), 3/6(-)
  • Supports non-blocking, non-head-of-line forwarding
  • Supports back pressure and bandwidth control in each port
  • Store and forward technology for optimized data transfer
  • Automatic speed and half/full duplex recognition/adjustment
  • Auto MDI/MDI-X function
  • Backplane with 2 Gbps
  • Supports up to 8K MAC addresses
  • Integrated power supply unit
  • Maximum PoE power of 120 watts
  • Maximum output line 125 watts
  • Fanless design

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)

Netwerk

Netwerkstandaard*
IEEE 802.3at
10G support*
Nee
Full duplex
Ja
Auto MDI/MDI-X
Ja
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
2 Gbit/s
MAC-adrestabel*
8000 entries
Store-and-forward
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Kleur van het product
Grijs
LED-indicatoren
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee

Design

Land van herkomst
China

Energie

Vermogenstoevoer inclusief*
Ja
Vermogensverbruik (max)
125 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
8
Totaal Power over Ethernet (PoE)-budget
120 W

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Breedte verpakking
310 mm
Diepte verpakking
200 mm
Verpakkingsvolume
4960 cm³
Gewicht verpakking
180 g

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Fast Ethernet
