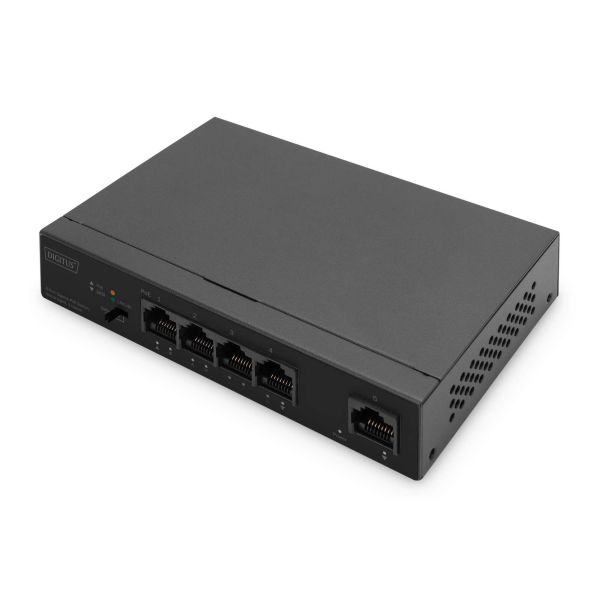

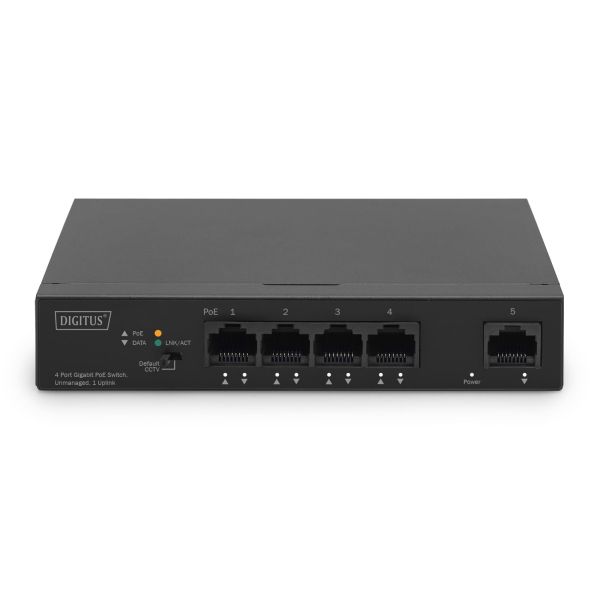

Digitus DN-95330-1 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Digitus DN-95330-1, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Ruim op voorraad

Fabrikant Digitus
MPN DN-95330-1
EAN 4016032484974
€ 100,00 excl. BTW

Digitus DN-95330-1 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Gigabit Ethernet PoE Switch 4-port PoE + 1-port uplink, 60W PoE budget

- Thanks to the PoE function, no additional power supply unit is required for the connected devices
- Minimize cabling for wireless APs, IP telephones, and any other PoE capable device
- Fanless design – perfect for office environments and meeting rooms
- Gigabit Ethernet Speed
- Additional Uplink Port
- PoE power budget: 60 Watts
- Supports PoE Power up to 32W for each PoE port
- Support One-Key CCTV and PD-ALIVE functions

The DIGITUS 5-Port Gigabit Desktop Switch with four Power over Ethernet ports and one additional uplink Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives. It also allows you to extend your network in places where there are no power supply cables or sockets available. The switch does not require any configuration and therefore guarantees quick and seamless integration into the network. Moreover, the switch’s fanless design ensures soundless operation, which makes this device the perfect solution for office environments and meeting rooms.
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
  • Support IEEE802.3af, IEEE802.3at standards
  • Supports PoE: One to four ports (802.af, 15.4 Watts) or for two ports (802.3.at, 30 Watts)
  • Automatically detect PD devices
  • PoE power budget: 60 Watts
  • Auto detect power device; will not burned non-standard PoE device or normal PoE switch
  • Supports port power supply prioritization, guarantee the continuous power supply of key nodes
  • Line-speed forwarding, intelligent identification
  • Supports storage – and- forward for Data exchange
  • Support One-Key CCTV and PD-ALIVE functions
  • Ethernet speed: Gigabit
  • MAC Address Table: 2K, Auto-learning, Auto-aging
  • Switching Capacity: 10Gbps
  • Fanless
  • Power Supply: 65W
  • PoE Power on RJ45: Mode A 1/2(+),3/6(-)
  • Jumbo frame: 9K Bytes
  • Dimensions (L*W*H): 140*76.7*28mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Auto MDI/MDI-X
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
10 Gbit/s
MAC-adrestabel*
2000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart
LED-indicatoren
Ja
Land van herkomst
China

Prestatie

Fanloos
Ja

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
Vermogensverbruik (max)
3 W
Stroomspanning bescherming
Overspanning, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
4
Vermogen per poort Power over Ethernet (PoE)
15,4 W
Totaal Power over Ethernet (PoE)-budget
62 W

Gewicht en omvang

Breedte
76,7 mm
Diepte
140 mm
Hoogte
28 mm
Gewicht
630 g

Verpakking

Snelstartgids
Ja
Breedte verpakking
165 mm
Diepte verpakking
60 mm
Hoogte verpakking
192 mm
Verpakkingsvolume
1900,8 cm³
Gewicht verpakking
722,5 g

Logistieke gegevens

Code UK-handelstarief
85176200

Overige specificaties

Netvoeding
65 W
