Digitus DN-95340 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Digitus DN-95340, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Nog 11 beschikbaar

Fabrikant Digitus
MPN DN-95340
EAN 4016032390596
€ 122,00 excl. BTW

Digitus DN-95340 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Network Switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks

- Thanks to the PoE function, no additional power supply unit is required for the connected devices
- Minimize cabling for wireless APs, IP telephones, and any other PoE capable device
- Fanless design – perfect for office environments and meeting rooms
- Gigabit Ethernet Speed
- PoE power budget: 131 Watts

The DIGITUS 8-Port Gigabit Desktop Switch with eight Power over Ethernet ports, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives. It also allows you to extend your network in places where there are no power supply cables or sockets available. The switch does not require any configuration and therefore guarantees quick and seamless integration into the network. Moreover, the fanless design of the Switch ensures soundless operation, which makes this device the perfect solution for office environments and meeting rooms.

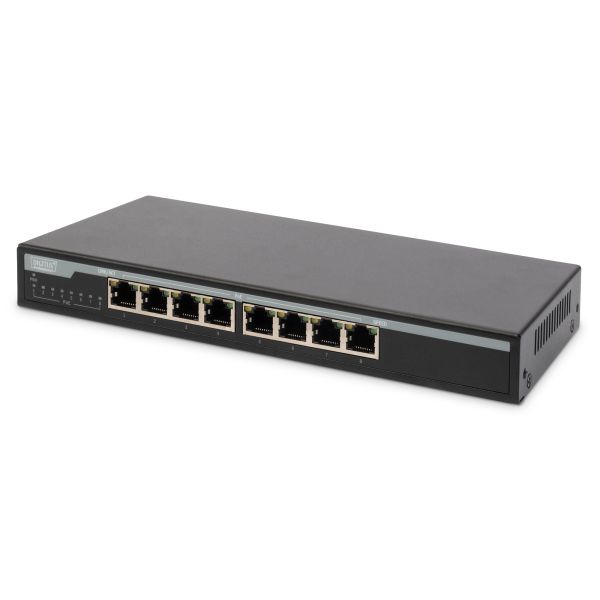

  • 8-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch
  • Ethernet IEEE802.3 / 802.3u / 802.3x/802.3ab / IEEE802.3 af/at
  • Power over Ethernet (PoE) - You only need one cable for power and data transfer
  • PoE power budget: 131 Watts (one to eight ports)
  • Supports PoE: Provides 8 PoE Port, each port output 30W maximum power
  • No configuration necessary
  • Maximum power output: 135 Watts
  • Status LEDs on each port
  • Pin Feet: V+ (RJ45 Pin 1, 2) V- (RJ45 Pin 3, 6)
  • Circuit isolation protection
  • Backplane: 16Gbps
  • MAC address table: 4K
  • Dimensions (L x W x H): 250 mm x 115 mm x 39 mm
  • Weight: 670g
  • Color: Black

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3at
10G support*
Nee
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
4000 entries

Design

Kleur van het product
Zwart
LED-indicatoren
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Energie

Vermogensverbruik (max)
135 W
Stroomspanning bescherming
Overspanning, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja

Power over Ethernet (PoE)

Hoeveelheid Power over Ethernet (PoE) ports
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
135 W

Gewicht en omvang

Breedte
250 mm
Diepte
115 mm
Hoogte
39 mm
Gewicht
670 g

Verpakking

Meegeleverde kabels
DC
Gebruikershandleiding
Ja
Inclusief AC-adapter
Ja
Breedte verpakking
165 mm
Diepte verpakking
100 mm
Verpakkingsvolume
4537,5 cm³
Gewicht verpakking
1,6 kg

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
