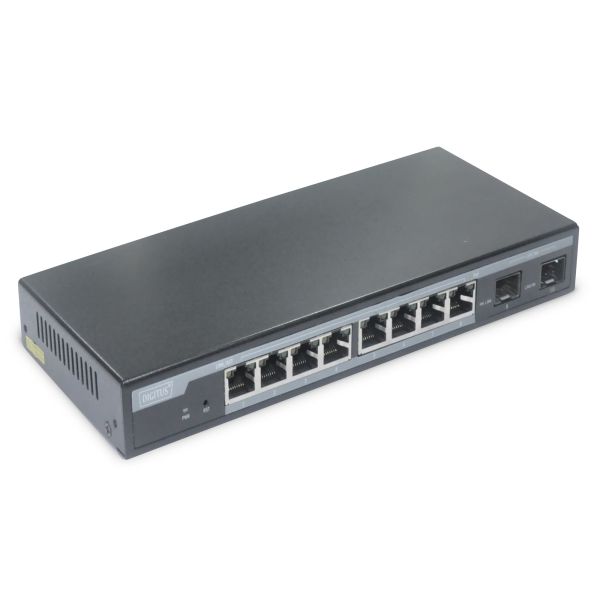

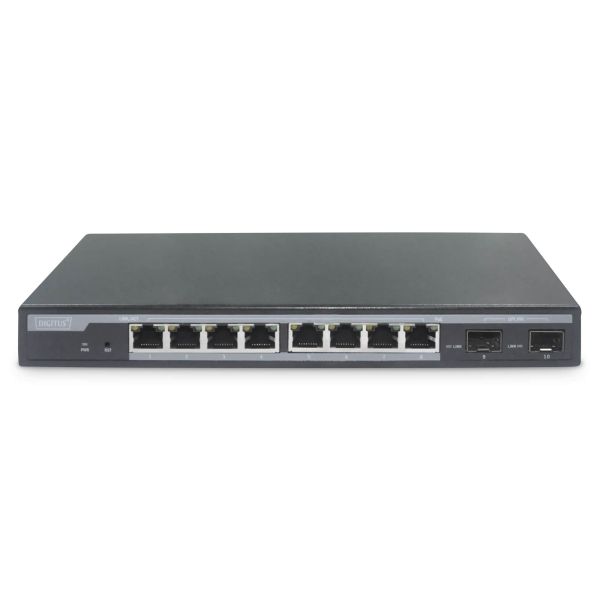

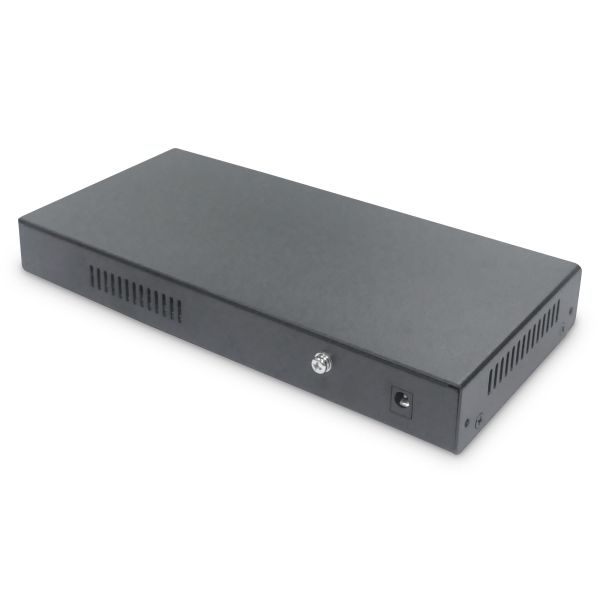

Digitus DN-95344 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Digitus DN-95344, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Ruim op voorraad

Fabrikant Digitus
MPN DN-95344
EAN 4016032455103
€ 138,00 excl. BTW

Digitus DN-95344 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Integrated Power over Ethernet (PoE) and network management features for small and medium network environments

- 8-Port 10/100/1000Base-T with PoE support
- 2-Port Gigabit SFP Uplink
- Meets the network standards IEEE 802.3, IEEE802.3ad, IEEE802.1d, IEEE 802.3u, IEEE 802.3ab, IEEE802.1p, IEEE802.1x, IEEE802.1q, IEEE802.1w, IEEE802.1s, IEEE802.1z, IEEE802.3ah, IEEE802.1ag, IEEE 802.3af and IEEE802.3at
- Supports Port Configuration, PoE Port Configuration, Port Mirroring, Bandwidth Control, Broadcast Power Control
- Maximum PoE power of 86 watts

The DIGITUS® L2 managed Gigabit PoE Switch with 8 PoE+ ports and 2 Gigabit SFP ports is ideal for use in various network topologies such as SMBs. The extensive L2 configuration options allow you to increase the performance and efficiency of your network. The switch offers the possibility to segment the network via VLAN, the QoS feature ensures smooth data exchange for time-critical applications. The Spanning Tree Protocol or the Port Trunk can be used to create fail-safe connections with other switches. The switch can be managed via the web interface, SNMP, SSH or Telnet.
  • 8-Port 10/100/1000Base-T with PoE support
  • 2-Port Gigabit SFP Uplink
  • PoE- Current output 44 ~ 57V DC voltage, max. 30 W per port
  • PoE Power Mode A, PIN 1/2(+), 3/6(-)
  • VLAN settings Port-based / Tag-based / MAC based / IP-based / Voice VLAN / VLAN mapping / Double VLAN
  • Trunk settings, Rapid Spanning Tree support (IEEE802.1d STP, IEEE802.1w RSTP, IEEEEEE802.1s MSTP
  • QoS support
  • MAC address filtering, TCP/UDP filtering
  • Tacacs+ and Radius authentication
  • Supports non-blocking, non-head-of-line forwarding
  • Supports back-pressure and bandwidth control at each port
  • Store-and-forward technology for optimized data transfer
  • Automatic speed and half/full duplex detection/adjustment
  • Auto MDI / MDI-X function
  • Backplane with 20Gbps
  • Supports up to 8K MAC addresses
  • Maximum output line 86 Watt

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.3at
10G support*
Nee
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
MAC-adrestabel*
8000 entries

Beveiliging

MAC adres filtering
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee

Design

Land van herkomst
China

Energie

Vermogenstoevoer inclusief*
Ja
DC voltage input
44 - 57 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
86 W

Verpakking

Snelstartgids
Ja
Breedte verpakking
115 mm
Diepte verpakking
39 mm
Verpakkingsvolume
1121,25 cm³
Gewicht verpakking
1,6 kg

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet interface type
Gigabit Ethernet
