Digitus DN-95451 energiedistributie 28 AC-uitgang(en) 0U Zwart

Digitus DN-95451, Basis, 0U, Eenfasig, Verticaal, Aluminium, Zwart

Nog 1 beschikbaar (bel voor reservering · levering verwacht binnen 8 dagen)Dit item is op voorraad bij een Europese distributeur. Onze leverancier kan dit item daar bestellen en vervolgens doorsturen. De levertijd is daarom ~8 werkdagen.

Wij lezen 's ochtends ~08:30 de voorraden van onze leveranciers in. Deze kan gedurende de dag door anderen besteld worden (niet alleen onze klanten; ook die van de leveranciers). Hoe later op de dag, hoe groter de kans dat deze (beperkte) voorraad is verkocht. Neem daarom contact op voor zekerheid en/of een reservering.

Fabrikant Digitus
MPN DN-95451
EAN 4016032485964
€ 363,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
Safe and professional power distribution solution for highly demanding IT requirements in network and server racks

- Optimal design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets

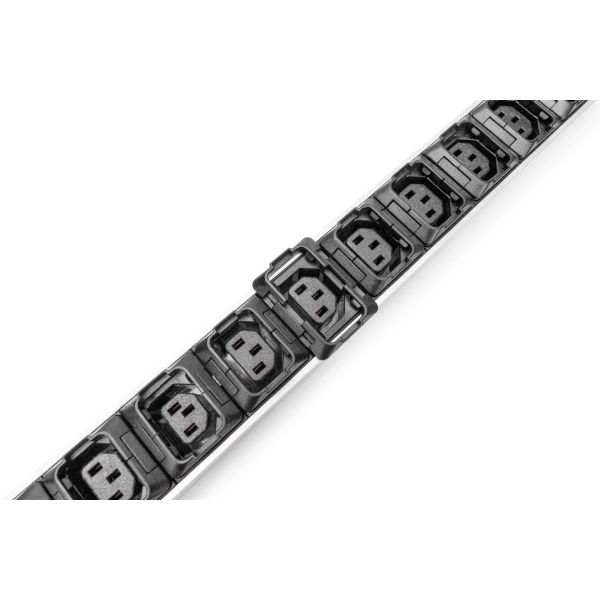

- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging

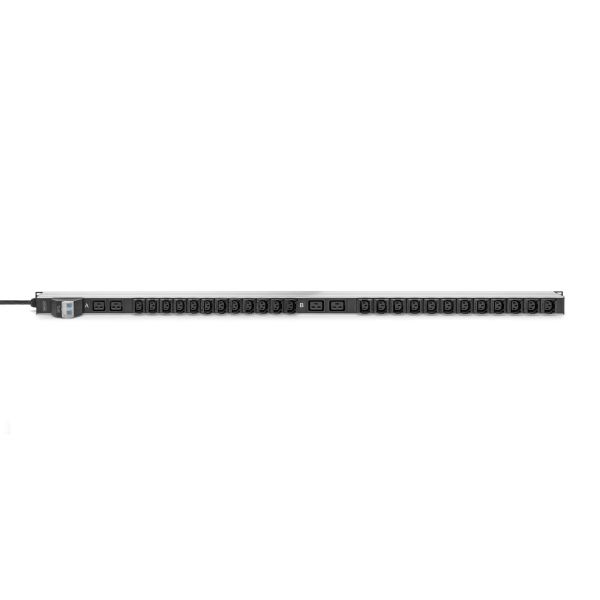

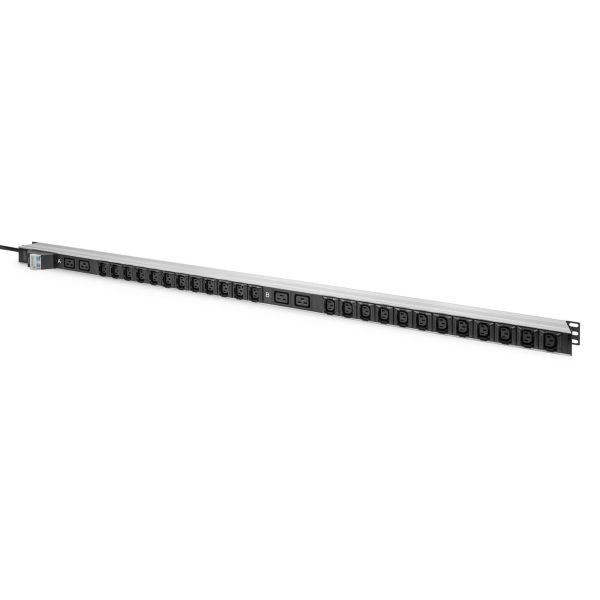

The DIGITUS® PDU are the perfect solution for your network or server cabinet. With regard to power distribution, it fulfills the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with extract protection. It is optimally designed for vertical installation providing the advantage of saving rack spaces for more equipments. The 28 outlet PDU has excellent physical characteristics and is engineered for an output of up to 8,000 W (250 V AC / 32 A) which helps in achieving best performances with the appropriate load.
  • Extraction protection at each output (for C13 and C19 standard cables)
  • Vertical installation
  • Housing: Aluminum
  • Plastic components made of ABS UL-94V-0

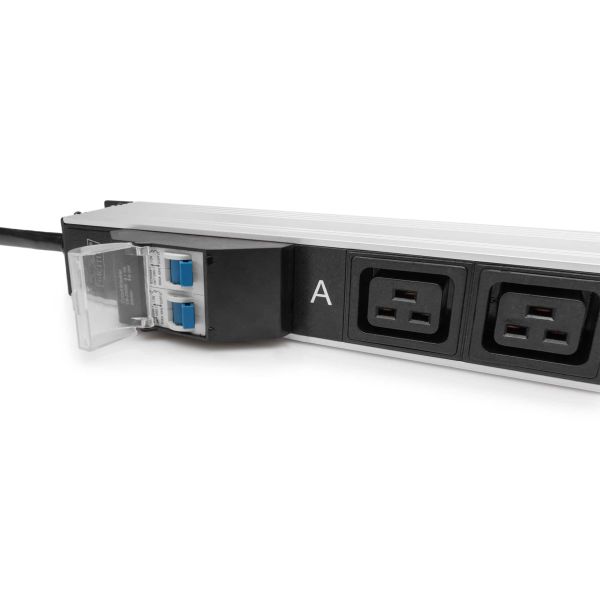

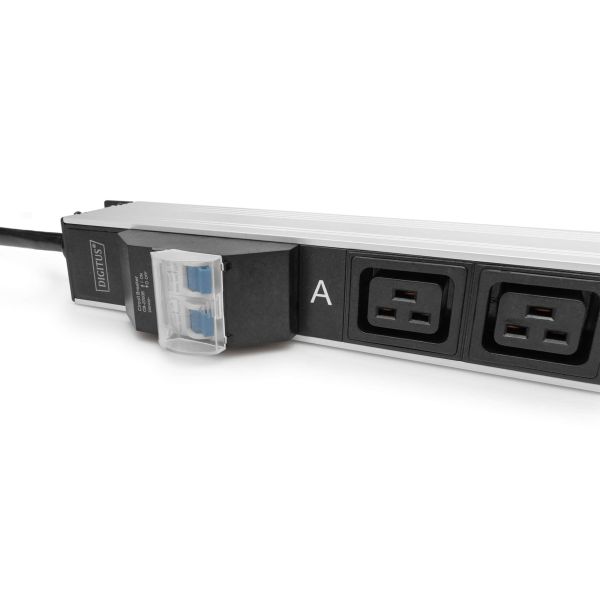

  • Integrated circuit breaker, 2 x 16 A

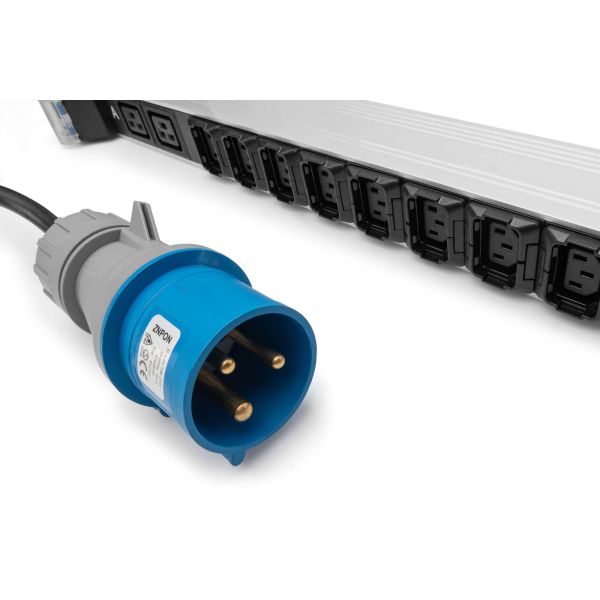

  • Mains plug: 4 mm², IEC60309 32 A plug
  • Cable: 3 m
  • Max. Load: 8000 W / 250 V AC / 32 A (50/60Hz)
  • Outlets: 24 x IEC60320 C13, 4 x IEC60320 C19
  • Output power: C13 (10A), C19 (16A)
  • Dimensions (L × W × D): 1388,5 x 45 x 60 mm
  • Colour: Black
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Design

PDU types*
Basis
Soort
Eenfasig
Rackcapaciteit*
0U
Montage
Verticaal
Materiaal behuizing
Aluminium
Kleur van het product
Zwart
Aan/uitschakelaar
Ja

Poorten & interfaces

Aantal AC uitgangen*
28 AC-uitgang(en)
Stekker
IEC 60309
Stopcontacttypes*
C13 stekker, C19 stekker
Aantal masterstopcontacten
24
Aantal slavestopcontacten
4

Kenmerken

Snoerlengte
3 m

Energie

Nominale input voltage*
250 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom (max.)*
32 A
Poort 1 uitgangsstroom
10 A
Poort 2 uitgangsstroom
16 A
Netspanning, in bedrijf
230 V

Energie

Spanning
230 V
Laad-capaciteit
7300 VA
Aantal fases
1
Stroomspanning bescherming
Kortsluiting
Maximaal vermogen
8000 W
Schakelaar
Ja

Gewicht en omvang

Breedte
45 mm
Diepte
1388,5 mm
Hoogte
60 mm

Verpakking

Gewicht verpakking
8 kg
Breedte verpakking
200 mm
Diepte verpakking
1600 mm
Verpakkingsvolume
25600 cm³

Inhoud van de verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
85444290
Land van herkomst
China
