Digitus DS-30105, PCIe, SATA, Man, Volledige hoogte / Laag profiel, PCIe 2.0, Zwart, Zilver

Ruim op voorraad

Fabrikant Digitus
MPN DS-30105
EAN 4016032484967

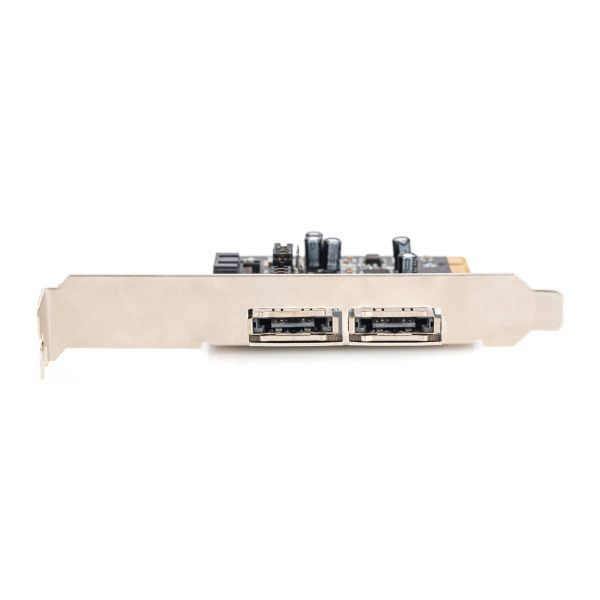

Digitus DS-30105 interfacekaart/-adapter Intern SATA

The quick and easy way to equip your PC for serial ATA speeds.

- The PCIE SATA Card expands the PC with 2 internal or 2 external SATA ports.

The Digitus PCI Express SATA Card expands the PC with 2 internal or 2 external SATA ports. Various devices can be connected to this card, such as SSDs, hard disks, DVD drives and more. This card enables the use of the latest and fastest hard disks with 6 GB/s and also offers backwards compatibility with older SATA drives with 1.5 GB/s or 3 GB/s. In addition, PCI Express 2.0 doubles the range of the existing PCI express bus for a faster data transmission rate. Each PCI Express 2.0 lane offers a capacity of up to 500 MB/s.
  • 2-Port SATA 6.0 GB/s
  • 1 x PCI Express Rev. 2.0
  • Four independent serial ATA channels for simultaneous connection of one serial ATA device on each channel
  • Supports Native Command Queuing (NCQ)
  • Supports ECRC and Advanced Error Reporting
  • Supports: Windows XP /Vista /Server 2003 /Server 2008, Windows 7, Windows 8, Windows 8.1, Windows 10 (32 / 64bit), Linux

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Gastheerinterface geslacht
Man
Output interface*
SATA
Uitbreidingskaart vormfactor
Volledige hoogte / Laag profiel
Uitbreidingskaartstandaard
PCIe 2.0
SATA herziening
3.0
Aantal eSATA-poorten
2
Aantal Internal SATA ports
2

Design

Intern*
Ja
Kleur van het product
Zwart, Zilver
Bedoeld voor
PC
Land van herkomst
China

Kenmerken

Data transfer snelheid (max)
6 Gbit/s
NCQ (Native command queuing)
Ja

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2003, Windows Server 2008

Verpakking

Aantal per verpakking
1 stuk(s)
Montagebeugels meegeleverd
Ja
Snelle installatiehandleiding
Ja
Breedte verpakking
140 mm
Diepte verpakking
30 mm
Hoogte verpakking
155 mm
Gewicht verpakking
140 g
Verpakkingsvolume
651 cm³

Logistieke gegevens

Code UK-handelstarief
84718000
