Digitus DS-30225, PCIe, USB 3.2 Gen 2 (3.1 Gen 2), Volledige hoogte / Laag profiel, PCIe 2.0, SATA 15-pin, Groen

Ruim op voorraad

Fabrikant Digitus
MPN DS-30225
EAN 4016032460077

Digitus DS-30225 interfacekaart/-adapter Intern USB 3.2 Gen 2 (3.1 Gen 2)

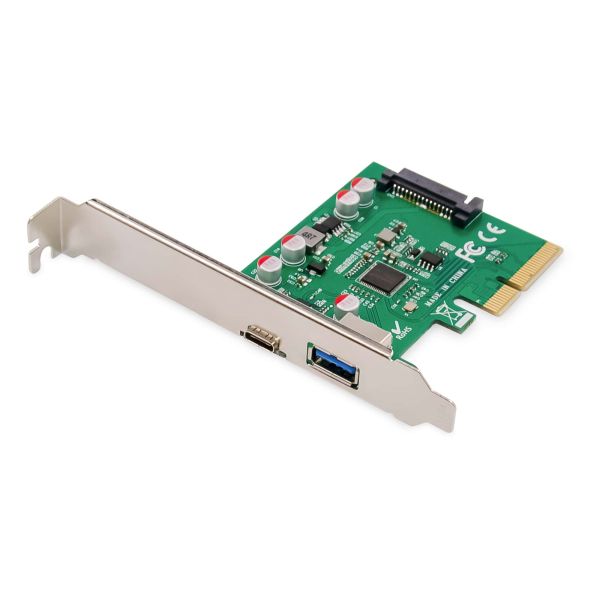

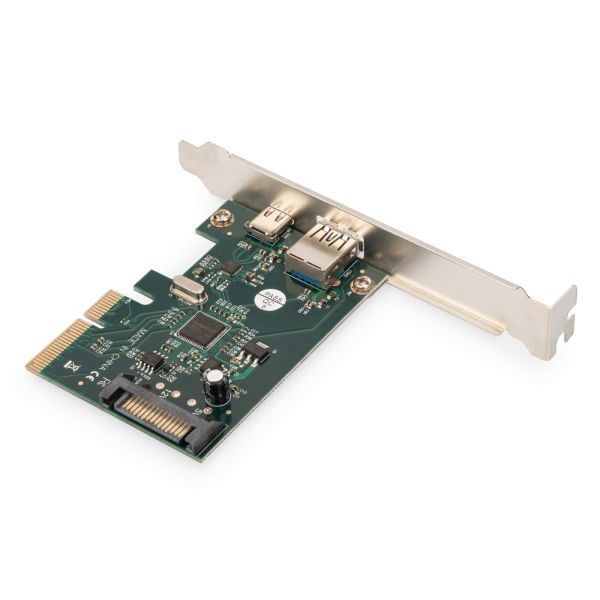

USB 3.1 PCI Express interface card with 2 external USB 3.1 ports: 1x USB-A socket, 1x USB Type-C™ socket for latest generation devices

- USB 3.1 SuperSpeed up to 10 Gbps
- 1x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ socket
- 1X SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) A socket
- Supports data transfer rates of 10G / 5G / 480 / 12 / 1.5 Mbps

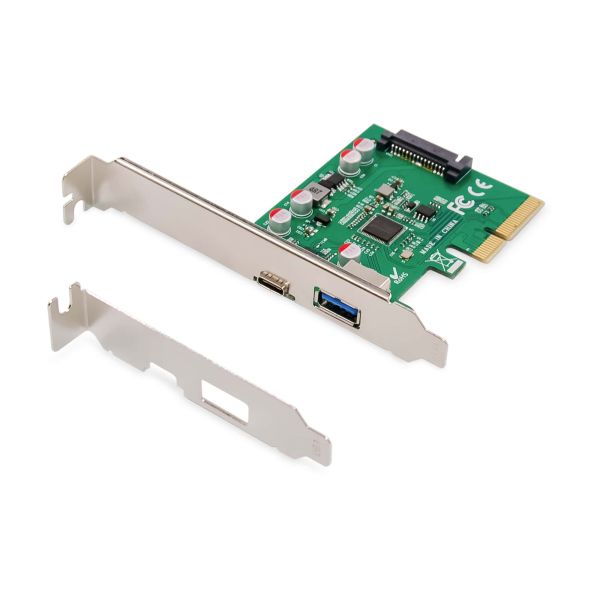

Extend your PC with two external USB 3.1 ports that enable you to connect different USB devices to your computer, such as docking stations, card readers or external enclosures. The card has 2 external USB 3.1 ports: 1x USB-A socket, 1x USB Type-C™ socket and enables a data transfer rate of up to 10 Gbps. The card can also be installed in small computer enclosures via the included low profile aperture.
  • USB 3.1 SuperSpeed up to 10 Gbps
  • 1x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ socket
  • 1X SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) A socket
  • Supports data transfer rates of 10G / 5G / 480 / 12 / 1.5 Mbps
  • Power USB Type-C™ port 5 V / 3 A
  • Power USB Type-A port 5 V / 900 mA
  • SATA 15-pin power connector for additional power supply from the motherboard
  • Supports 4-way PCI Express v2.0
  • Supports eXtensible Host Controller Interface (xHCI) specification 1.1
  • Supports multiple INs
  • Overvoltage protection
  • Supports remote wakeup function via keyboard or mouse
  • Supported operating systems: Windows 7/8/8.1/10, Linux

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
USB 3.2 Gen 2 (3.1 Gen 2)
Uitbreidingskaart vormfactor
Volledige hoogte / Laag profiel
Uitbreidingskaartstandaard
PCIe 2.0
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
Type SATA-voedingsconnector
SATA 15-pin

Design

Intern*
Ja
Kleur van het product
Groen
Land van herkomst
China

Kenmerken

Data transfer snelheid (max)
10 Gbit/s

Energie

Spanning
5 V
Output current
3 A

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows 8.1

Minimale systeemeisen

Ondersteunt Linux
Ja

Gewicht en omvang

Breedte
153 mm
Diepte
30 mm
Hoogte
141 mm
Gewicht
50 g

Verpakking

Aantal
1
Meegeleverde drivers
Ja
Snelle installatiehandleiding
Ja
Breedte verpakking
153 mm
Diepte verpakking
30 mm
Hoogte verpakking
141 mm
Gewicht verpakking
90 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
