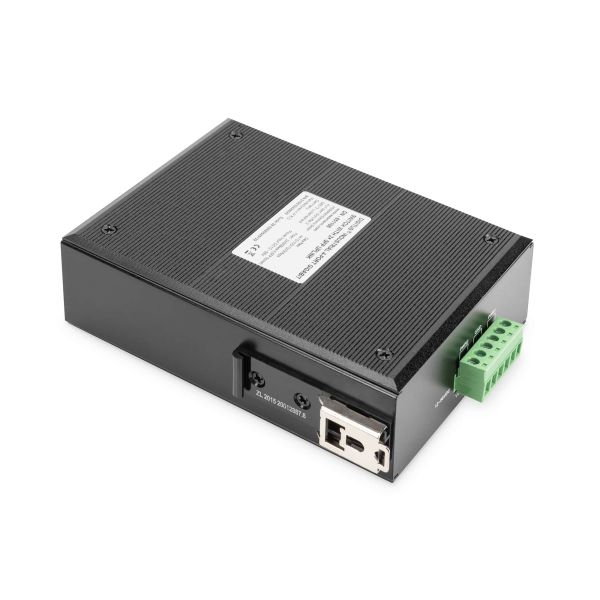

Digitus DN-651106 netwerk-switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Zwart
Standard / Din Rail mounting dual purpose
- Industrial 4-Port Gigabit Switch with 2 x SFP uplink
- 4 x 10/100/1000Base-TX Ethernet Ports
- 2 x 1000Base-X SFP Uplink Ports
The DIGITUS® Industrial Gigabit Switch is designed for harsh environments, where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity and SFP Uplink Ports, the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.
- Industrial 4-Port Gigabit Switch with 2 x SFP uplink
- 4 x 10/100/1000Base-TX Ethernet Ports
- 2 x 1000Base-X SFP Uplink Ports
The DIGITUS® Industrial Gigabit Switch is designed for harsh environments, where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity and SFP Uplink Ports, the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.
- 4 x 10/100/1000Base-TX Ethernet Ports
- 2 x 1000Base-X SFP Uplink Ports
- Automatic cable detection - Auto MDI / MDI-X function
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
- Compact, robust metal housing
- Excellent short circuit protection
- Lightning and overvoltage protection
- Suitable for DIN rail (top-hat rail) mounting

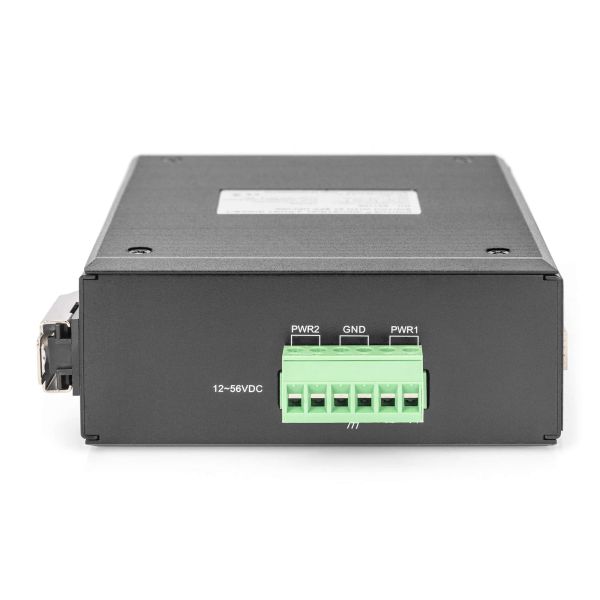

- Redundant power supply: 12~56 V DC, redundant power supply with reverse polarity protection function
- Extended operating temperature range, -40 °C ~ +85 °C
- Removable terminal connection
- Protection class: IP40
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beheerfuncties
Switch type*
Unmanaged
Switch-laag
L2
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
4
Aantal moduleslots SPF
2
Fibre channel-poorten
2
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X
Ja
VLAN=ondersteuning
Nee
Optische vezel
Fiber ethernet cabling technologie
1000BASE-X
Design
Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
DIN rail bevestiging
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China
Prestatie
Plug and play
Ja
Energie
Redundante voeding
Ja
DC voltage input
12 - 56 V
Stroomspanning bescherming
Kortsluiting
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-40 - 85 °C
Gewicht en omvang
Breedte
130 mm
Diepte
140 mm
Hoogte
40 mm
Gewicht
500 g
Verpakking
Snelstartgids
Ja
Breedte verpakking
180 mm
Diepte verpakking
70 mm
Hoogte verpakking
70 mm
Verpakkingsvolume
2772 cm³
Gewicht verpakking
600 g
Logistieke gegevens
Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Ethernet interface type
Gigabit Ethernet
