Digitus DS-55202 KVM-extender Zender en ontvanger

Digitus DS-55202, Zender en ontvanger, Bedraad, 120 m, Cat5, Cat5e, Cat6, 1920 x 1080 Pixels, Zwart

Ruim op voorraad

Fabrikant Digitus
MPN DS-55202
EAN 4016032429432
€ 183,00 excl. BTW

Digitus DS-55202 KVM-extender Zender en ontvanger

Extends the HDMI signal to up to 120 m and offers the possibility of controlling the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cable to up to 120 m via a simple network cable
- Extension of the signal (unlimited distance) over the existing local network infrastructure (over IP connection)
- Highest supported video resolution: 1080p / 60 Hz
- Supports KVM function - convenient control of mouse and keyboard via USB on the receiver unit
- Supports LAN-standard 802.3 Ethernet 10/100/100 Mbps
- LED activity indicator for function, keyboard and mouse

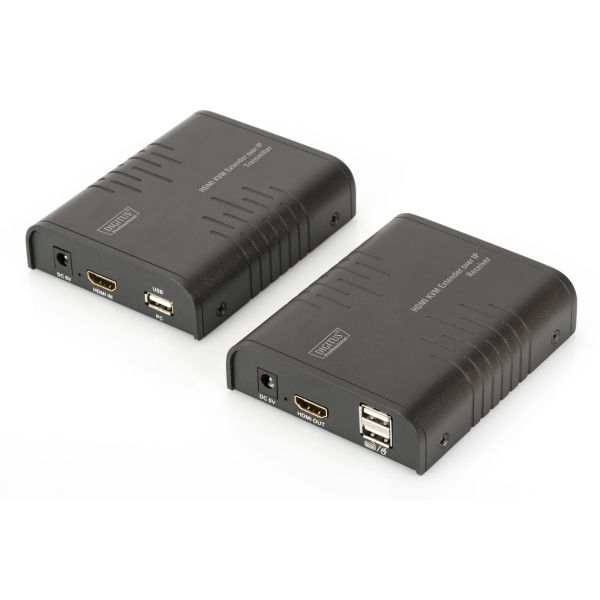

The Digitus HDMI KVM extender set consists of a sender unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended by means of a network cable (CAT 6, 5e, 5) up to a maximum distance of 120m. The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also makes convenient access on a computer (mouse and keyboard) possible via the USB ports on the receiver unit. It is perfectly suited to industrial, commercial and public applications.
  • Extends the maximum length for HDMI cable to up to 120 m via a simple network cable
  • Extension of the signal (unlimited distance) over the existing local network infrastructure (over IP connection)
  • Highest supported video resolution: 1080p / 60 Hz
  • Supports KVM function - convenient control of mouse and keyboard via USB on the receiver unit
  • Supports LAN-standard 802.3 Ethernet 10/100/100 Mbps
  • LED activity indicator for function, keyboard and mouse
  • Transmission lengths: 120 m (CAT6), 100 m (CAT5e), 80 m (CAT5)
  • Video bandwidth: < 70 Mbps
  • Video latency: 70 ms
  • Audio support PCM (44.1KHz, 48KHz)
  • USB keyboard and mouse support
  • Supports UTP/STP CAT 5/ 5e/6/7 network cables in accordance with IEEE-568B standard
  • Plug & Play, no additional software required - driver CD only needed as long as there is no mouse and keyboard function
  • Electricity consumption: < 3.5 W (TX or RX)
  • Operating temperature: 0 ~ 60° C
  • Ambient temperature: -20 ~ 70° C
  • High quality aluminum casing
  • Dimensions: L 11.0 x W 9.0 x H 2.6 cm
  • Color: black

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
Zender en ontvanger
Connectiviteitstechnologie*
Bedraad
Maximaal bereik
120 m
Ondersteundende kabel types
Cat5, Cat5e, Cat6
Resolutie (maximum digitaal)
1920 x 1080 Pixels
Kleur van het product
Zwart
Materiaal
Aluminium
Land van herkomst
China
Plug and play
Ja
LED-indicatoren
Ja

Zender

Poorttype zender video
HDMI
Poorttype zender lokaal toetsenbord/muis
USB
Aantal RJ-45-poorten (zender)
1

Ontvanger

Poorttype ontvanger lokale video
HDMI
Poorttype ontvanger lokaal toetsenbord/muis
USB
Aantal RJ-45-poorten (ontvanger)
1

Energie

AC-adapter, uitgangsspanning
5 V
AC-adapter, uitgangsstroom
1 A
Stroomverbruik (zender) (max)
3,5 W

Energie

Stroomverbruik (ontvanger) (max)
3,5 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 60 °C
Temperatuur bij opslag
-20 - 70 °C

Gewicht en omvang

Transmitter gewicht
160 g
Receiver gewicht
170 g

Verpakking

Breedte verpakking
176 mm
Diepte verpakking
240 mm
Gewicht verpakking
740 g

Technische details

Afmetingen (B x D x H)
89,5 x 109,6 x 26,3 mm
Maximum resolutie
1920 x 1080 Pixels
Verpakkingsvolume
3379,2 cm³

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
84733080
