Digitus DS-55204 KVM-extender Zender en ontvanger

Digitus DS-55204, Zender en ontvanger, Bedraad, 60 m, Cat6, Cat6a, Cat7, 4096 x 2160 Pixels, Zwart

Ruim op voorraad

Fabrikant Digitus
MPN DS-55204
EAN 4016032436270
€ 129,00 excl. BTW

Digitus DS-55204 KVM-extender Zender en ontvanger

Extends the maximum length for HDMI cables to up to 60 m whereby only a simple network cable is used between a transmitter and a receiver unit

- Extends 4K2K/60Hz video content to up to 30m
- Extends 4K2K/30Hz video content to up to 60m
- Supports 4K Ultra HD (60Hz), 4096 x 2160p resolution
- Integrated IR interface - Easy to control the input source using a remote control
- Supports CAT 6 and CAT 6A network cables
- Supports HDCP 2.2

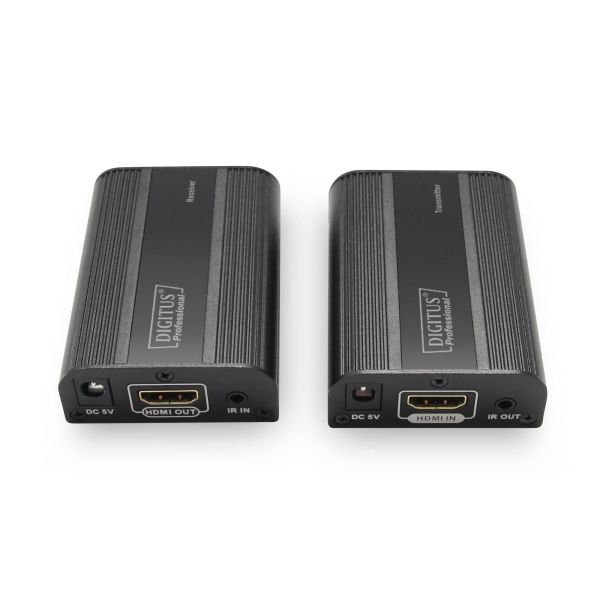

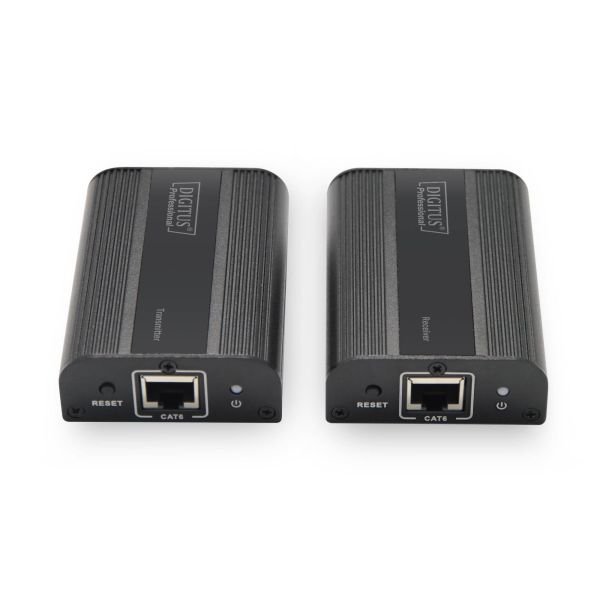

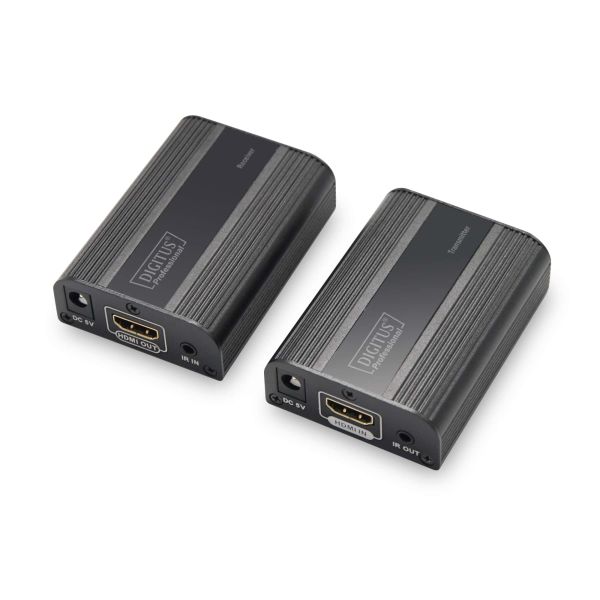

The Digitus 4K Extender Set, 4K2K/60Hz offers an extender solution of up to 60 m for the highest demands - both for high-resolution graphics and for absolutely smooth video playback. It transmits digital 4K2K/60Hz video and audio signals to a maximum length of up to 30 m. 4K2K/30Hz content can be transmitted to up to 60 m. It supports CAT 6, 6A network cables. It consists of a transmitter as well as a receiver unit. It also includes two infrared units (transmitter, receiver) which enable the use of the remote control of the connected input source.
  • Extends 4K2K/60Hz video content to up to 30m
  • Extends 4K2K/30Hz video content to up to 60m
  • Supports 4K Ultra HD (60Hz), 4096 x 2160p resolution
  • Integrated IR interface - Easy to control the input source using a remote control
  • Supports CAT 6, CAT 6A and CAT 7 network cables
  • Supports HDCP 2.2
  • Offers simple and quick distribution for HDMI video signals - position your monitors wherever you wish
  • Resolutions: 4K (60Hz), 4K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
  • LED status display
  • Max. transfer rate: 18 Gbps
  • Color depth: 12 bit
  • Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
  • Supports uncompressed audio signals such as LPCM
  • High quality aluminum casing
  • Compact size, simple use and installation
  • Power supply unit: DC 5V/1A
  • Dimensions (1x unit): L 7.7 x W 5.6 x H 2.7 cm
  • Color: black

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
Zender en ontvanger
Connectiviteitstechnologie*
Bedraad
Maximaal bereik
60 m
Ondersteundende kabel types
Cat6, Cat6a, Cat7
Resolutie (maximum digitaal)
4096 x 2160 Pixels
Kleur van het product
Zwart
Land van herkomst
China
LED-indicatoren
Ja

Zender

Poorttype zender video
HDMI
Aantal RJ-45-poorten (zender)
1

Ontvanger

Poorttype ontvanger lokale video
HDMI

Energie

AC-adapter, uitgangsspanning
5 V
AC-adapter, uitgangsstroom
1 A

Gewicht en omvang

Zender breedte
56 cm

Gewicht en omvang

Zender diepte
77,5 cm
Zender hoogte
27 cm
Transmitter gewicht
160 g

Verpakking

Breedte verpakking
150 mm
Diepte verpakking
200 mm
Gewicht verpakking
575 g

Technische details

Maximum resolutie
4096 x 2160 Pixels
Verpakkingsvolume
2400 cm³

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
84733080
