Draytek VIGORAP 918RPD, 1300 Mbit/s, 400 Mbit/s, 867 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x,...

Nog 1 beschikbaar (bel voor reservering)

Fabrikant Draytek
MPN VAP918RPD-DE-AT-CH
EAN 4710484740540

Draytek VIGORAP 918RPD draadloos toegangspunt (WAP) 1300 Mbit/s Wit Power over Ethernet (PoE)

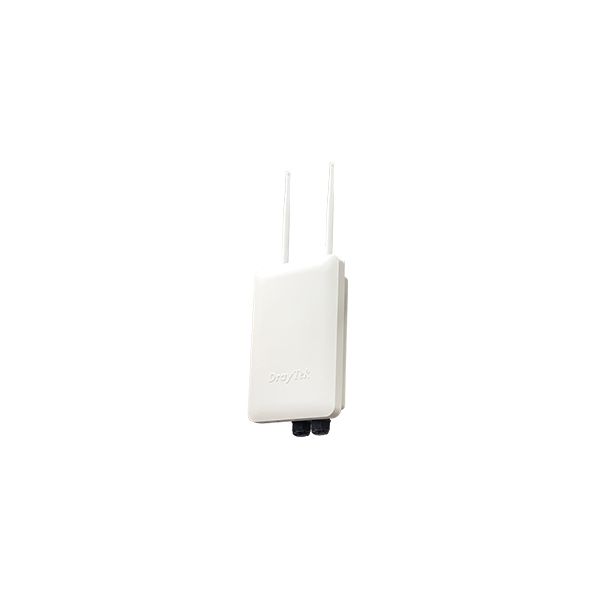

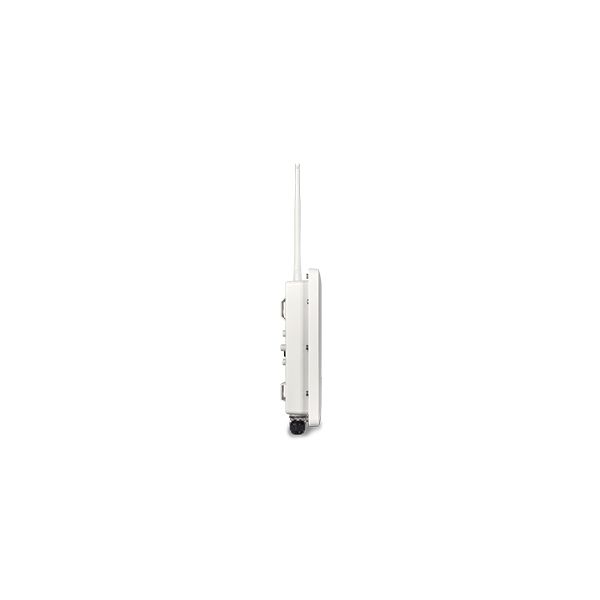

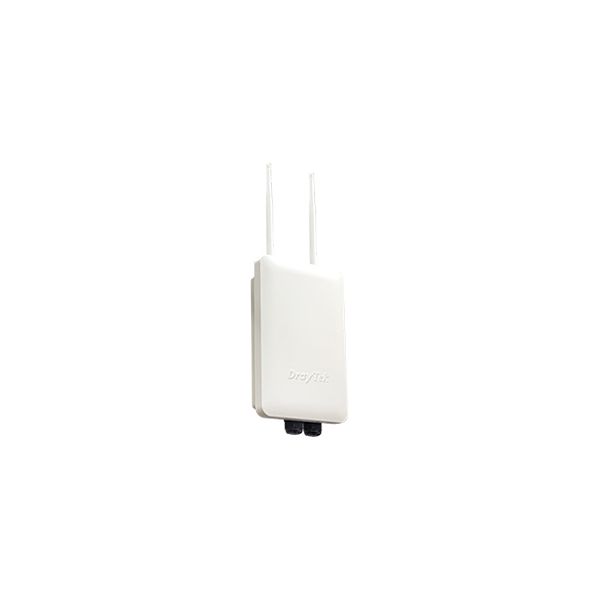

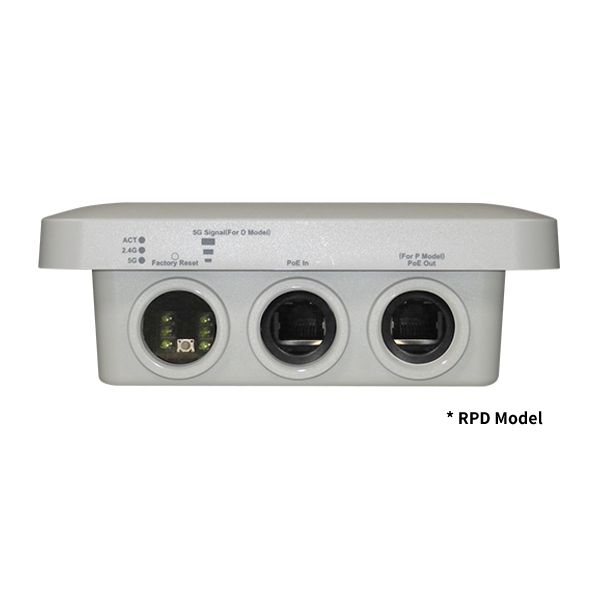

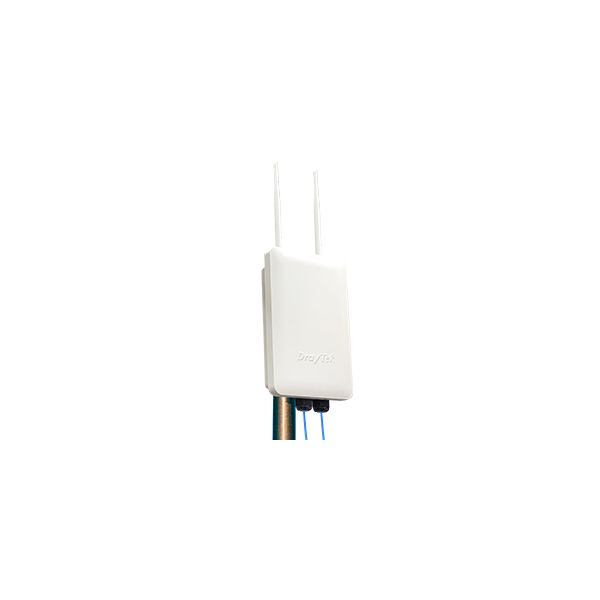

DrayTek VigorAP 918R Series is a compact outdoor wireless access point. It provides combined speeds of up to 1.3 Gbps and a capacity of 200+ active users. The series includes an RPD model, which is equipped with a PoE-Out port to deliver connectivity and power to another network device, such as an IP camera, and the internal 5GHz directional patch antenna can enhance the wireless performance for long-range point-to-point connection.

11ac Wave 2 Technology
VigorAP 918R Series supports MU-MIMO for high density applications

AP-assisted Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience
  • Mesh: Easily link to other VigorAP to expand the wireless network
  • Assisted Wi-Fi Roaming: Solve the sticky client problem and improve Wi-Fi roaming experience
  • Weather Resistant: VigorAP 918R Series can withstand rain, heat, and cold to deliver internet connectivity to the outdoor environments
  • Local RADIUS Server: User profile database for local and external 802.1x authentication
  • Multiple SSID: Mapping Wi-Fi clients to different VLANs and have a different set of security standards
  • Wi-Fi Scheduling: Schedule Wi-Fi On and Off to control wireless access and save energy
  • Airtime Fairness: Equalize the transmission time of each client so the legacy devices won't slow everyone down
  • PoE Power Supply: Simplify the infrastructure by getting data and power through a single cable
  • Band Steering: Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed
  • Central AP Management: Manage, maintain, and monitor VigorAP 918R Series from the DrayTek routers

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
1300 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
400 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4 - 5 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Bekabelingstechnologie
10/100/1000Base-T(X)
Automatische kanaalselectie
Ja
Full duplex
Ja
Duplex-modus automatisch onderhandelen
Ja
Rechtstreeks doorsturen
Ja
Tunnel doorsturen
Ja
Auto MDI/MDI-X
Ja
MIMO
Ja
MIMO-type
Multi User MIMO
Wifi Multimedia (WMM)/(WME)
Ja
Max WLAN Connections
256
VLAN=ondersteuning
Ja
Datastroombeheer
Ja
Draadloze isolatie
Ja
Quality of Service (QoS)
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen*
802.1x RADIUS, EAP-TLS, HTTPS, PEAP, SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA2, WPA3-PSK, WPS
IP-adresfilter
Ja
Systeemstatusalarm
Ja
IGMP snooping
Ja
DHCP snooping
Ja
Remote Authentication Dial-In User Service (RADIUS)
Ja
Access Control List (ACL)
Ja

Protocollen

Universal Plug and Play ( UPnP )
Ja
DHCP server
Ja
DHCP client
Ja
Ondersteunde netwerkprotocollen
HTTP, HTTPS, Telnet
IPv4- & IPv6-functies
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 portal

Beheerfuncties

Web-gebaseerd management
Ja
Lokaal AP-beheer
Telnet
Syslog
Ja
Upgraden van firmware mogelijk
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
2
WAN-poort
Ethernet (RJ-45)

Energie

Power over Ethernet (PoE)*
Ja
Stroomverbruik (typisch)
43,2 W
Vermogensverbruik (max)
60 W

Design

Plaatsing*
Paal, Muur
Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP67
Reset button
Ja
Certificering
CE

Antenne

Soort antenne*
Intern & extern
Antennas quantity
3
Antenne versterkingsniveau (max)
11 dBi

Gewicht en omvang

Breedte
243 mm
Diepte
161 mm
Hoogte
72 mm
Gewicht
900 g

Verpakking

Type verpakking
Doos

Inhoud van de verpakking

Meegeleverde kabels
LAN (RJ-45)
Montage gereedschap
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Bedrijfstemperatuur (T-T)
-40 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
