Eaton 9PX3000IRTBPH, Dubbele conversie (online), 3 kVA, 3000 W, Zuivere sinus, 176 V, 276 V

Niet op voorraad

Fabrikant Eaton
MPN 9PX3000IRTBPH
EAN 7431720815996

Eaton 9PX3000IRTBPH UPS Dubbele conversie (online) 3 kVA 3000 W 1 AC-uitgang(en)

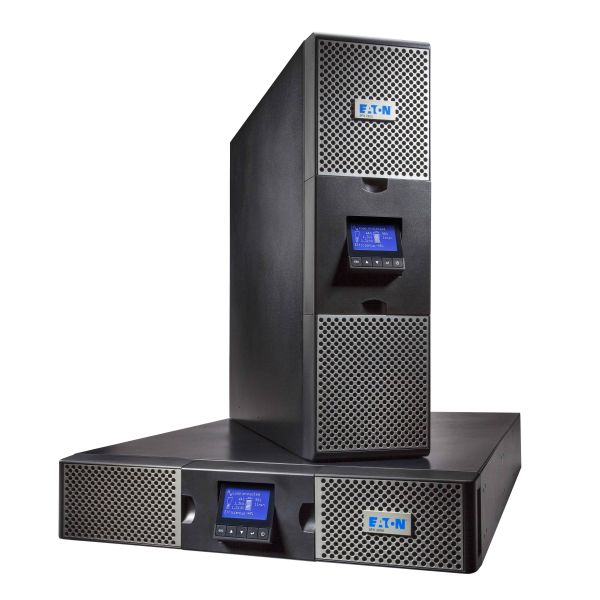

Eaton 9PX 3000i RT3U HotSwap HW

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
3 kVA
Uitgangsvermogen*
3000 W
Golfvorm*
Zuivere sinus
Ingang operation voltage (min)*
176 V
Ingang operation voltage (max)*
276 V
Frequentie*
40/70 Hz
Uitgang operation voltage (min)
200 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Aantal input fases
1
Efficientie
94 procent
Power factor
1
Geluidsniveau
40 dB

Poorten & interfaces

Stopcontacttypes
Eindstation
Stekker
Eindstation
Aantal AC uitgangen
1 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
RS-232 port
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Typische backup tijd op halve lading
9,5 min
Hot-swap batterij
Ja
Automatische batterij test
Ja

Design

Vormfactor*
Rackmontage/toren
Rackcapaciteit
3U
Kleur van het product*
Zwart
Type beeldscherm
LCD
LED-indicatoren
Ja
Veiligheid
IEC/EN 62040-1, UL 1778, CSA 22.2
Certificering
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Technische details

Duurzaamheidscertificaten
ENERGY STAR

Gewicht en omvang

Breedte
440 mm
Diepte
485 mm
Hoogte
130 mm
Gewicht
27,4 kg

Verpakking

Rekbevestigingspakket
Ja
Beheerskaart inbegrepen
Nee
Meegeleverde software
Intelligent Power Software suite

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Netspanning, in bedrijf
230 V
Nominale input voltage
230 V
