Eaton ATS16N, 208 V, 240 V, 50/60 Hz, 50/60 Hz, 16 A, 8 ms

Ruim op voorraad

Fabrikant Eaton
MPN EATS16N
EAN 0743172079411

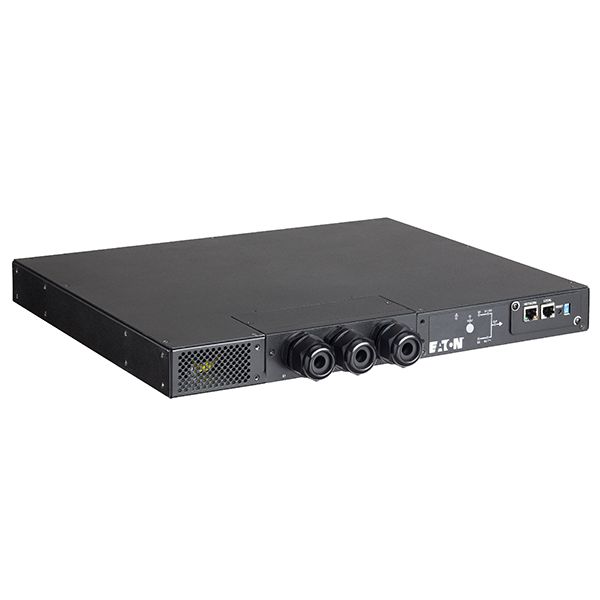

Eaton ATS16N 9 AC-uitgang(en)

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions

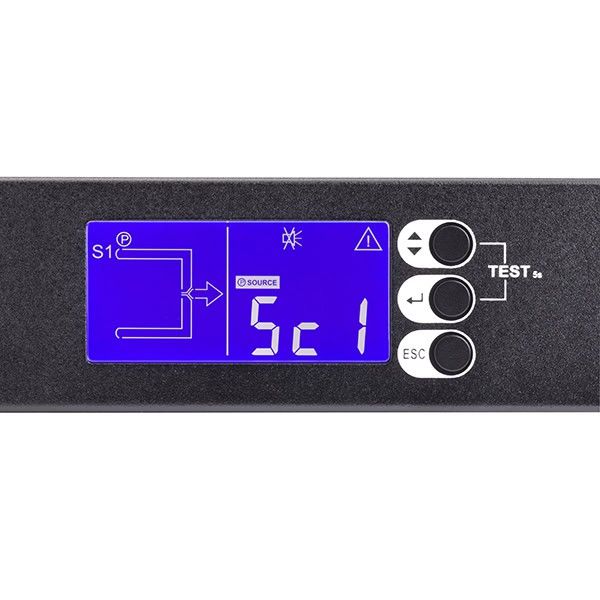

- LCD with metering and basic configuration capabilities

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Ingang operation voltage (min)*
208 V
Ingang operation voltage (max)*
240 V
Frequentie*
50/60 Hz
Output frequentie
50/60 Hz
Stroom (max.)
16 A
Responstijd
8 ms
Aantal input fases
1
Aantal output fases
1
Web-gebaseerd management
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker, C19 stekker
Stekker
C20 stekker
Aantal AC uitgangen
9 AC-uitgang(en)
Number of output IEC jumpers
8
Aantal Ethernet LAN (RJ-45)-poorten
1

Design

Vormfactor*
Rackmontage
Rackcapaciteit
1U
Kleur van het product*
Zwart

Design

Type beeldscherm
LED
LED-indicatoren
Ja
Veiligheid
IEC/EN 62310-1, IEC/EN 60950-1
Certificering
IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE

Gewicht en omvang

Breedte
440 mm
Diepte
250 mm
Hoogte
43 mm
Gewicht
3,5 kg

Verpakking

Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Aantal fases
1
Nominale input voltage
230 V
Montage
Horizontal
