Tripp Lite SR2POST rack 45U Vrijstaande rek Zwart

Tripp Lite SR2POST, Vrijstaande rek, 45U, 362,9 kg, 13,2 kg, Zwart

Niet op voorraad

Fabrikant Eaton
MPN SR2POST
EAN 0037332127563
€ 231,00 excl. BTW

Tripp Lite SR2POST rack 45U Vrijstaande rek Zwart

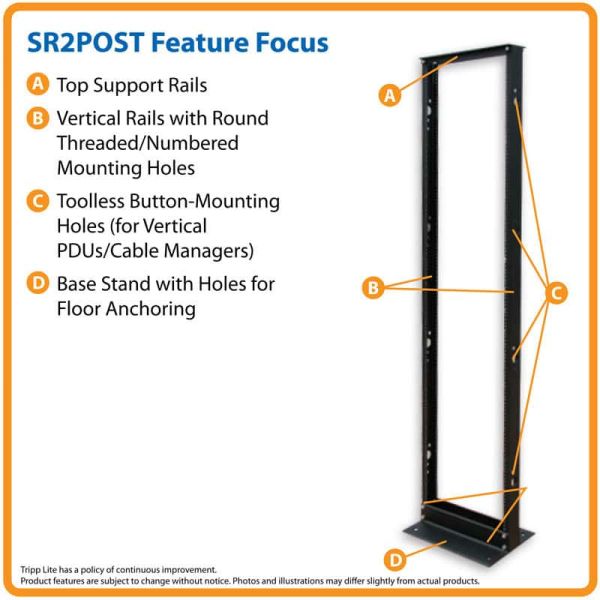

Tripp Lite's SR2POST 2-Post SmartRack Open Frame Rack is an economical way to accommodate 45U of rack space for 19-inch rack mount applications where space is at a premium. Its heavy-duty, aluminum construction can safely support 800 lbs (362.9 kgs) of rackmount equipment. The black, textured power coat finish makes it resistant to scratching while giving it a classic, attractive appearance. The SR2POST is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting holes, and bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization when required. The SR2POST 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS, and is backed by a 5-year warranty.

Supports 800 lbs (362.9 kgs) of rackmount equipment
Textured powder coat finish
Heavy Duty Aluminum construction
12-24 threaded and numbered mounting positions
Bolt down provisions
Self squaring design
Black finish
Toolless button keyhole mounting slots accept PDUs and cable managers

Easy assembly
  • 45U 2-post open frame rack
  • Black aluminum with 12-24 threaded and numbered mounting holes
  • Toolless button keyhole mounting slots accept PDUs or cable managers

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
45U
Soort*
Vrijstaande rek
Maximale gewichtscapaciteit*
362,9 kg
Kleur van het product
Zwart
Certificering
EIA-310-D, IEC 60297-3-100, RoHS

Gewicht en omvang

Breedte
515,6 mm
Diepte
342,9 mm
Hoogte
2133,9 mm
Gewicht
13,2 kg

Verpakking

Breedte verpakking
160 mm
Diepte verpakking
2235,2 mm

Verpakking

Hoogte verpakking
124,5 mm
Gewicht verpakking
15 kg

Technische details

GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking
10037332127560

Logistieke gegevens

Land van herkomst
China
Code geharmoniseerd systeem (HS)
8517,79,0000
(Buitenste) hoofdverpakking breedte
497,8 mm
(Buitenste) hoofdverpakking lengte
2260,6 mm
(Buitenste) hoofdverpakking hoogte
480,1 mm
(Buitenste) hoofdverpakking brutogewicht
106,1 kg
Hoeveelheid per (buitenste) hoofdverpakking
9 stuk(s)
