Tripp Lite SRWO8U22MD rack 22U Frame Zwart

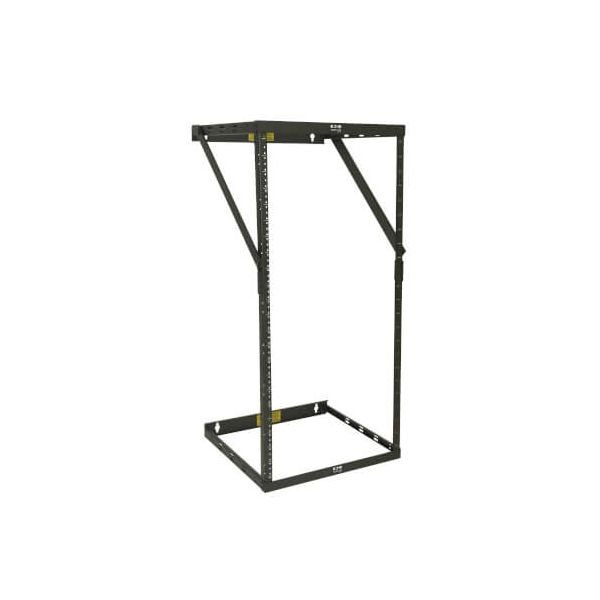

The SRWO8U22MD SmartRack 8U/12U/22U Expandable Very Low-Profile Wall-Mount 2-Post Open-Frame Rack is ideal for storing patch panels and other shallow equipment in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 11.5 inches.

Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 lbs (68 kgs). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.

The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.

Saves Valuable Workspace
Perfect for installing patch panels and other shallow networking equipment in secure IT areas with limited floor space
Houses EIA-standard 19 in. rack equipment up to 11.5 in. deep
Maximum load capacity of 150 lbs (68 kgs)

Open-Frame Design in 3 Configurations
Assembles in 8U, 12U or 22U to meet current needs
Expands to add equipment later without buying a bigger rack
Allows easy access for organizing, installing and servicing equipment and cabling

Easy Assembly and Installation
Made from heavy-duty steel in a durable black powder-coated finish
Easy to assemble with included hardware
Vertical mounting rails with threaded 12-24 holes
Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement
