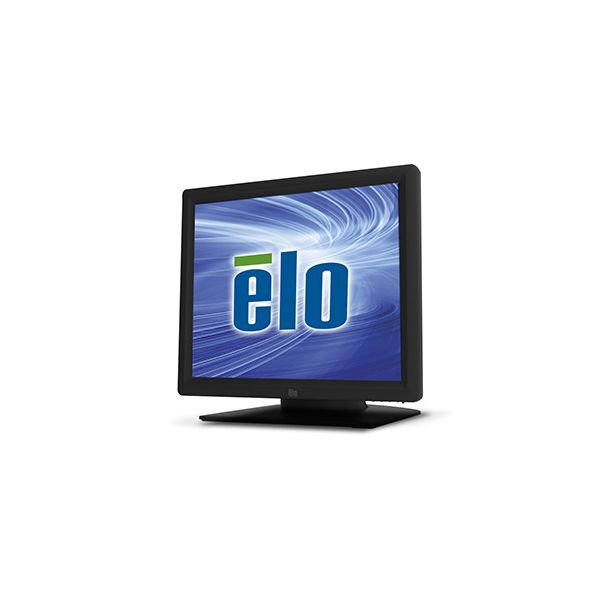

Elo Touch Solutions 1517L Rev B, 38,1 cm (15"), 1024 x 768 Pixels, LCD, 16 ms, Zwart

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Elo
MPN E273226
EAN 7411493347306

Elo Touch Solutions 1517L Rev B 38,1 cm (15") 1024 x 768 Pixels LCD Touchscreen Tafelblad Zwart

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
38,1 cm (15")
Resolutie*
1024 x 768 Pixels
Oorspronkelijke beeldverhouding*
4:3
Display technologie*
LCD
Touchscreen*
Ja
Touch screen type
Tafelblad
Touch technologie
Single-touch
Responstijd
16 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Beeldverhouding
4:3
Typische contrastverhouding*
800:1
Kijkhoek, horizontaal
160°
Kijkhoek, verticaal
150°
Beeldscherm, aantal kleuren*
16,2 miljoen kleuren
Frequentiebereik horizontaal
31,5 - 60 kHz
Frequentiebereik verticaal
56 - 75 Hz
Helderheid
225 cd/m²
LED backlight
Ja

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Design

Kleur van het product*
Zwart
Glas dikheid
4,3 cm

Poorten & interfaces

Aantal upstream-poorten
1
VGA (D-Sub)poort(en)
1
RS-232 port
1

Ergonomie

Paneelmontage-interface
75 x 75 mm

Ergonomie

On Screen Display (OSD)-talen
Vereenvoudigd Chinees, Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans
Aantal On Screen Display-talen
8

Energie

Stroomverbruik (typisch)*
12 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Soort voeding
AC/DC
Voltage tolerantie
5 procent

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Gewicht en omvang

Breedte apparaat (met standaard)
358 mm
Diepte apparaat (met standaard)
197 mm
Hoogte apparaat (met standaard)
319 mm
Gewicht (met standaard)
4,3 kg

Verpakking

Breedte verpakking
487 mm
Diepte verpakking
231 mm
Hoogte verpakking
485 mm
Gewicht verpakking
7,3 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Afmetingen (B x D x H) met voet
358 x 197 x 319 mm
Effectieve beelddiameter
304 x 228 mm
Mean time between failures (MTBF)
50000 uur
