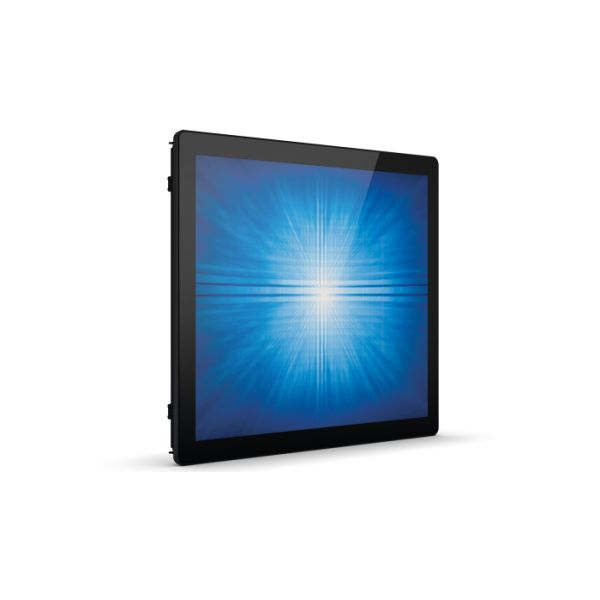

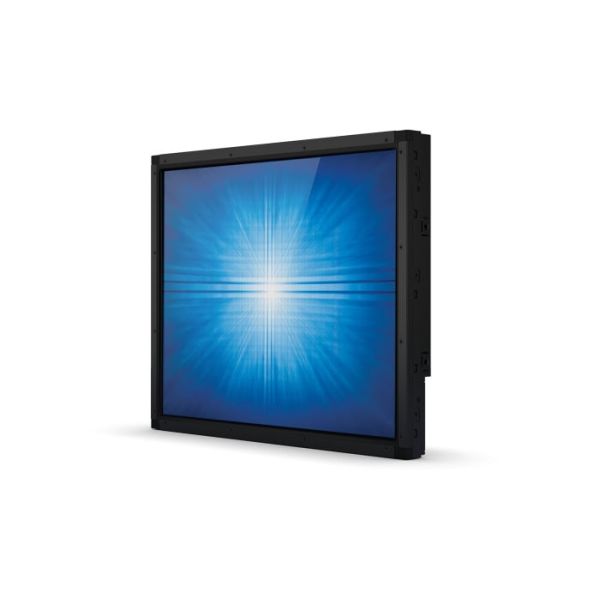

Elo Touch Solutions Open Frame Touchscreen, 48,3 cm (19"), 1280 x 1024 Pixels, LCD, 5 ms, Zwart

Niet op voorraad

Fabrikant Elo
MPN E328497
EAN 0815335025877

Elo Touch Solutions Open Frame Touchscreen 48,3 cm (19") 1280 x 1024 Pixels LCD Zwart

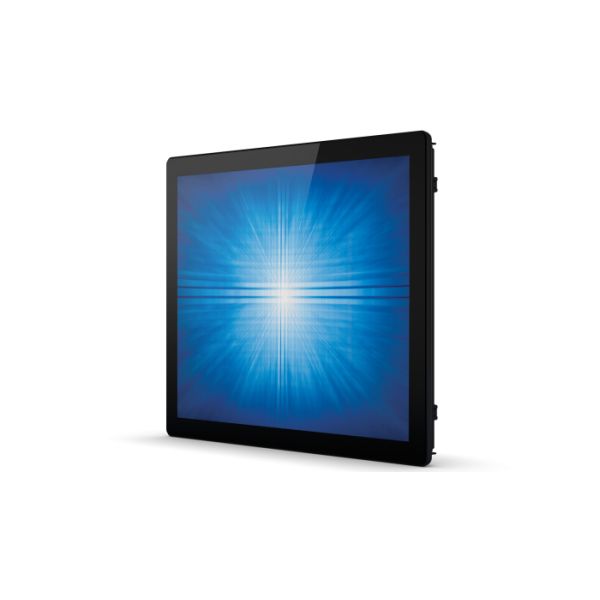

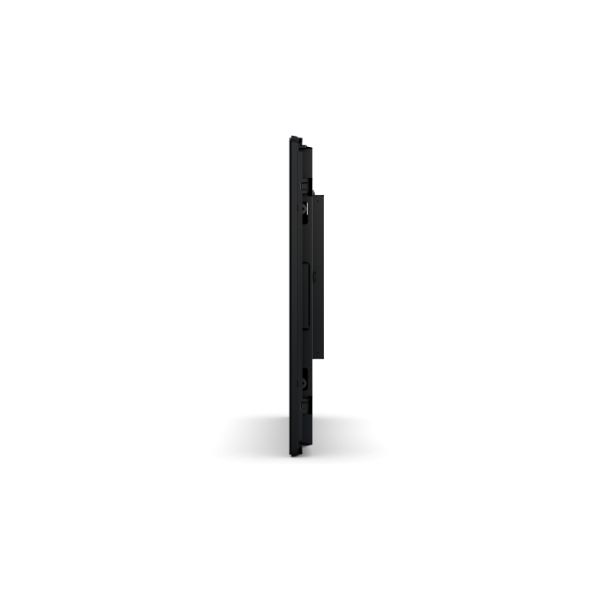

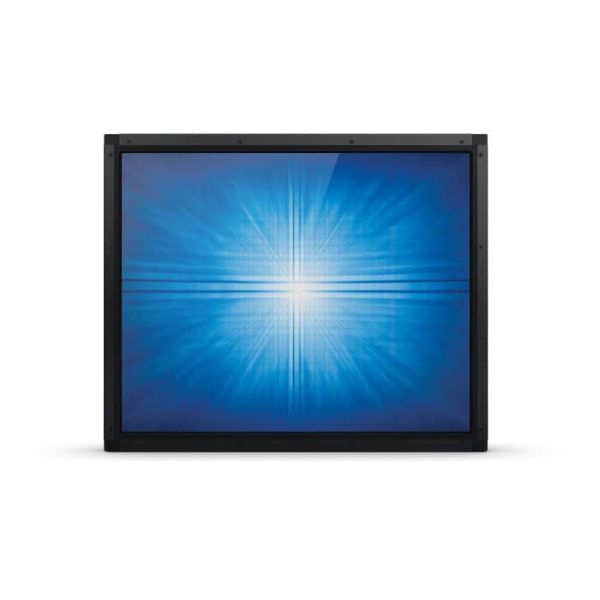

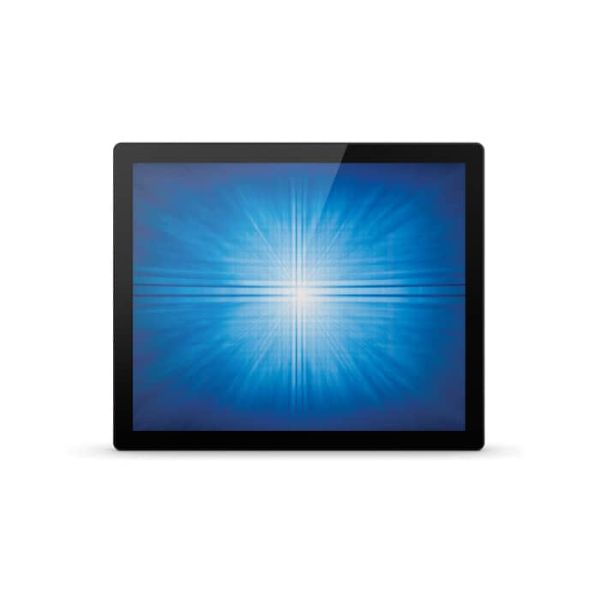

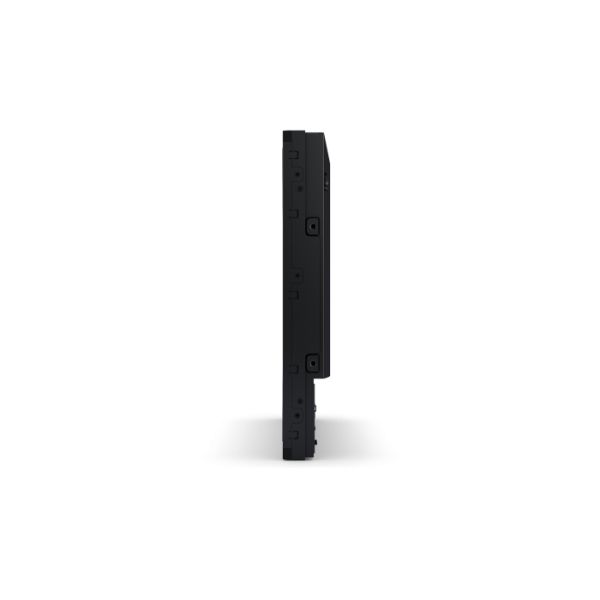

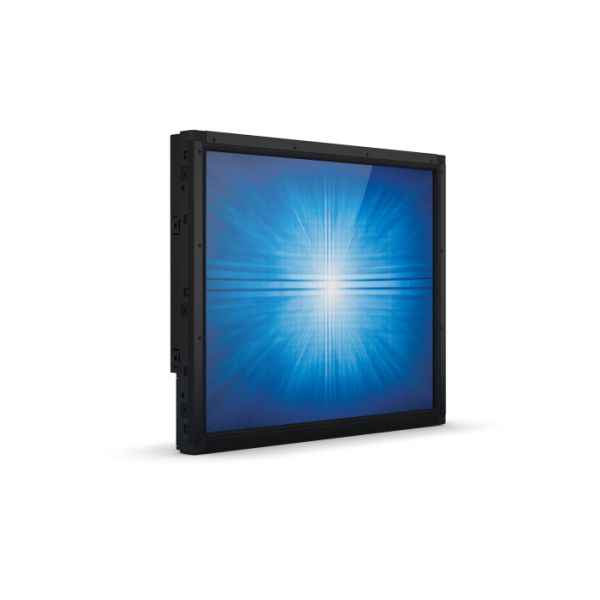

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
48,3 cm (19")
Resolutie*
1280 x 1024 Pixels
Display technologie*
LCD
Soort paneel*
TFT
Backlight type
LED
Touchscreen*
Ja
Touchscreen technologie
Rayleighgolf
Touch technologie
Single-touch
Responstijd
5 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA)
Beeldverhouding
5:4
Typische contrastverhouding*
1000:1
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
160°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Digitale horizontale frequentie
30 - 82 kHz
Digitale verticale frequentie
50 - 75 Hz
Helderheid
225 cd/m²
LED backlight
Ja

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde camera*
Nee

Design

Kleur van het product*
Zwart

Poorten & interfaces

VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1
Aantal DisplayPorts
1
Digitale audio, coaxuitgang
1

Ergonomie

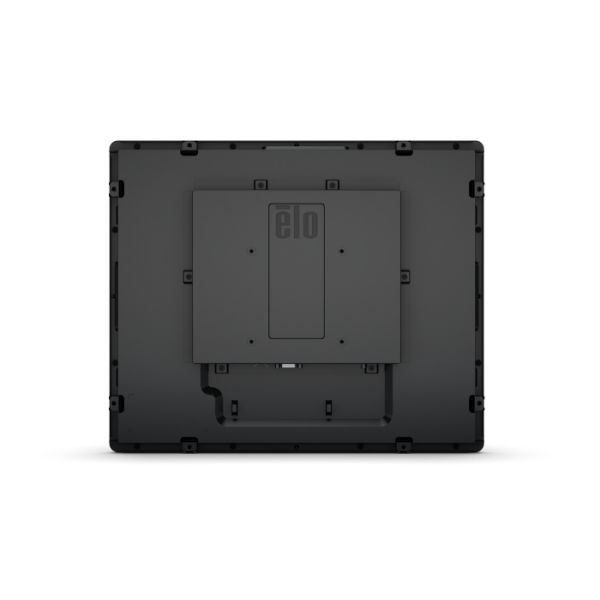

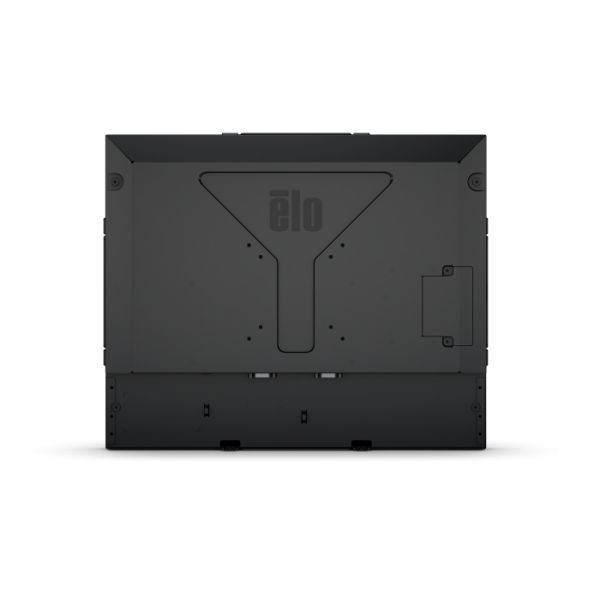

VESA-montage*
Ja
Paneelmontage-interface
75 x 100 mm

Ergonomie

Ophangsysteem voor aan de muur
Ja
On Screen Display (OSD)-talen
Vereenvoudigd Chinees, Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans
Aantal On Screen Display-talen
8

Energie

Stroomverbruik (typisch)*
22 W
Stroomverbruik (in standby)*
1,5 W
Stroomverbruik (indien uit)
0,5 W
AC-ingangsspanning
230 V
AC-ingangsfrequentie
50 Hz
Soort voeding
DC

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Hoogte, in bedrijf
0 - 3,048 m
Hoogte bij opslag
0 - 12,192 m

Inhoud van de verpakking

Meegeleverde kabels
HDMI, LAN (RJ-45), USB, VGA

Gewicht en omvang

Breedte apparaat (met standaard)
414,7 mm
Diepte apparaat (met standaard)
342,7 mm
Hoogte apparaat (met standaard)
50 mm
Breedte ( zonder voet )
42 cm
Diepte ( zonder voet )
4,07 cm
Hoogte (zonder voet )
34,8 cm
Gewicht (zonder voet)
4,6 kg

Verpakking

Gewicht verpakking
7 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Afmetingen (B x D x H) met voet
414,7 x 342,7 x 50 mm
Effectieve beelddiameter
376,32 x 301,06 mm
Mean time between failures (MTBF)
50000 uur
