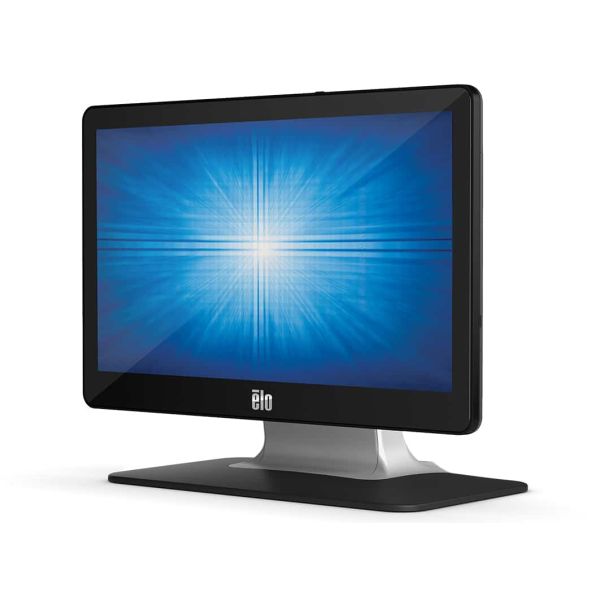

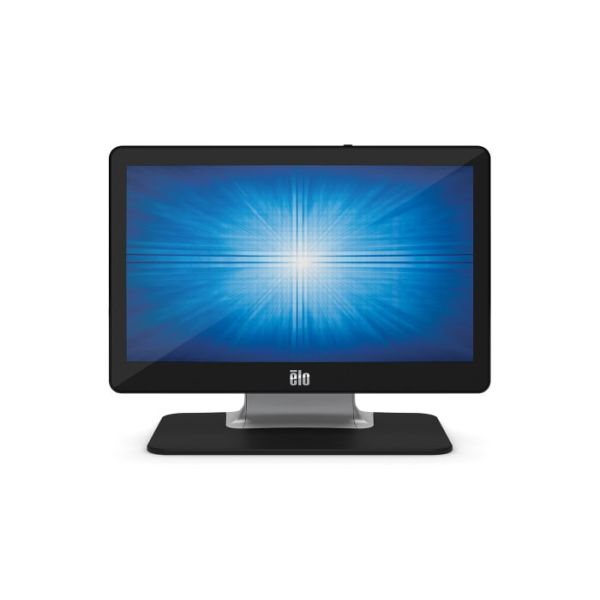

Elo Touch Solutions 1302L computer monitor 33,8 cm (13.3") 1920 x 1080 Pixels Full HD LCD Touchscreen Multi-gebruiker Wit

Elo Touch Solutions 1302L, 33,8 cm (13.3"), 1920 x 1080 Pixels, Full HD, LCD, 25 ms, Wit

Niet op voorraad

Fabrikant Elo
MPN E683396
EAN 0843173109381
€ 444,00 excl. BTW

Elo Touch Solutions 1302L computer monitor 33,8 cm (13.3") 1920 x 1080 Pixels Full HD LCD Touchscreen Multi-gebruiker Wit

The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
33,8 cm (13.3")
Resolutie*
1920 x 1080 Pixels
HD type*
Full HD
Oorspronkelijke beeldverhouding*
16:9
Display technologie*
LCD
Soort paneel*
TFT
Touchscreen*
Ja
Touch screen type
Multi-gebruiker
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Responstijd
25 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Typische contrastverhouding*
800:1
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
170°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Frequentiebereik horizontaal
30 - 75 kHz
Grootte beeld (horizontaal)
29,4 cm
Grootte beeld (verticaal)
16,5 cm
Helderheid
270 cd/m²

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde luidsprekers*
Ja
Ingebouwde camera*
Nee
Aantal luidsprekers
2
Gemiddeld vermogen
2 W

Design

Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IPX1
Certificering
Australia RCM Canada cUL, IC China CCC Europe CE Japan VCCI Korea KCC Mexico NOM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE, REACH Russia EAC

Poorten & interfaces

Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
USB Touch port
Ja
Aantal USB Touch-poorten
1
VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1
HDMI versie
1.3

Poorten & interfaces

Audio-ingangen
1

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
75 x 75 mm
Ophangsysteem voor aan de muur
Ja
On Screen Display (OSD)
Ja

Energie

Stroomverbruik (typisch)*
9,8 W
Stroomverbruik (indien uit)
0,18 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 / 60 Hz
AC-adapter, uitgangsspanning
12 V
Soort voeding
AC

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Inhoud van de verpakking

Meegeleverde kabels
AC, HDMI, USB

Gewicht en omvang

Breedte apparaat (met standaard)
326,1 mm
Diepte apparaat (met standaard)
150 mm
Hoogte apparaat (met standaard)
259,6 mm
Gewicht (met standaard)
2,32 kg
Breedte ( zonder voet )
326,1 mm
Diepte ( zonder voet )
25,1 mm
Hoogte (zonder voet )
211,3 mm
Gewicht (zonder voet)
1,22 kg

Verpakking

Breedte verpakking
405 mm
Diepte verpakking
160 mm
Hoogte verpakking
280 mm
Gewicht verpakking
2,89 kg

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Mean time between failures (MTBF)
50000 uur
