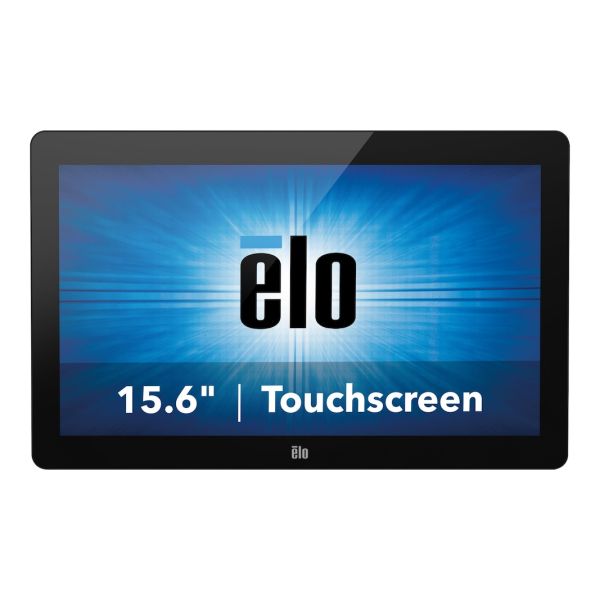

Elo Touch Solutions 1502L, 39,6 cm (15.6"), 1366 x 768 Pixels, LED, 10 ms, Zwart

Ruim op voorraad

Fabrikant Elo Touch Solutions
MPN E318746
EAN 0834619009006

Elo Touch Solutions 1502L 39,6 cm (15.6") 1366 x 768 Pixels LED Touchscreen Zwart

The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920x1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.

The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.

Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), customer display, barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1502L is offered with IntelliTouch Pro projected capacitive (PCAP) touch technology in a zero-bezel design with 10-touch interaction and an anti-glare surface.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
39,6 cm (15.6")
Resolutie*
1366 x 768 Pixels
Display technologie*
LED
Touchscreen*
Ja
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Responstijd
10 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
640 x 480 (VGA), 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768
Beeldverhouding
16:9
Typische contrastverhouding*
600:1
Kijkhoek, horizontaal
90°
Kijkhoek, verticaal
65°
Beeldscherm, aantal kleuren*
262144 kleuren
Frequentiebereik horizontaal
31,5 - 60 kHz
Helderheid
187 cd/m²

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde luidsprekers*
Ja
Ingebouwde camera*
Nee
Aantal luidsprekers
2
Gemiddeld vermogen
4 W
Ingebouwde microfoon
Nee

Design

Kleur van het product*
Zwart
Certificering
cUL, IC, Europe CE, Japan VCCI, United States UL, FCC

Poorten & interfaces

VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1

Ergonomie

Paneelmontage-interface
75 x 75,100 x 100 mm
Bevestigingsmogelijkheid voor kabelslot*
Ja

Ergonomie

On Screen Display (OSD)-talen
Vereenvoudigd Chinees, Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans
Aantal On Screen Display-talen
8

Energie

Stroomverbruik (typisch)*
12 W
Stroomverbruik (indien uit)
0,2 W
AC-ingangsspanning
100-240 V
AC-ingangsfrequentie
50 - 60 Hz
AC-adapter, uitgangsspanning
12 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 95 procent

Inhoud van de verpakking

Meegeleverde kabels
HDMI, VGA

Gewicht en omvang

Gewicht (met standaard)
3,05 kg
Breedte ( zonder voet )
38,7 cm
Diepte ( zonder voet )
3,29 cm
Hoogte (zonder voet )
24,4 cm
Gewicht (zonder voet)
3 kg

Verpakking

Breedte verpakking
457 mm
Diepte verpakking
181 mm
Hoogte verpakking
347 mm
Gewicht verpakking
5,08 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Effectieve beelddiameter
345,2 x 194,6 mm
Energie-efficiëntieklasse (oud)
A
Volledige HD
Nee
Mean time between failures (MTBF)
50000 uur
