Elo Touch Solutions 1715L, 43,2 cm (17"), 1280 x 1024 Pixels, LCD, 5 ms, Grijs

Ruim op voorraad

Fabrikant Elo Touch Solutions
MPN E603162
EAN 7411493185014

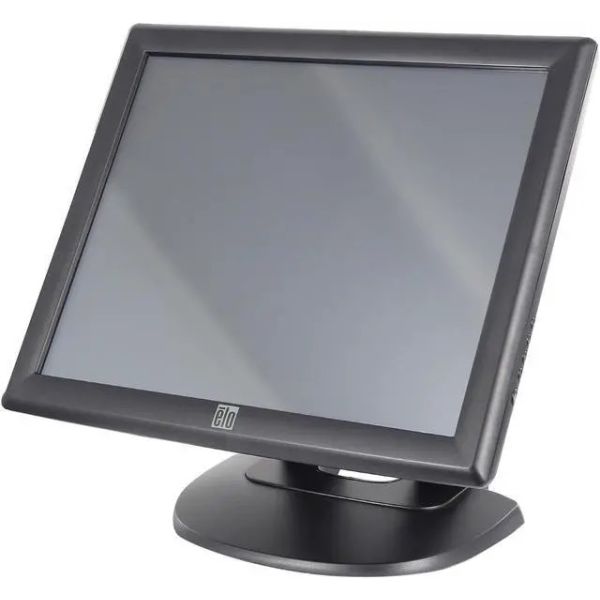

Elo Touch Solutions 1715L 43,2 cm (17") 1280 x 1024 Pixels LCD Touchscreen Kiosk Grijs

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

AccuTouch Five-Wire Resistive Touch Technology
Elo developed AccuTouch technology with the harshest environments in mind, so it's no wonder that it excels in reliability, durability, and expected product life. Impervious to environmental conditions such as liquid spills and splashes and washdown, these screens are the most contamination-resistant available. They deliver drift-free operation for a lifetime of 35 million finger touches.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
43,2 cm (17")
Resolutie*
1280 x 1024 Pixels
Display technologie*
LCD
Touchscreen*
Ja
Touch screen type
Kiosk
Touchscreen technologie
Resistief
Touch technologie
Single-touch
Responstijd
5 ms
Beeldscherm vorm*
Flat
Beeldverhouding
5:4
Typische contrastverhouding*
1000:1
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
160°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Helderheid
200 cd/m²
Glossy display
Nee

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
Compatibele besturingssystemen
POSReady 2009; Windows Vista, XP, 7, 2000, CE; Linux; Mac OSX

Multimedia

Ingebouwde luidsprekers*
Nee

Design

Kleur van het product*
Grijs

Poorten & interfaces

Aansluitingen
Serial/USB

Poorten & interfaces

USB
Ja
VGA (D-Sub)poort(en)
1

Ergonomie

Paneelmontage-interface
100 x 100 mm
Ophangsysteem voor aan de muur
Ja
On Screen Display (OSD)
Ja

Energie

Stroomverbruik (typisch)*
36 W
AC-ingangsfrequentie
50 - 60 Hz
AC-adapter, uitgangsspanning
12 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Gewicht en omvang

Breedte apparaat (met standaard)
391 mm
Diepte apparaat (met standaard)
203 mm
Hoogte apparaat (met standaard)
366 mm
Gewicht (zonder voet)
6,9 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Afmetingen (B x D x H) met voet
391 x 203 x 366 mm
Mean time between failures (MTBF)
50000 uur
