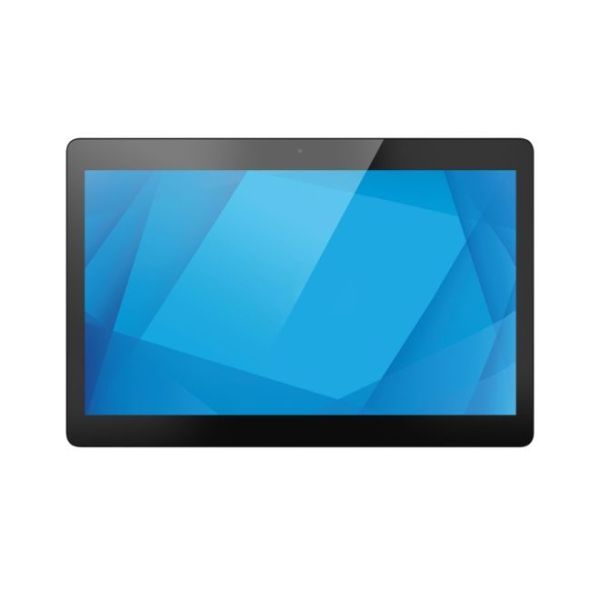

Elo Touch Solutions I-Series E850591, 54,6 cm (21.5"), Full HD, Intel® Core™ i3, 8 GB, 128 GB, Windows 10

Ruim op voorraad

Fabrikant Elo Touch Solutions
MPN E850591
EAN 0843173112534

Elo Touch Solutions I-Series E850591 All-in-One PC/workstation Intel® Core™ i3 54,6 cm (21.5") 1920 x 1080 Pixels Touchscreen 8 GB DDR4-SDRAM 128 GB SSD All-in-One tablet PC Windows 10 Wi-Fi 5 (802.11ac) Zwart

I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.

Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.

Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.

Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
54,6 cm (21.5")
Resolutie*
1920 x 1080 Pixels
Touchscreen*
Ja
HD type*
Full HD
LED backlight
Ja
Touch technologie
Multi-touch
Oorspronkelijke beeldverhouding
16:9
Helderheid
225 cd/m²
Responstijd
14 ms
Beeldscherm vorm
Flat
Beeldscherm, aantal kleuren
16.78 miljoen kleuren

Processor

Processorfabrikant*
Intel
Processorgeneratie
Intel® 8de generatie Core™ i3
Processormodel*
i3-8100T
Processorfamilie*
Intel® Core™ i3
Frequentie van processor*
3,1 GHz
Aantal processorkernen
4
Processor aantal threads
4
Processor cache
6 MB
Processor cache type
Smart Cache
Systeembus
8 GT/s
64-bit computing
Ja
Thermal Design Power (TDP)
35 W
Configureerbare TDP-downfrequentie
2,4 GHz
Configureerbare TDP-down
25 W
PCI Express slots versie
3.0
Processor socket
LGA 1151 (Socket H4)
Processor lithografie
14 nm
Processor operating modes
64-bit
Stepping
B0
Bus type
DMI3
Codenaam processor
Coffee Lake
Maximaal aantal PCI Express-lijnen
16
PCI Express configuraties
1x16, 1x8+2x4, 2x8
Processorcode
SR3Y8
Tjunction
82 °C
Maximaal intern geheugen ondersteund door processor
64 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
2400 MHz
Geheugenbandbreedte ondersteund door de processor ( max)
37,5 GB/s
Geheugenkanalen ondersteund door processor
Dual
ECC ondersteund door processor
Ja

Geheugen

Intern geheugen*
8 GB
Intern geheugentype
DDR4-SDRAM
Maximum intern geheugen*
32 GB
Geheugenslots
2
Geheugen slots type
SO-DIMM
Kloksnelheid geheugen
2666 MHz
Geheugenlayout
1 x 8 GB

Opslagmedia

Totale opslagcapaciteit*
128 GB
Opslagmedia*
SSD
Totale capaciteit SSD's
128 GB
Aantal geïnstalleerde SSD's
1
SSD capaciteit
128 GB
SSD-vormfactor
M.2
Soort optische drive*
Nee
Geïntegreerde geheugenkaartlezer
Nee
Compatibele geheugenkaarten
Niet ondersteund

Grafisch

Aparte grafische adapter*
Nee
Discreet grafische adapter model*
Niet beschikbaar
Ingebouwde grafische adapter*
Ja
Familie ingebouwde grafische adapter
Intel® UHD Graphics
On-board graphics adapter model*
Intel® UHD Graphics 630
Basisfrequentie ingebouwde grafische adapter
350 MHz
Graphics on-board -adapter dynamische frequentie (max)
1100 MHz
Maximaal geheugen ingebouwde grafische adapter
64 GB
Aantal displays ondersteund (door on-board grafische adapter)
3
On-board grafische adapter DirectX-versie
12.0
On-board grafische adapter OpenGL versie
4.5
On-board grafische adapter ID
0x3E91
4K-ondersteuning
Ja

Audio

Ingebouwde luidsprekers*
Ja
Aantal luidsprekers
2
Gemiddeld vermogen
2 W

Camera

Ingebouwde camera*
Nee

Netwerk

Wifi*
Ja
Wifi-standaard*
Wi-Fi 5 (802.11ac)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Bluetooth*
Ja
Bluetooth-versie
5.0

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
1
Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1
Hoofdtelefoonuitgangen
1

Design

Kleur van het product*
Zwart
VESA-montage
Ja
Paneelmontage-interface
75 x 75,100 x 100 mm

Prestatie

Type product*
All-in-One tablet PC
Chipset moederbord
Intel® H310
Trusted Platform Module (TPM)
Ja

Software

Inclusief besturingssysteem*
Windows 10

Processor speciale functies

Intel® Turbo Boost Technology
Nee
Intel® Hyper Threading Technology (Intel® HT Technology)
Nee
Intel® Identity Protection Technology (Intel® IPT)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Quick Sync Video Technology
Ja
Intel® Clear Video HD Technology (Intel® CVT HD)
Ja
Intel® Clear Video-technologie
Ja
Intel® InTru™ 3D Technology
Ja
Intel® Smart Cache
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Trusted Execution Technology
Nee
Intel® Enhanced Halt State
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Secure Key
Ja
Intel® TSX-NI
Nee
Intel® Stable Image Platform Program (SIPP)
Nee
Intel® OS Guard
Ja
Intel® Software Guard Extensions (Intel® SGX)
Ja
Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID)
Ja
Intel® 64
Ja
Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Verpakkingsgrootte processor
37.5 x 37.5 mm
Ondersteunde instructie sets
AVX 2.0, SSE4.1, SSE4.2
Schaalbaarheid
1S
CPU configuratie (max)
1
Ingebouwde opties beschikbaar
Ja
Thermal solution specificatie
PCG 2015A
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Versie Intel® Identity Protection Technology
1,00
Versie Intel® Stable Image Platform Program (SIPP)
0,00
Versie Intel® Secure Key Technology
1,00
Intel® Virtualization Technology (VT-x)
Ja
Versie Intel® TSX-NI
0,00
ARK ID processor
129944

Energie

AC-adapter, vermogen
100 W
AC-adapterfrequentie
50-60 Hz
AC-adapter ingangsspanning
100 - 240 V

Pen

Inclusief pen
Nee

Gewicht en omvang

Breedte apparaat (met standaard)
525,9 mm
Diepte apparaat (met standaard)
52,6 mm
Hoogte apparaat (met standaard)
319,2 mm
Gewicht (met standaard)
5,2 kg
Breedte verpakking
625 mm
Diepte verpakking
196 mm
Hoogte verpakking
437 mm
Gewicht verpakking
7 kg

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 35 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84713000

Overige specificaties

3D
Nee
Afneembaar scherm
Nee
