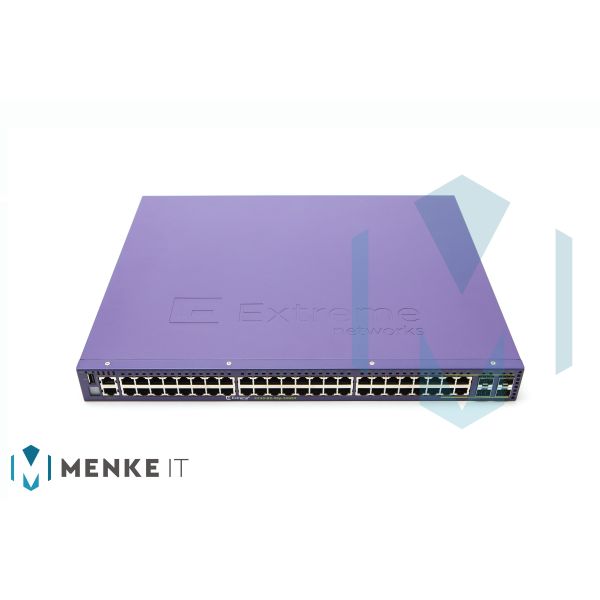

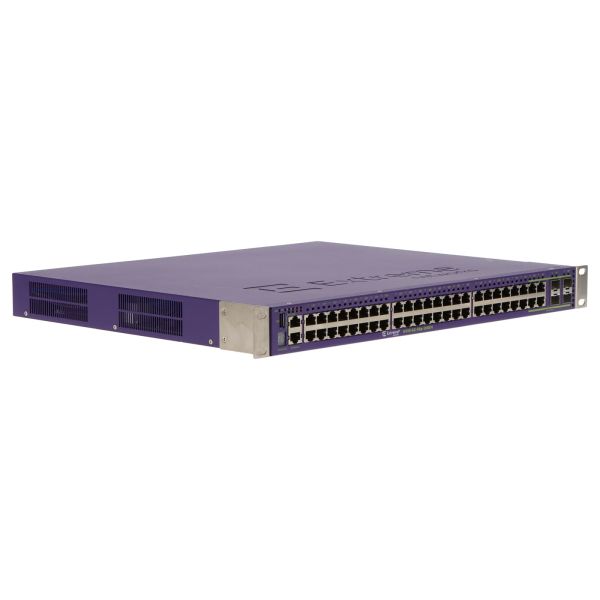

Extreme networks X440-G2-48P-10GE4, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, Ophangsysteem voor aan de muur

Niet op voorraad

Fabrikant Extreme Networks
MPN 16535
EAN 0644728165353

Extreme networks X440-G2-48P-10GE4 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Bordeaux rood

The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE-plus support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.

The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. Select X440-G2 Series switches can also be cloud managed via ExtremeCloud, Extreme Networks innovative single-pane subscription-based management solution.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
6
Aantal moduleslots SPF
2
Console port
RJ-45
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Full duplex
Nee
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
4092

Data-uitwisseling

Switchingcapaciteit*
130,9 Gbit/s
Verzending snelheid
176 Mpps
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja

Design

Rack-montage*
Ja
Kleur van het product
Bordeaux rood

Design

LED-indicatoren
Ja
Ophangsysteem voor aan de muur
Ja

Prestatie

Type processor
Ja
Frequentie van processor
1000 MHz
Type geheugen
DDR3-SDRAM
Intern geheugen
1024 MB
Flash memory
4096 MB

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
961 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
48

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
0 - 60 °C

Gewicht en omvang

Breedte
441 mm
Diepte
368,5 mm
Hoogte
44 mm
Gewicht
6,6 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
