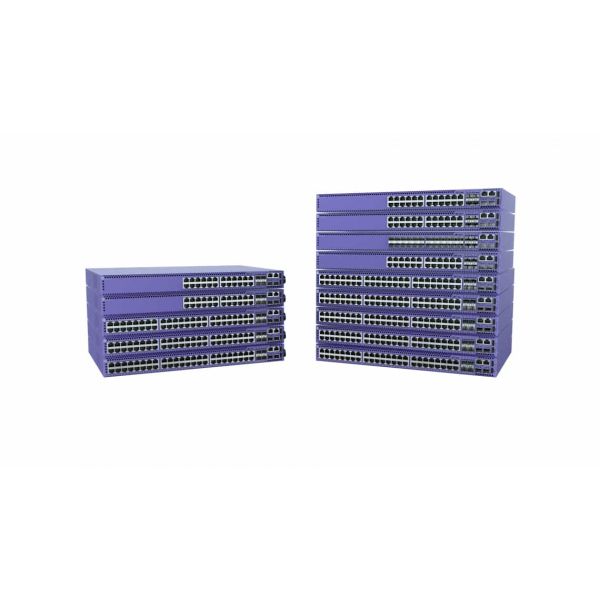

Extreme networks 5420F-16W-32P-4XE netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Violet

Extreme networks 5420F-16W-32P-4XE, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage

Niet op voorraad

Fabrikant Extreme Networks
MPN 5420F-16W-32P-4XE
EAN 0644728052004
€ 7.843,00 excl. BTW

Extreme networks 5420F-16W-32P-4XE netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Violet

The 5420 Series are high-performance, feature-rich edge switches designed for the next-generation digital enterprise. The 5420 Series universal hardware design provides end-to-end secure network segmentation, in addition to advanced policy capabilities, and offers a user-selectable choice of Extreme’s flagship switch operating systems. This makes the 5420 a uniquely flexible platform that can be deployed across a range of edge and wiring-closet environments.
The 5420 Series consists of 14 models split across 5420M and 5420F families to address a variety of end-user needs and price points. 5420M models offer field-replaceable power supplies and fans, and 4 x 1/10/25Gb built-in uplink ports. 5420F models come with fixed power supply, fixed fan(s), 4 x 1/10Gb built-in uplink ports, with support for a second optional field-replaceable power supply.
Both 5420M and 5420F families include 24 and 48-port 1 Gigabit models, as well as 1/2.5 Gigabit multi-rate models. Both also provide 30/60/90W PoE capabilities making them an ideal wired backend for wireless APs or in support of next gen power Ethernet devices, such as digital signage, pantilt-zoom cameras, smart lighting, or point-of-sale terminals.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
4

Netwerk

Netwerkstandaard*
IEEE 802.3at, IEEE 802.3bt
10G support*
Ja
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
256 Gbit/s
Verzending snelheid
190,5 Mpps

Design

Rack-montage*
Ja
Kleur van het product
Violet

Energie

Stroombron*
AC
Redundante voeding
Ja
Vermogensverbruik (max)
2150 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja

Gewicht en omvang

Gewicht
5,36 kg
