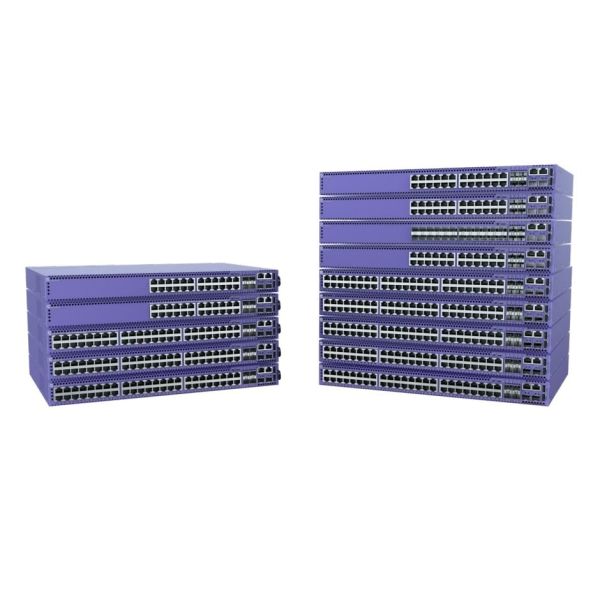

Extreme networks ExtremeSwitching 5420F, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Niet op voorraad

Fabrikant Extreme Networks
MPN 5420F-8W-16P-4XE
EAN 0644728051991

Extreme networks ExtremeSwitching 5420F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Paars

Your network is critical to your enterprise. Ensuring it can handle
the ever-increasing demands for secure and efficient connection
of next-generation devices and applications is a key imperative.
The ExtremeSwitching™ 5000 Series can address these demands
with hardware agility and reduced cost for your network.
The 5000 Series deliver significant advantages over the older
generation of Ethernet Routing Switches (ERS) equipment they
were designed to replace, including

Future-Ready Features
1/2.5/5 multi-gig access along with
30W/60W/90W always-on PoE provides seamless support
for WiFi-6 and next-gen IoT devices.

Cloud-Management
Simplified operations and
management, including operating system (OS) selection
and bulk license activation with ExtremeCloud IQ.

End-to-End Security
256-bit MACsec link encryption on
access ports, as well as uplinks, ensures the highest level
of security.

Superior Performance
Built-in wire-speed
10Gb/25Gb/40Gb*/50Gb* uplinks for high-bandwidth
demands (*available on 5520).

Multi-use case Universal Platform
A user-selectable
Extreme network operating system on the 5000 Series
allows for increased migration flexibility.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
Locatie-instellingen (CLI) configureren
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal 2.5G Ethernet (koper)poorten
16
Aantal Combo SFP-poorten
2
Console port
RJ-45/Micro-USB
Aantal SFP28-poorten
4
Aantal USB 2.0-poorten
2
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.3at, IEEE 802.3bt
10G support*
Nee
Full duplex
Ja
IP routing
Ja
Half-duplex
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto-sensing
Ja
VLAN=ondersteuning
Ja

Beveiliging

Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
256-bit WEP, SNMP

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Ondersteunde netwerkprotocollen
IPv4, IPv6

Design

Rack-montage*
Ja
Stapelbaar*
Ja

Design

Kleur van het product
Paars
LED-indicatoren
Ja
Certificering
CISPR 32 Class A (International Emissions) AS/NZS CISPR32 CISPR 24 Class A (International Immunity) IEC 61000-4-2 / EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria B IEC 61000-4-3 / EN 61000-4-3 Radiated Immunity 10V/m, Criteria A IEC 61000-4-4 / EN 61000-4-4 Transient Burst, 2 kV, Criteria B IEC 61000-4-5 / EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria B IEC 61000-4-6/ EN 61000-4-6 Conducted Immunity, 0.15-80 MHz, 10V/ rms, 80%AM (1kHz), Criteria A IEC/EN 61000-4-11 Power Dips & Interruptions, >30%, 25 periods, Criteria C

Prestatie

sFlow
Ja
Fanloos
Ja

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
Aantal voedingen
1
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
6.6 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
90 W
Totaal Power over Ethernet (PoE)-budget
2880 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
441 mm
Diepte
358,2 mm
Hoogte
44 mm

Verpakking

Breedte verpakking
558 mm
Diepte verpakking
476 mm
Hoogte verpakking
160 mm
Gewicht verpakking
6,35 kg

Overige specificaties

Netvoeding
600 W
